UniStrip 2018E Electric Cable Wire Stripping Machine

    • The UniStrip 2018E is an electrical cable wire stripping machine. It can process single conductor and inner conductors of multi-core wires.
    • Operating the machine is extremely simple. After insertion, the wire makes contact with the sensor, then actuates the visual controllable stripping process.

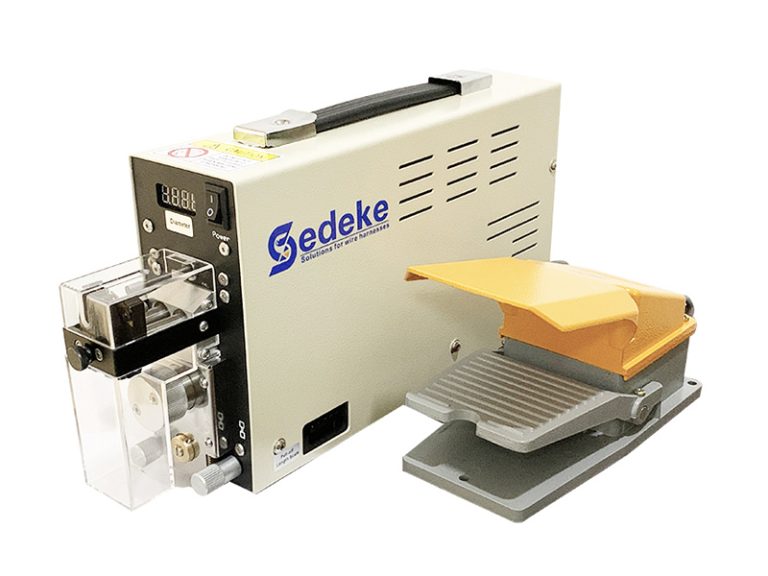

    • The automatic cable stripping machine can also be used with a foot pedal.

Send email Order now
Share
Product Series
Cut Strip Cut Strip Crimp Strip Crimp Cut Strip Crimp Heat Shrinking Tape Processing Quality Wind Peripherials Automotive Tools

FEATURE

  • The UniStrip 2018E is an electrical cable wire stripping machine. It can process single conductor and inner conductors of multi-core wires.
  • Operating the machine is extremely simple. After insertion, the wire makes contact with the sensor, then actuates the visual controllable stripping process.
  • The automatic cable stripping machine can also be used with a foot pedal.

PARAMETER

TypeElectrical
Wire size range0.3-4mm²
Max. Outer diameter4mm
Stripping length1-20mm
Partial stripYes
Pull-off length6-20mm
Power supplyAC 220V  50/60Hz
Weight5 Kg
Dimensions370*90*180mm

APPLICATION
