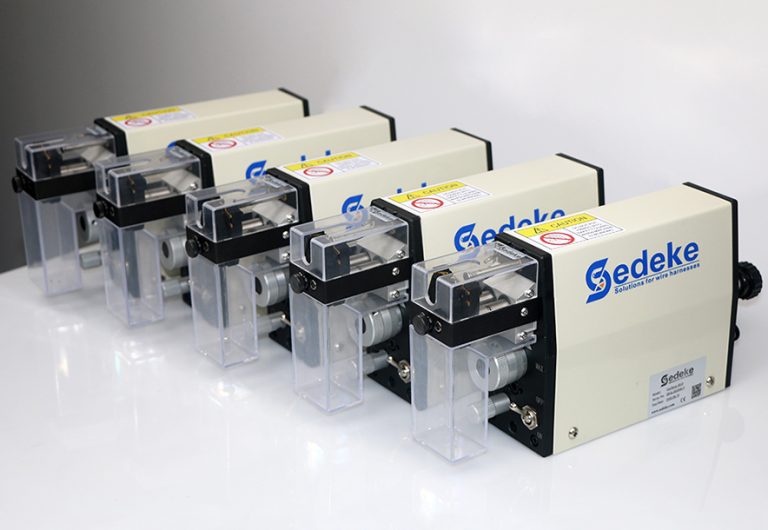

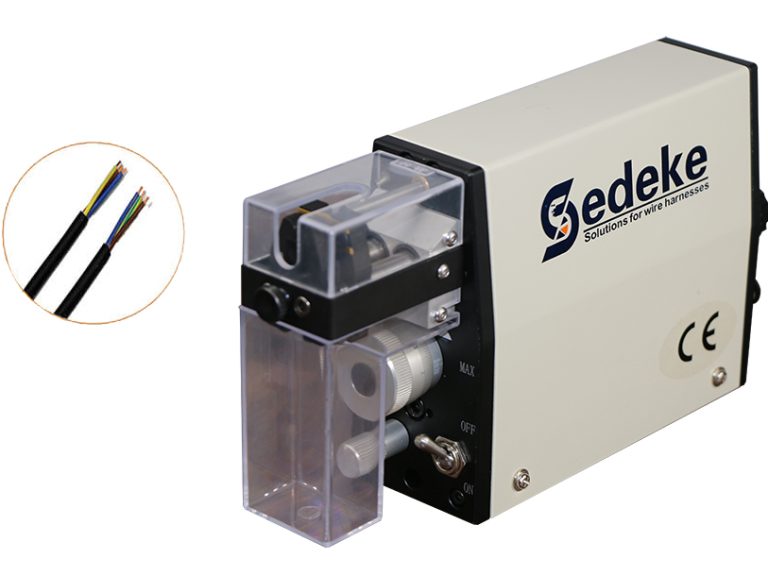

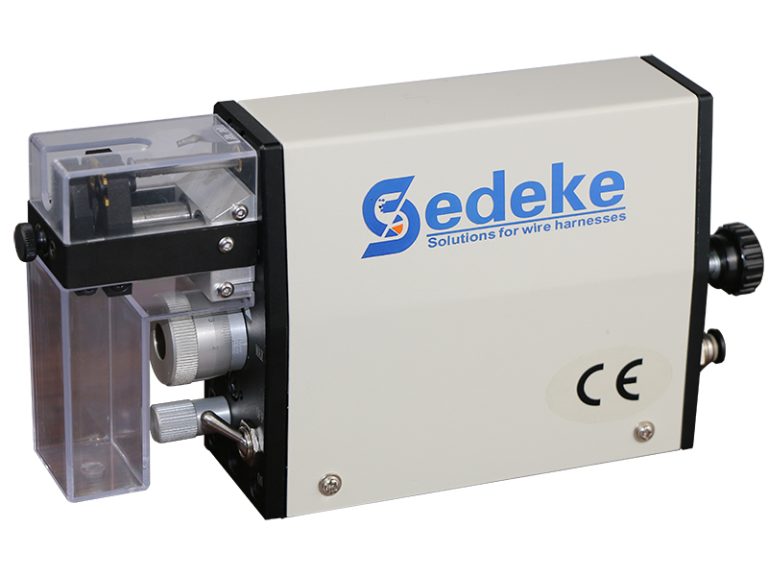

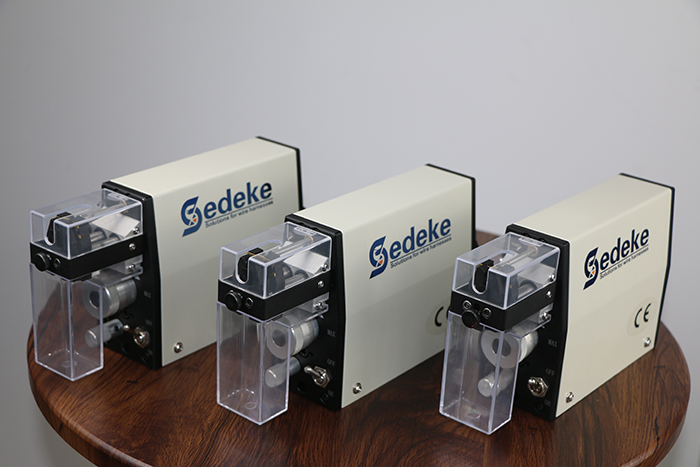

UniStrip 2016 Pneumatic Wire Stripping Machine

It is a pneumatic wire stripping machine for stripping discrete wires and small multi-conductor cables.
Operating the wire stripping machine is extremely simple.
Pneumatic control, easy operation.

Share

FEATURE

It is a pneumatic wire stripping machine for stripping discrete wires and small multi-conductor cables.
Operating the wire stripping machine is extremely simple.
Pneumatic control, easy operation.

PARAMETER

Wire Size RangeAWG 30–12 (0.05–3 mm²)
Precision of Diameter Setting0.01 mm (0.001")
Max. Outer Cable Diameter (partial strip / full strip) Strip3.2/3.2 mm (0.12"/0.12")
Length (partial strip/full strip)1–20/20 mm (0.04–0.78" / 0.78")
Graduated Full Strip Increments0.5 mm (0.019")
Graduated Partial Strip Increments2.0 mm (0.078")
Cycle Time (max. stripping length)ca. 0.3 s
Stripping BladeV-blades
Compressed Air5–6 bar (75–90 psi)
Compressed Air Consumption
(Operation pressure at 6 bar/90 psi)
0.28 l/cycle
Noise Level (equivalent permanent sound pressure level)< 75 dB (A)
Dimensions (L x W x H)265 x 70x135 mm (10.4 x 2.8x5.3")
Weight (Net/Gross)2.0 kg/2.4 kg (4.4/5.3 lb.)

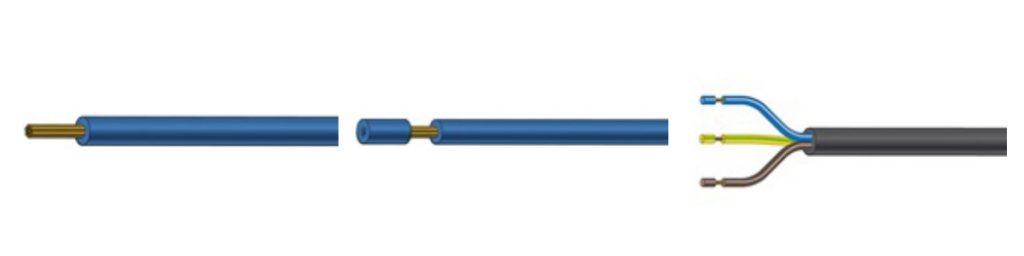

APPLICATION
