SAT-MS6 Mechanical Crimping Applicator

  • Model: SAT-MS6
  • Press stroke: 40 or 30 mm (1.57“ or 1.18“)
  • Cross section range: 0.08 – 10 mm 2 (28 – 7 AWG)
  • Terminal thickness: < 1,2mm (<0,047″)
Share

DESCRIPTION

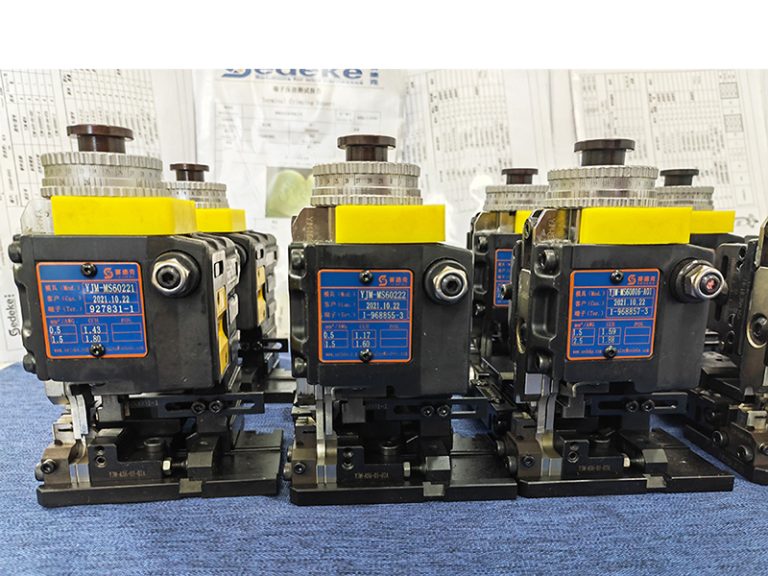

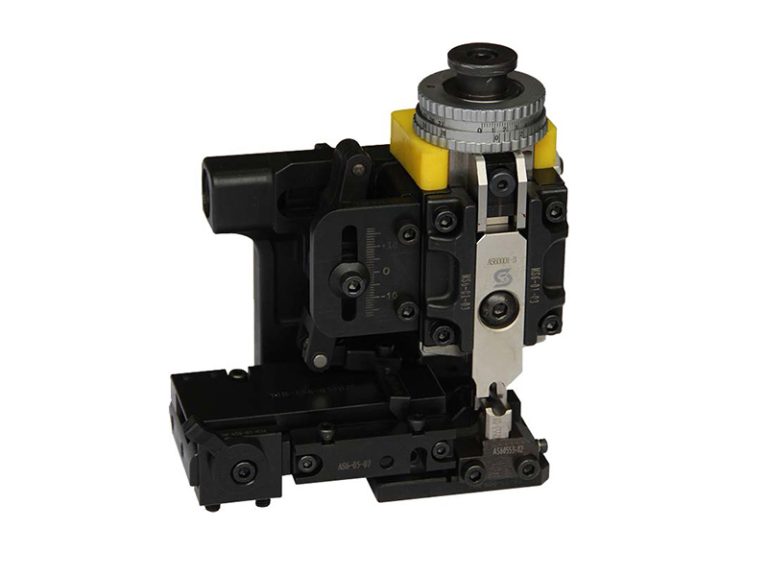

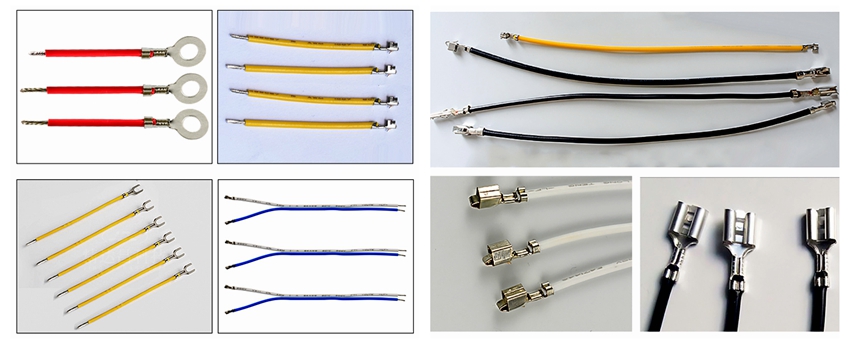

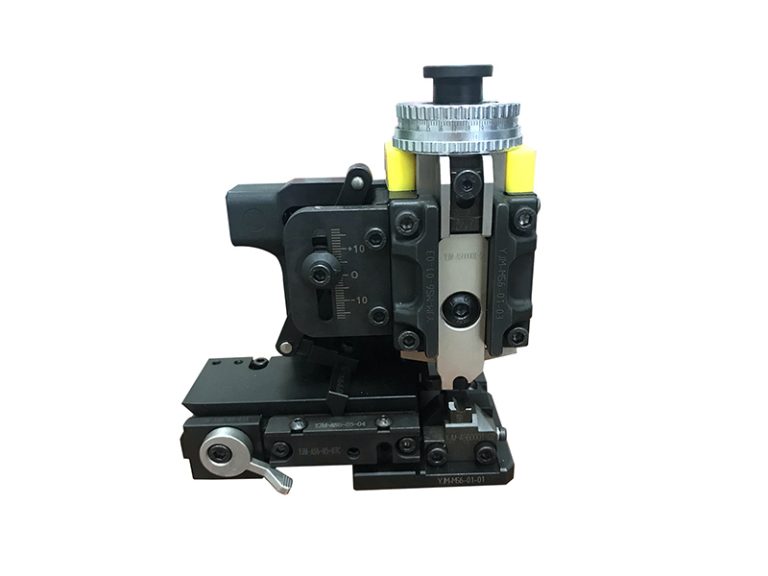

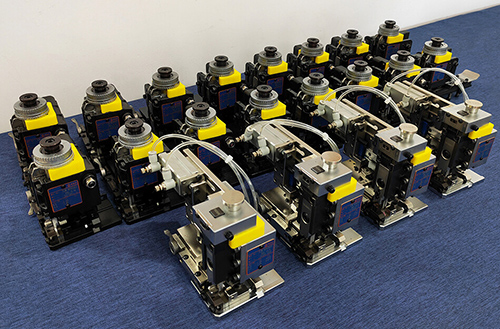

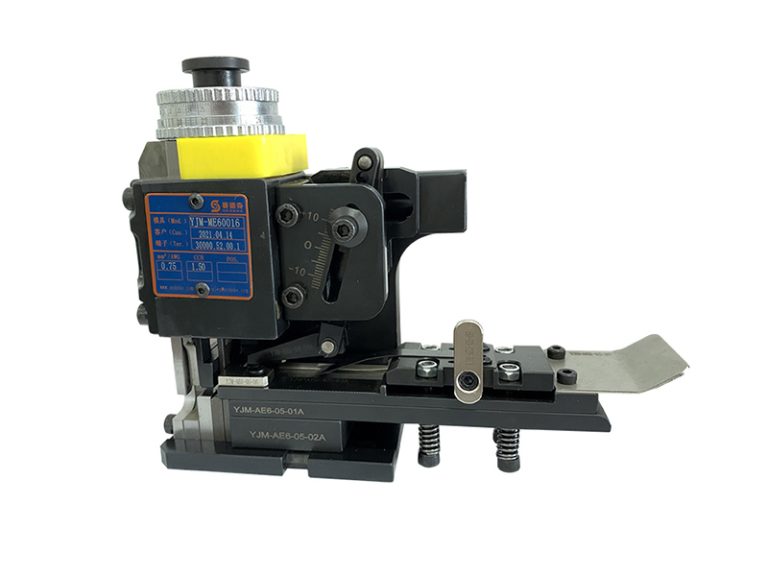

New concept of applicator body made of cast iron casting that supports customization side or front, easy replacement of specific parts by fastening the front of the pieces, broad accessibility and ease for a variety of settings.

• For linked terminals, with thickness < 1.2mm., terminal pitch > 27mm.
• Mechanical Side feed or Rear feed.
• Wire section between 0 and 10mm².
• Feeding system for linked terminals on a reel to be unrolled left to right.
• Can be supplied either with a continuous or a four-pad regulating head.
• Non-resettable 7-digit cycle counter.
• Easy replacement of crimpers and anvils.
• Can be used in both manual and automatic configuration.

PARAMETER

Feed typeMechanical
Press stroke40 or 30 mm (1.57“ or 1.18“)
Cross section range0.08 – 10 mm 2 (28 – 7 AWG)
Crimp height adjustment (wire & insulation)Increment: 0.025 mm (0.001”)
Max.: 2.0 mm
Terminal pitch rangeMin.: 1 mm (0.04”)
Max.: 28 mm (1.10”)
Terminal thickness< 1,2mm (<0,047"))
Weight3.9kg (8,6 lbs.)
Base design3-point base clamp with male T-shaped ram adapter
Important noteSEDEKE recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
