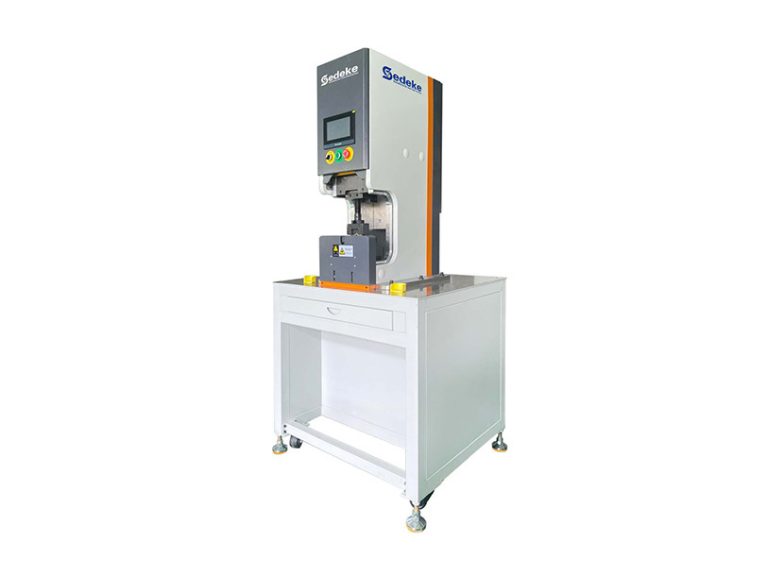

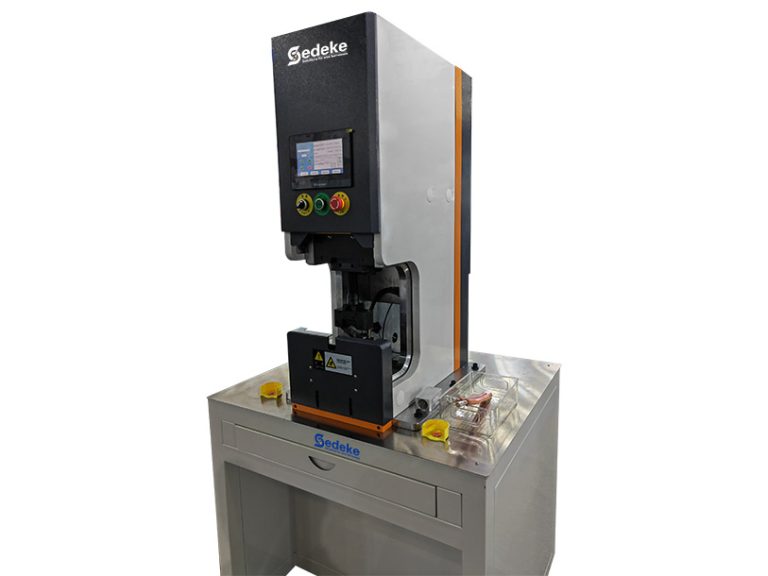

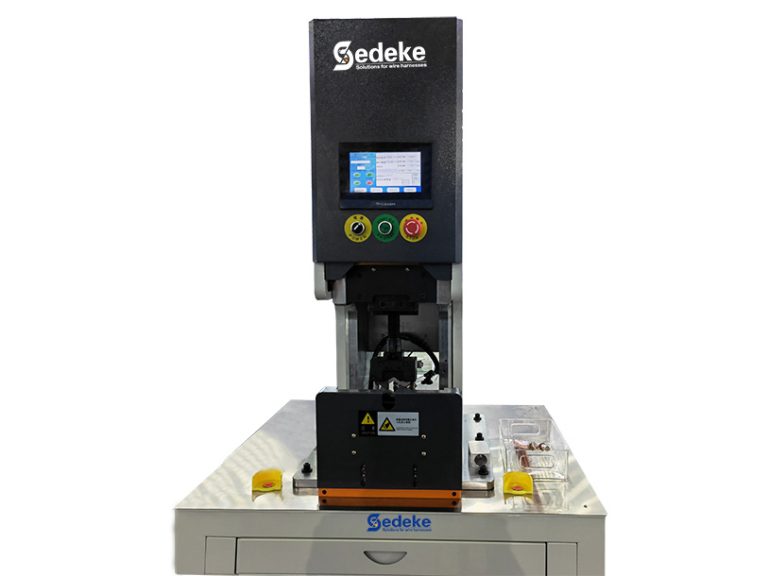

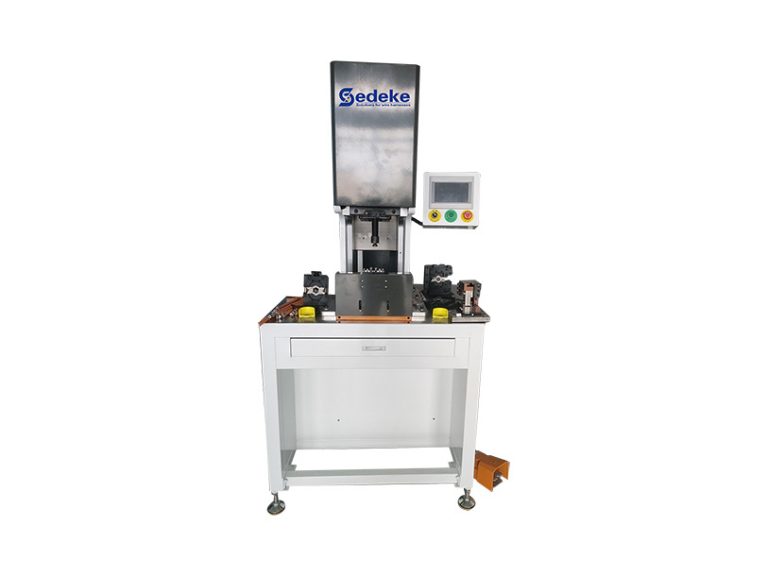

TM Series Intelligent Servo Terminal Crimping Machine

  • Start method:Touch Display / Foot Switch
  • Operation method:Touch type, automatic adjustment of crimping height
  • Applicable applicators:Hexagonal, quadrilateral, B-shaped applicators, etc.
Share

FEATURE

1. Crimping precision control: 1μm optical encoder;
2. Past crimping data can be stored to realize quality management tracking;
3. The formula database can be established according to the product, and the material
number can be switched conveniently and quickly;
4. It can quickly switch between different terminal height crimping.

Support customization: It can connect to LAN to connect to MES system;
Support customization: It can be connected with an external code scanning gun to
realize the connection with the ERP management system.

Start method Touch Display / Foot Switch
Operation method Touch type, automatic adjustment of crimping height
Applicable applicators Hexagonal, quadrilateral, B-shaped applicators, etc.

( *The content of the mark needs to be explained before placing an order in
order to confirm the corresponding price.)

PARAMETER

ModelTM-10TTM-20TTM-30TTM-40T
Stoke40mm50mm50mm75mm
Process range2.5-35mm²2.5-95mm²2.5-180mm²2.5-300mm²
Crimp accuracy0.3mm±0.03mm±0.03mm±0.03mm
Capacity1.5KW2.6KW 15NM2.6KW 15NM3KW 18NM
Weight230KG450KG450KG670KG
Dimension540X350X785mm560X400X985mm560X400X985mm700X480X1225mm
Reducer1:7.51:101:151:15
Powe supplyAC 220V 50/60Hz
Start methodTouch Display / Foot Switch
Operation methodTouch type, automatic adjustment of crimping height
Applicable applicatorsHexagonal, quadrilateral, B-shaped applicators, etc.

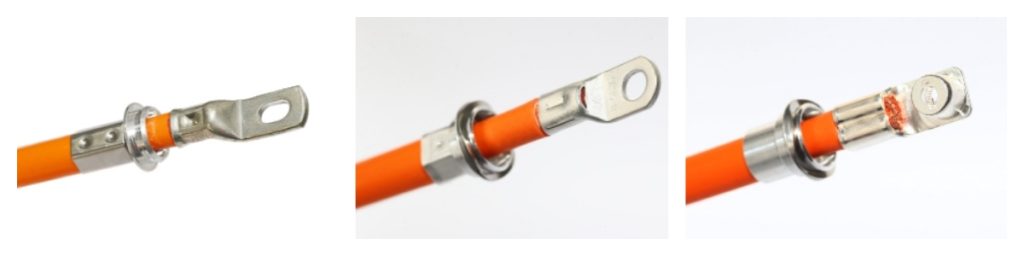

APPLICATION
