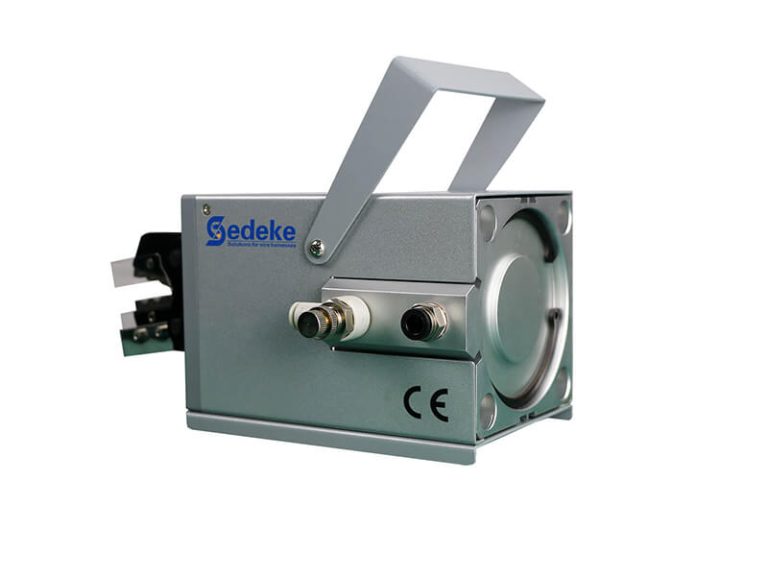

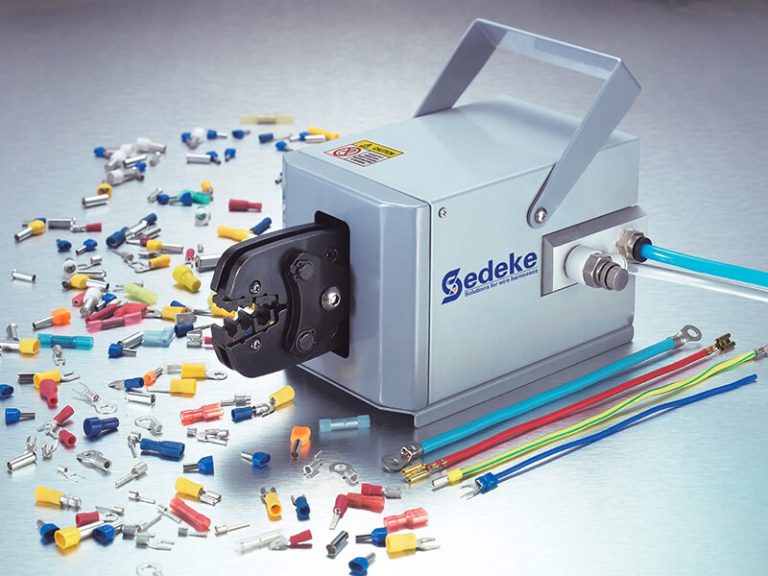

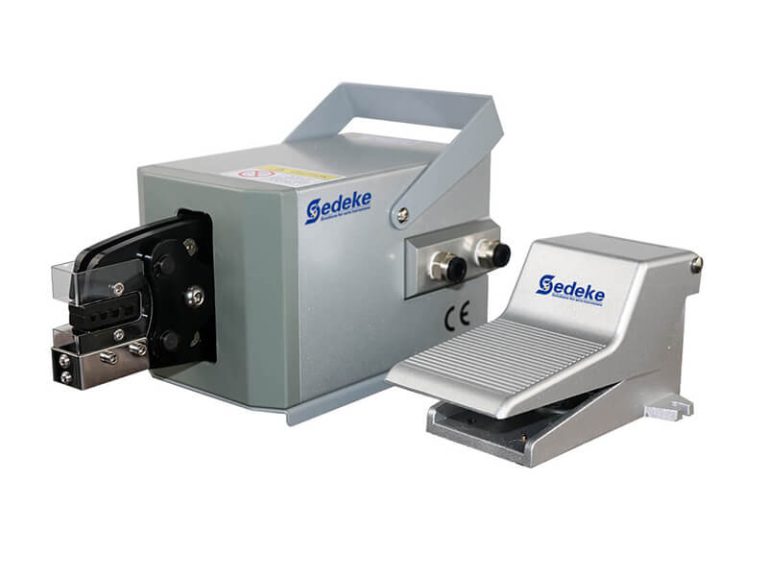

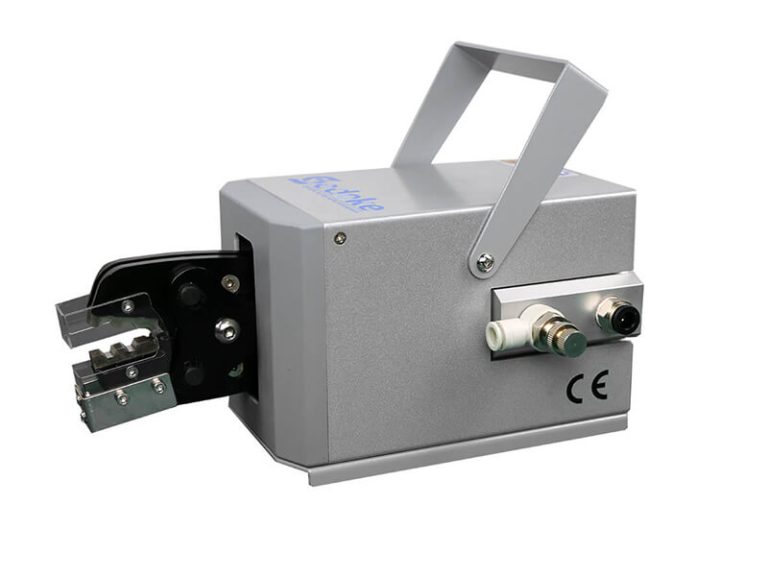

TM-P120 Pneumatic Type Terminal Crimping Machine

  • Model: TM-P120
  • Crimping range: 0.5-16mm²
  • Air pressure range: 0.5-0.8MPa
  • Output: 2.0T
Share

FEATURE

Typical Features Of Pneumatic Terminal Crimping Machine:
1. Automates your hand tools

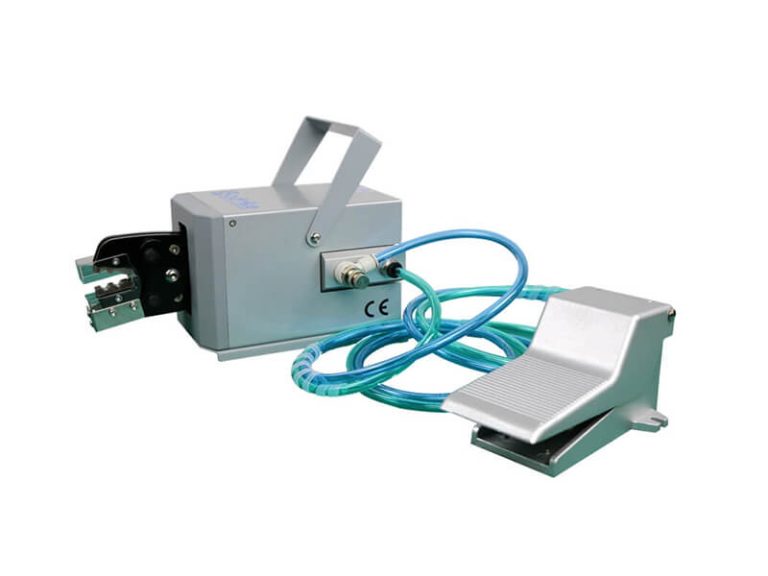

2. Eliminates operator hand fatigue-foot pedal controls the unit
3. Low cost alternative to hand crimping tools
4. 10 time faster than manual crimping
5. Multi-function operations
6. Portable and lightweight
7. Small bench top footprint

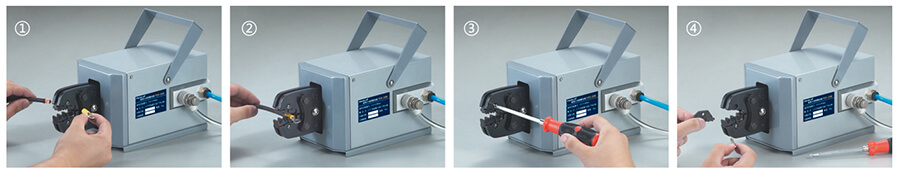

How To Operate Pneumatic Terminal Crimping Machine

(1)    Place the crimping terminal in the corresponding crimping die sets.
(2)    Place the stripped wires into the terminals, step down the foot air valve, and release the air valve after the completion of the crimping.
(3)    When replacing the crimping die sets, the air source shall be shut off to avoid the risk caused by the improper operation. Remove the die sets and fasten the screws using screwdriver.
(4)    Replace with the required crimping die sets, and then fasten the screws again.

PARAMETER

ModelTM-P120
Crimping range0.5-16mm²
Air pressure range0.5-0.8MPa
Output2.0T
Weight6kg
Dimensions275 x 128 x 145 mm

APPLICATION
