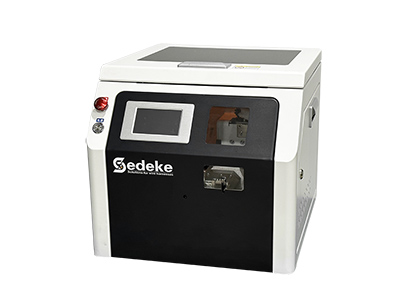

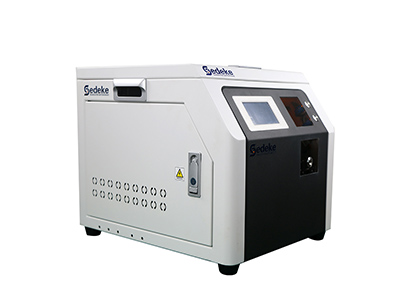

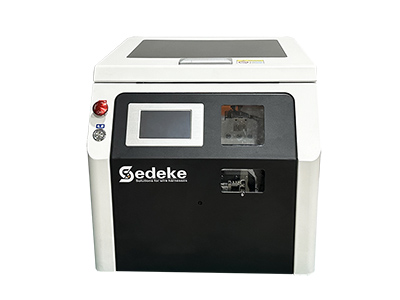

TM-E140 Wire Strip And Ferrule Crimp Machine

  • Model: TM-E140
  • Productivity: 2.5s/ one ferrule
  • Crimping shape: Quadrilateral / Hexagon
  • Applied Specification: 0.3mm²-6.0mm² (terminal conduit length less than 12mm)
Share

FEATURE

1.Complete closed design; safe and reliable operation;
2. Touch screen operation; electric adjusting stripping depth and length;
3. Automatic supply terminal, terminal four-side crimping, no need to change crimping die;
4. Agile automatic trigger; fast and convenient;Semi-automatic operation;
5. Stripping, piercing terminals, crimping terminals are completed in 2.5 seconds;
6. Applied for tubular terminal from 0.3mm² to 4mm²;
7. Combined with the wire stripping machine can greatly improve efficiency.

PARAMETER

Productivity2.5s/ one end / one terminal
Crimping shapequadrilateral / hexagon
Applied Specification0.3mm²-6.0mm² (terminal conduit length less than 12mm)
Power supplyAC220V/50HZ (single phase)
Air pressure0.6-0.8Mpa (Please use clean and dry air source)
Weight68kg
Dimensions(LxWxH)430mmx505mmx425mm

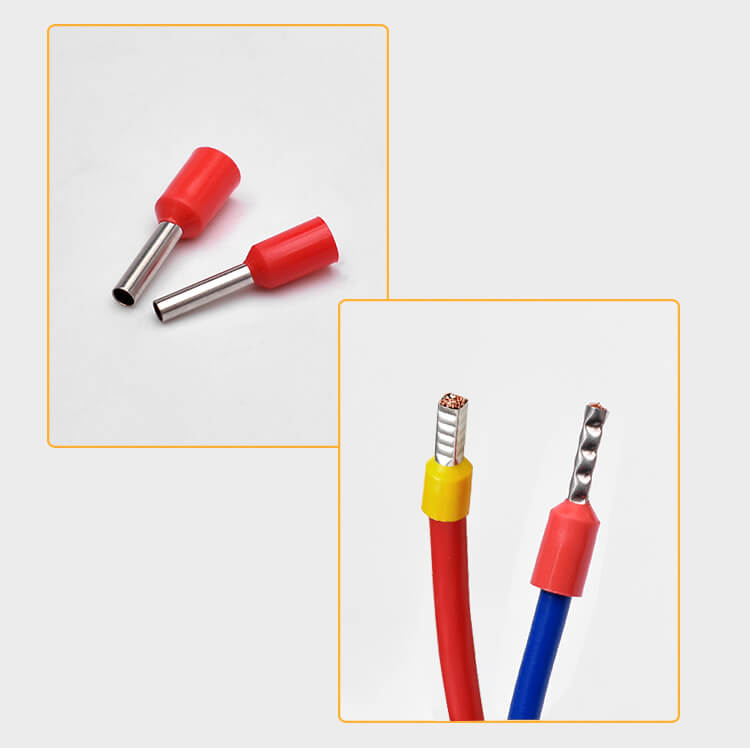

APPLICATION
