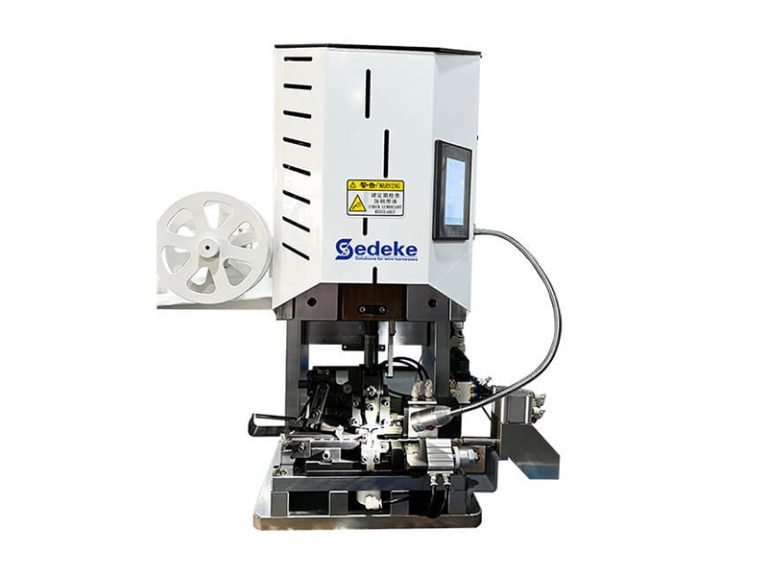

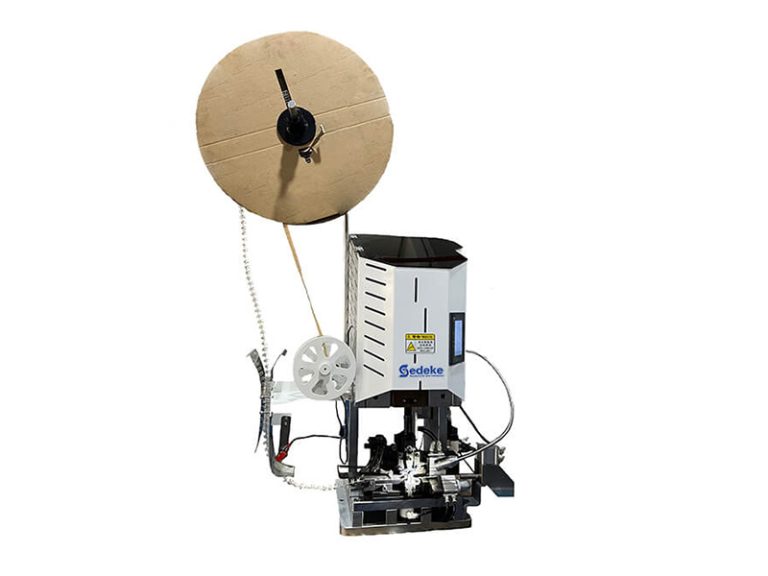

TM-80SCS servo wire stripping and terminal crimping machine is a type of automated machine used in the electrical and electronics industry for stripping insulation from wires and crimping terminals onto the exposed wire ends. The machine uses advanced servomotor technology to achieve precise control of the stripping and crimping process, resulting in consistent and accurate results for high volume wire processing tasks.
| Model | TM-80SCS |
| Power supply | 220V 50Hz |
| Air source | 0.5～0.6Mpa |
| Dimension | L550*W500*H890 |
| Net weight | 185KG |
| Applicable wire diameter | 0.8-8.0mm |
| Applicable wire | AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc. |
| Stripping length | 1.0～8.0mm |
| Stripping tolerance | 0.05～0.1mm |
| Crimp height tolerance | ±0.015mm |
| Crimp terminal | open chain terminal; horizontal |
| Crimping capacity | 8T |
| Press stroke | 30mm |
| Productivity | 1800-2200PCS/hour |
