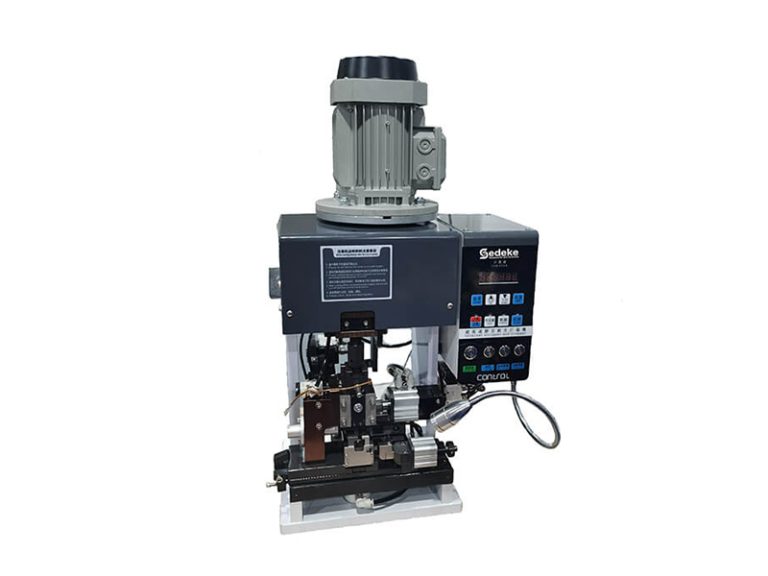

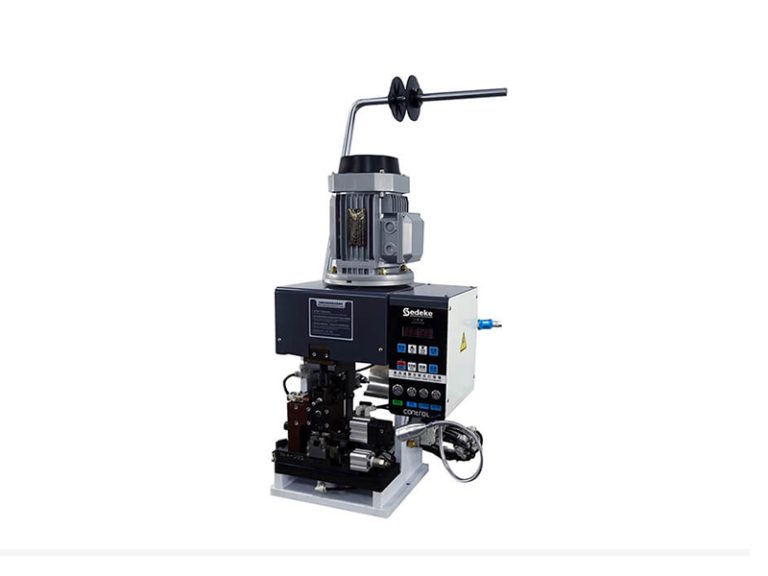

TM-30SC is a super mute wire stripping and terminal crimping machine. This machine adopts advanced electronic control technology, equipped with high-precision control module and transmission mechanism, so that the stripping and crimping can be completed at one time. It has the characteristics of low noise, low power consumption and high efficiency. For extremely thin wires, the processing of multi-core shielded wires has obvious effects.
The wire stripping action of this machine is driven by the cylinder, with fast action speed and accurate positioning. The waste after stripping is vacuum sucked, which is clean, convenient and simple. The press is driven by gear reduction, and the pressure is highly accurate. For the operation of raw hands, the machine can change the overall speed by adjusting the air valve, so as to adapt to the proficiency of the operator.
| Model | TM-30SC |
| Power supply | 200V-240V 50/60Hz |
| Air source | 0.5～0.6Mpa |
| Dimension | 500*420*700mm |
| Net weight | 85KG |
| Applicable wire size | AWG32#-AWG14# |
| Applicable wire | AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc. |
| Stripping length | 1.0～8.0mm |
| Stripping tolerance | 0.05～0.1mm |
| Position tolerance | 0.05～0.1mm |
| Crimp terminal | open chain terminal; side feed & end feed |
| Crimping capacity | 3T |
| Press stroke | 35mm |
| Power | 400W |
| Number of strokes | 2500-3500PCS/hour |
