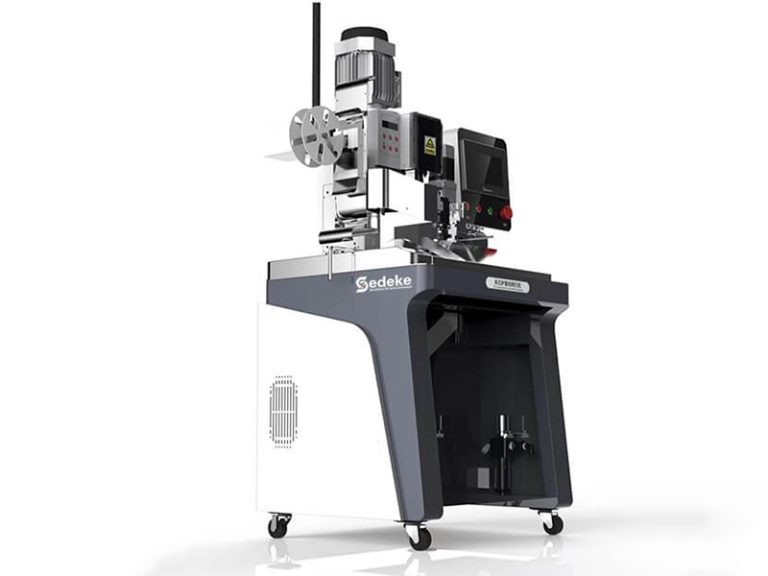

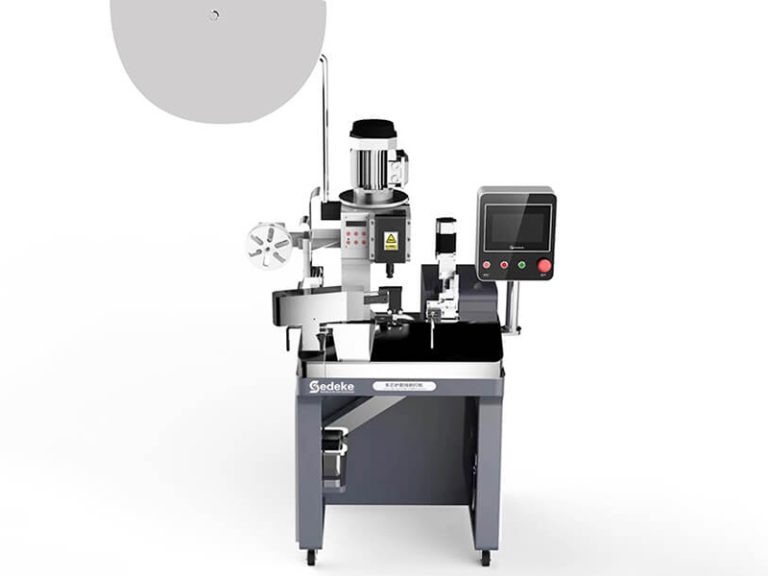

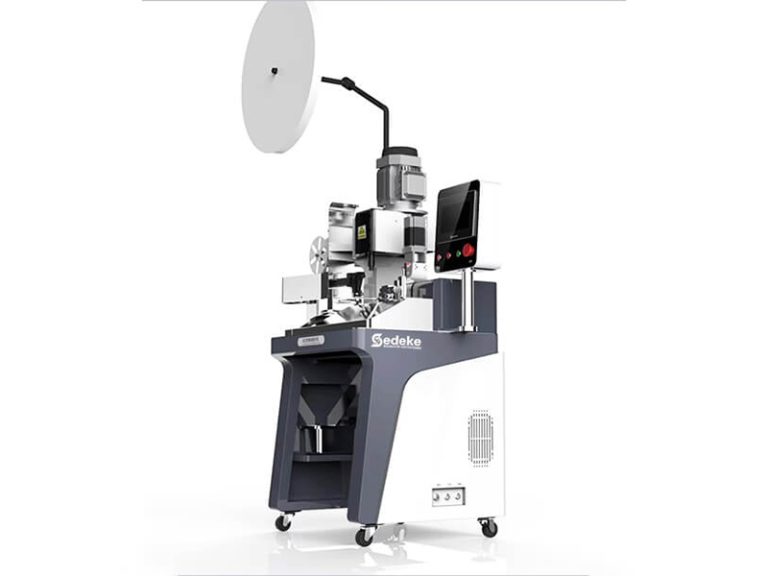

TM-20SCM Automatic Multi-core Cable Stripping and Crimping Machine

  • Model: TM-20SCM
  • Air source: 0.4~0.6Mpa
  • Applicable wire diameter: Φ0.8mm-φ4mm
  • Max. Number of core wires: 12 core sheath wires
Share

FEATURE

This TM-20SCM machine is mainly used for stripping of sheathed wires and continuous crimping of terminals. Both stripping and crimping displacement are driven by servo motors and screw drives to improve precision and to ensure high-quality product requirements. This machine adopts a color touch screen, the interface is simple and intuitive, and the parameters are easy to adjust.

PARAMETER

ModelTM-20SCM
Power supply200V-240V  50/60Hz
Air source0.4~0.6Mpa
Dimension850*550*1350mm
Net weight150KG
Applicable wire diameterΦ0.8mm-φ4mm
Max. Number of core wires12 core sheath wires
Min. Strip length for outer jacket2-4 core wire: 15mm / 5-10 core wire: 25mm
Applicable wireAV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.
Stripping length1.0~10.0mm
Stripping tolerance0.05~0.1mm
Position tolerance0.05~0.1mm

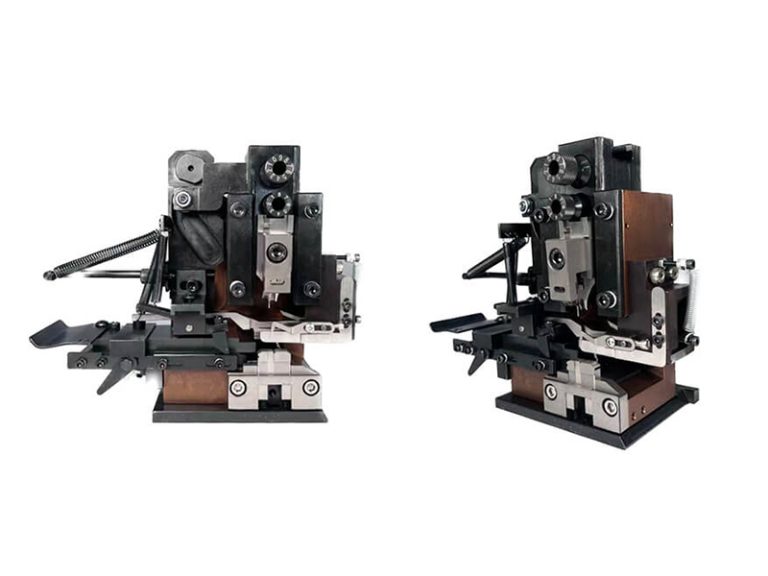

Crimp terminalopen chain terminal; side feed & end feed
Crimping capacity2T
Press stroke30mm
Power1500W
Productivity5500PCS/hour
