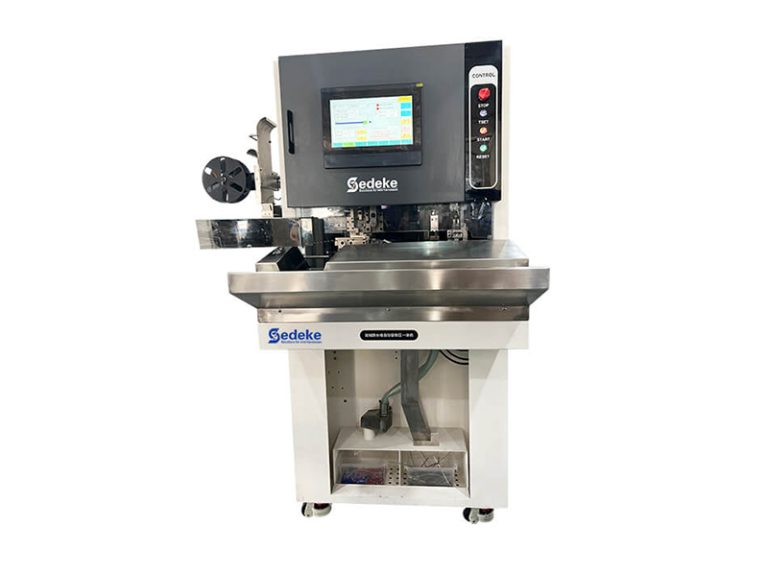

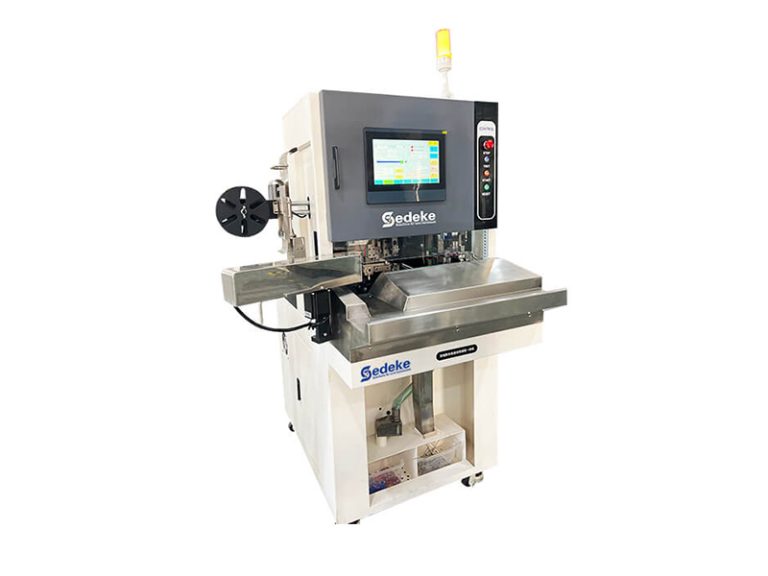

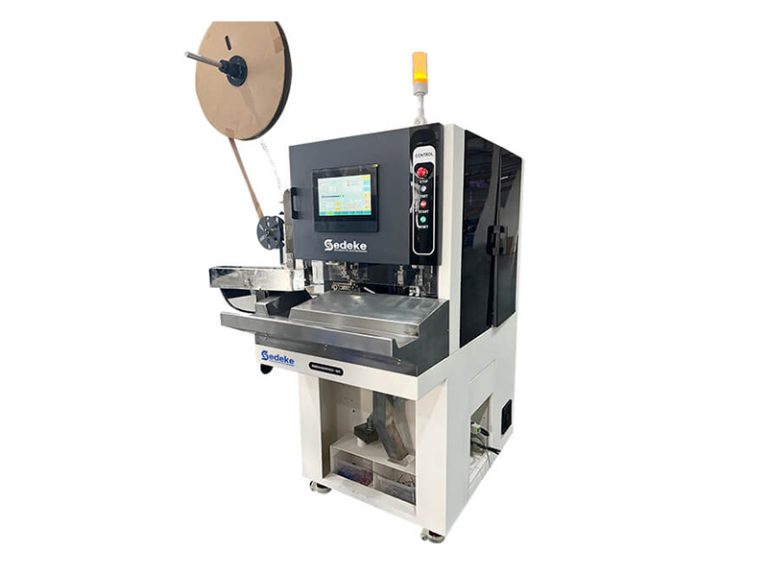

TM-200SC Automatic Strip and Weather Pack Terminal Crimp Machine

  • Model: TM-200SC
  • Power supply: 220V-240V 50/60Hz
  • Air source: 0.4~0.6Mpa
  • Stripping length: 1.0~10.0mm
Share

DESCRIPTION

This TM-200SC machine is mainly used for processing waterproof plug wire harness. Thread waterproof plug, stripping wire, crimping terminal, multi-tasking in one for processing.
Save space, save process, save time to meet customer needs.

FEATURE

1. The stripping length can be flexibly adjusted according to customer needs
2. The depth of the waterproof plug is adjusted according to the distance between the stripping position and the waterproof plug
3. The machine is driven by a high-efficiency servo motor, high-speed stamping, and can also achieve high silence
4. The stripping slide table is driven by a servo motor and driven by a screw to ensure accurate stripping length
5. The cutter is driven by a servo motor, and the screw drive mode
6. The waterproof plug feeding structure adopts vibrator discharge, compressed air feeding, non-traditional pin feeding method, so there is no risk of waterproof plug damage, and there are no consumable parts.

PARAMETER

ModelTM-200SCTM-200SCT
FunctionStrip and crimp 1 wire at a timeStrip and crimp 2 wires at a time
Power supply200V-240V  50/60Hz
Air source0.4~0.6Mpa
Dimension950*850*1650mm1160*930*1750mm
Net weight250KG
Applicable wire diameterΦ1mm-φ4mm
Min. strip length for outer jacket22mm25mm
Applicable wireAV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.
Stripping length1.0~10.0mm
Stripping tolerance0.05~0.1mm
Position tolerance0.05~0.1mm
Crimp terminalopen chain terminal; side feed
Crimping capacity2T or 4T
Press stroke40mm
Power1500W1800W
Productivity1200-1500PCS/hour1800-2000PCS/hour
