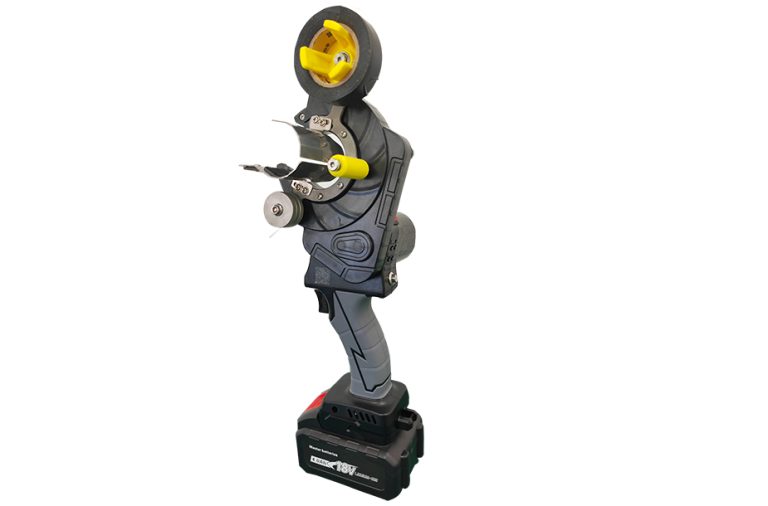

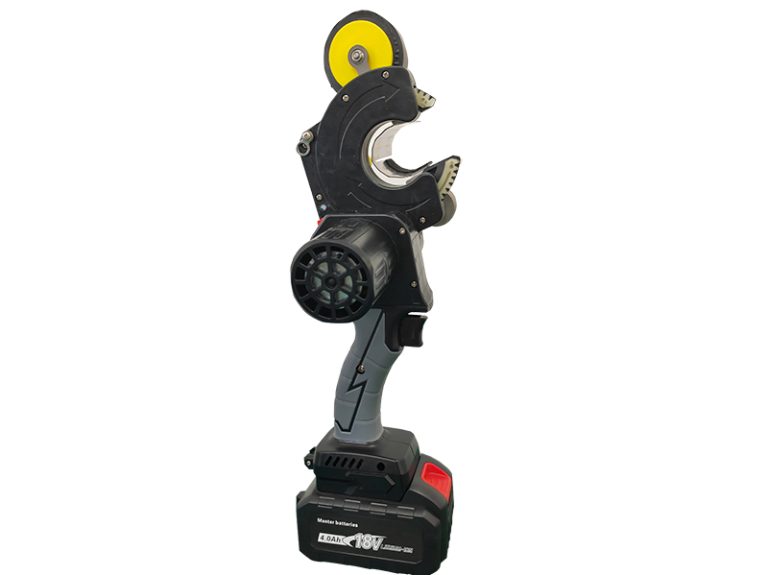

STP-F Hand-held Lithium Battery Tape Wrapping Machine

  • Lithium battery rechargeable hand-held tape wrapping machine, through the use of button operation to efficiently wind and encapsulate the wire harness.
  • The winding speed is adjustable, the machine has speed adjustment gears, 150-500 revolutions per minute, and can be used at different speeds according to requirements.
  • The wire harness coating process is smooth, and the appearance is beautiful and smooth.
  • The machine is equipped with a hidden knife edge device and an emergency brake device to ensure the safety of operation and use.

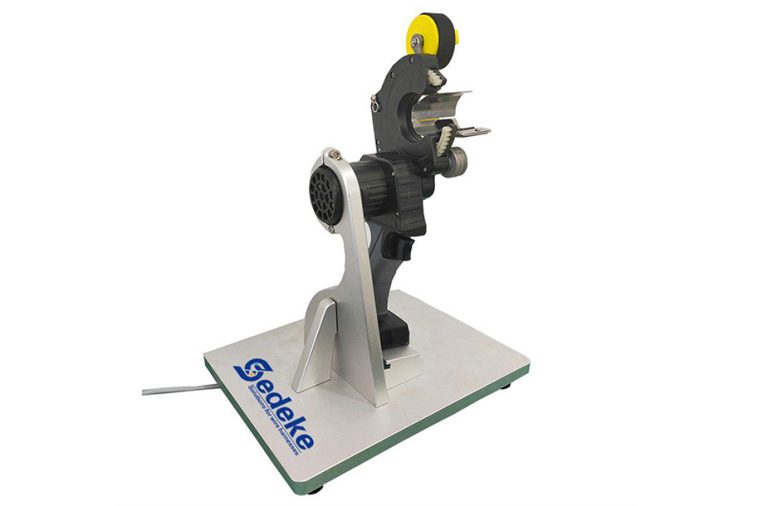

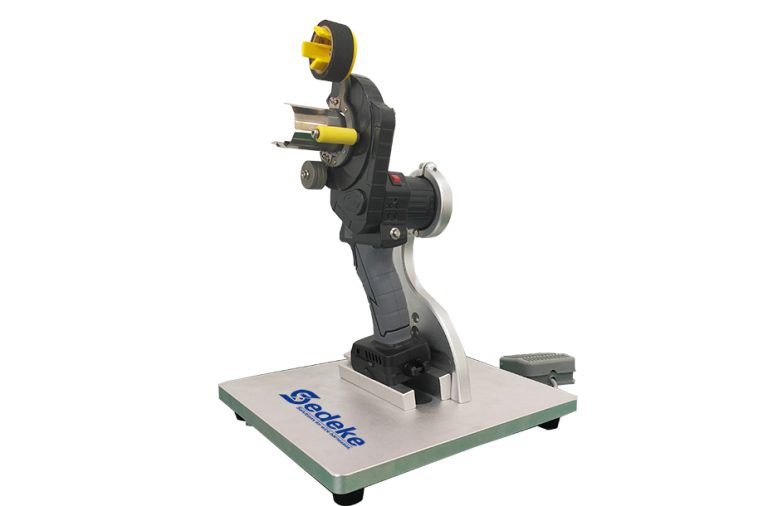

  • One machine is dual-purpose, one is to be used alone after charging, which is convenient for replacement and use in different places(Standard machine); the other is to add a desktop fixed base and plug in the cable for use(Optional model).
Share

FEATURE

Lithium battery rechargeable hand-held tape wrapping machine, through the use of button operation to efficiently wind and encapsulate the wire harness. The winding speed is adjustable, the machine has speed adjustment gears, 150-500 revolutions per minute, and can be used at different speeds according to requirements. The wire harness coating process is smooth, and the appearance is beautiful and smooth. The machine is equipped with a hidden knife edge device and an emergency brake device to ensure the safety of operation and use. One machine is dual-purpose, one is to be used alone after charging, which is convenient for replacement and use in different places(Standard machine); the other is to add a desktop fixed base and plug in the cable for use(Optional model).

PARAMETER

Input Voltage220V AC
Size100*75*400mm
Weight1.75kg
Winding Speed4 gears adjustable
Tape Width 9-25 mm
Tape Roller Outer Diameter≤110mm
Tape Roller Inner Diameter38 mm(Other sizes can be customized)
Harness Diameter3-35 mm
Tape Materials PVC, Cloth, Felt, etc.

APPLICATION
