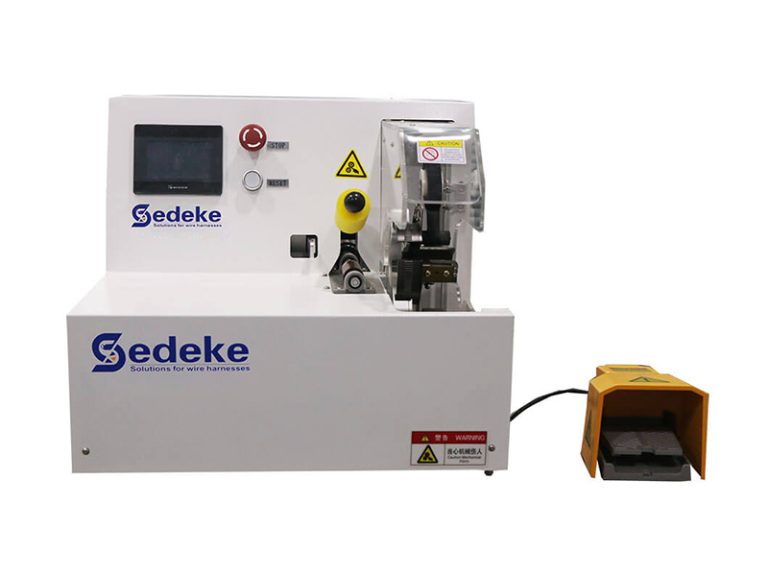

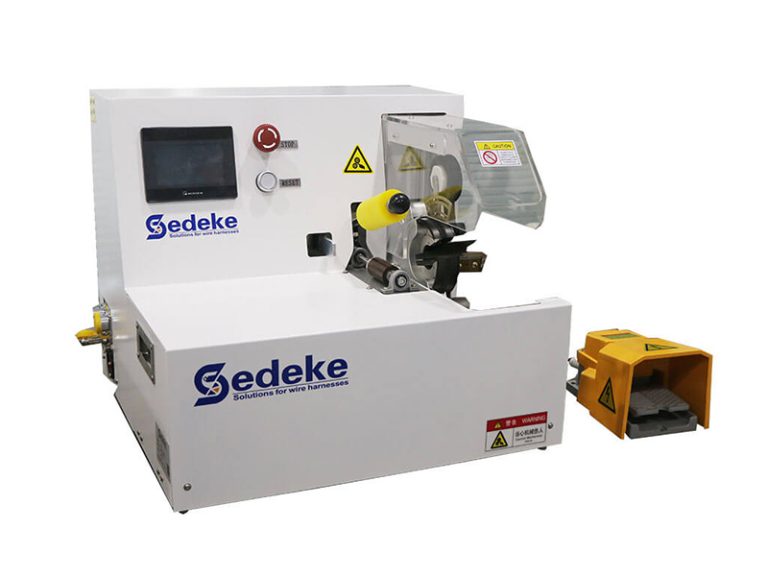

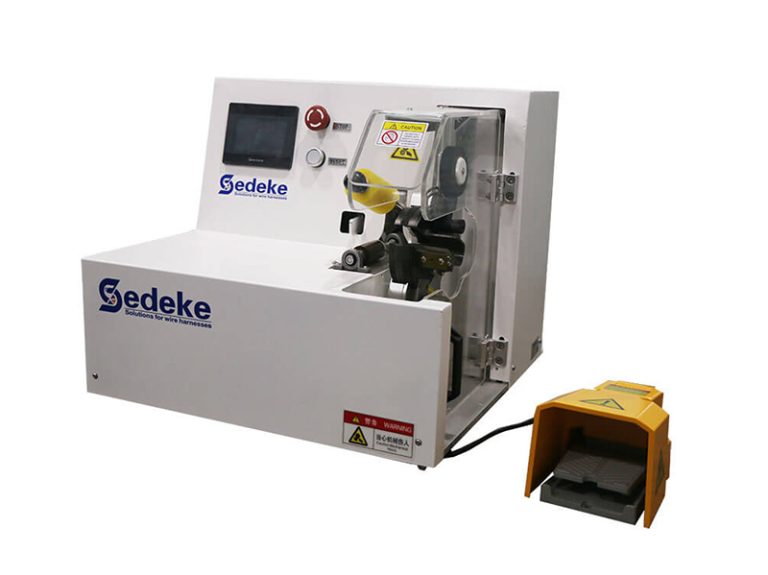

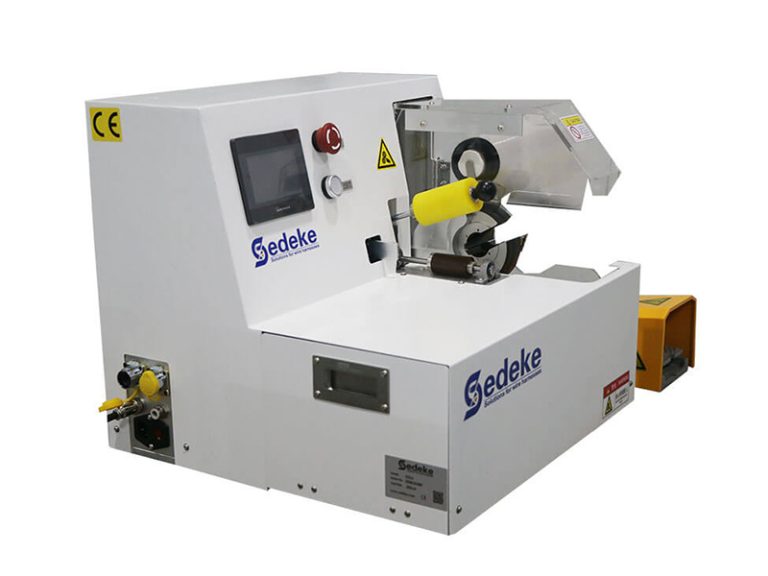

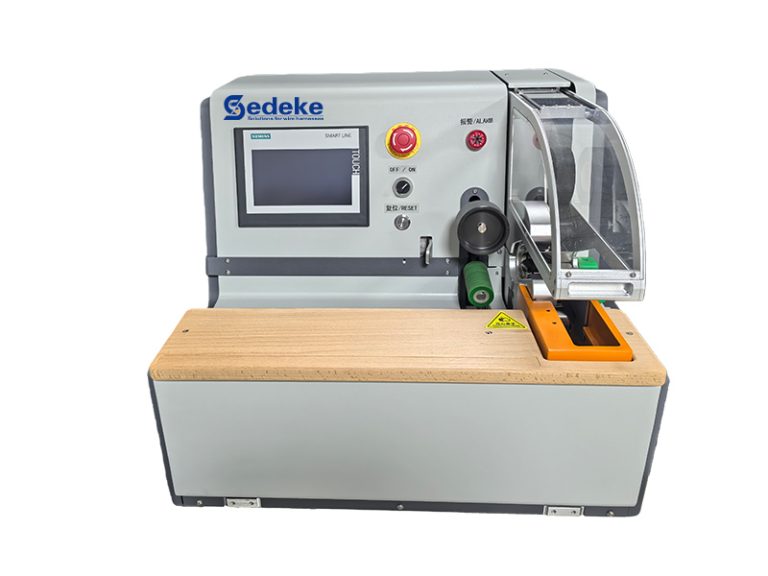

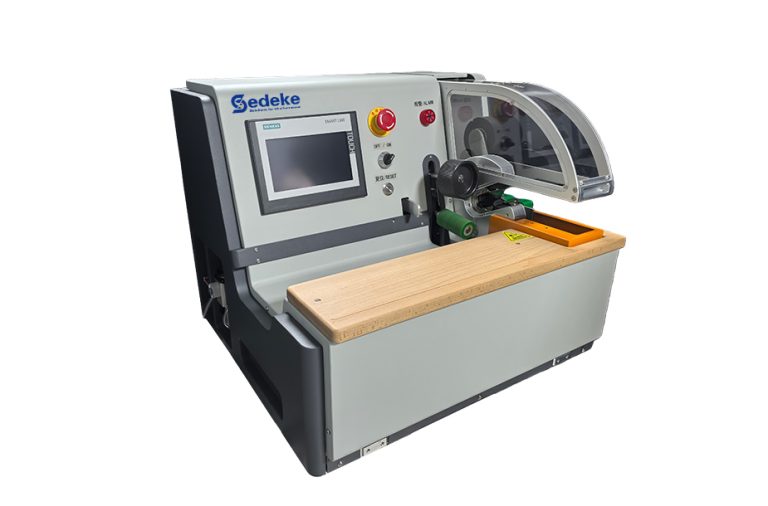

STP-C Automatic Wire Taping Machine

Automatically Wrapping
It is quick for any part of a single wire harness to be winded ,especially for simple branch wire which only requires the operator to pre-wrap tape manually.
Excellent Quality and Efficiency
It is easy and quick to adjust the wrapping speed and overlap rate by pressing the control button and to achieve interval or consistent wrapping effect.
The transmission mechanism can automatically restore so that the next taping operation is ready after one taping is completed.
Simple and Comfortable
The position of the equipment is fixed, and it is very easy to learn because the operator is only required to put wiring harness in the machine.
Moreover, the ergonomic design lessens the operator’s fatigue in hours working.
Safe and Stable
The cutter protection mechanism and the transparent protective cover can prevent the operator or the wire harness from being scratched by the cutter.

Share

FEATURE

Automatically Wrapping
It is quick for any part of a single wire harness to be winded ,especially for simple branch wire which only requires the operator to pre-wrap tape manually.
Excellent Quality and Efficiency
It is easy and quick to adjust the wrapping speed and overlap rate by pressing the control button and to achieve interval or consistent wrapping effect.
The transmission mechanism can automatically restore so that the next taping operation is ready after one taping is completed.
Simple and Comfortable
The position of the equipment is fixed, and it is very easy to learn because the operator is only required to put wiring harness in the machine.
Moreover, the ergonomic design lessens the operator’s fatigue in hours working.
Safe and Stable
The cutter protection mechanism and the transparent protective cover can prevent the operator or the wire harness from being scratched by the cutter.

PARAMETER

Input Voltage110V/ 220V AC (±10%)
Air Pressure0.5-0.6MPA
Feeding Speed0-200mm/s
Winding Speed60-370rpm
Tape Width 9-25mm
Harness Diameter 5-32mm
Dimensions500x523x427 mm
Tape Roller External Diameter≤110mm or Customized
Diameter of Tape Mandrel38mm, 32mm,or Customized
Tape Materials PVC, Cloth, Felt etc.

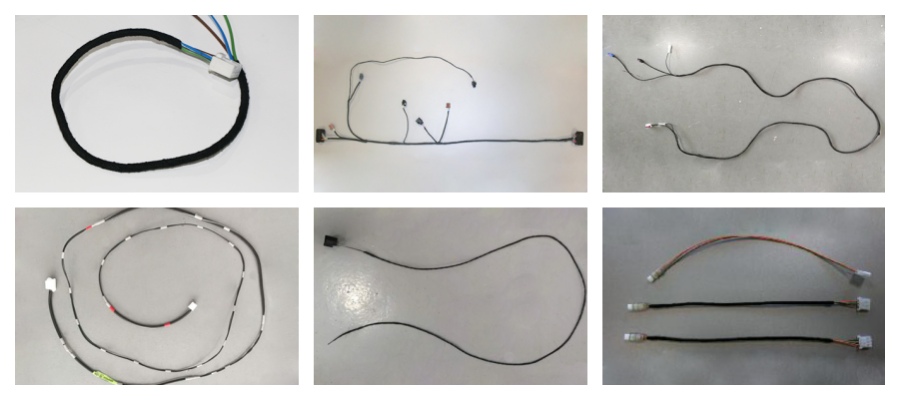

APPLICATION
