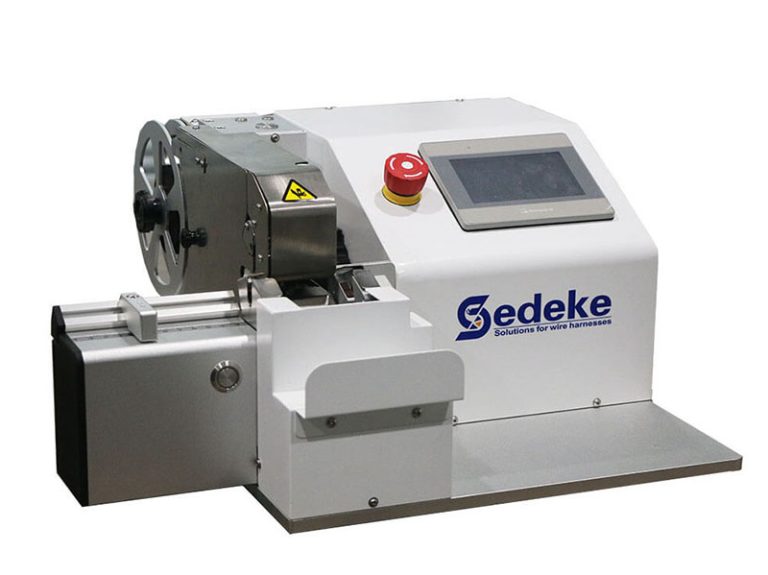

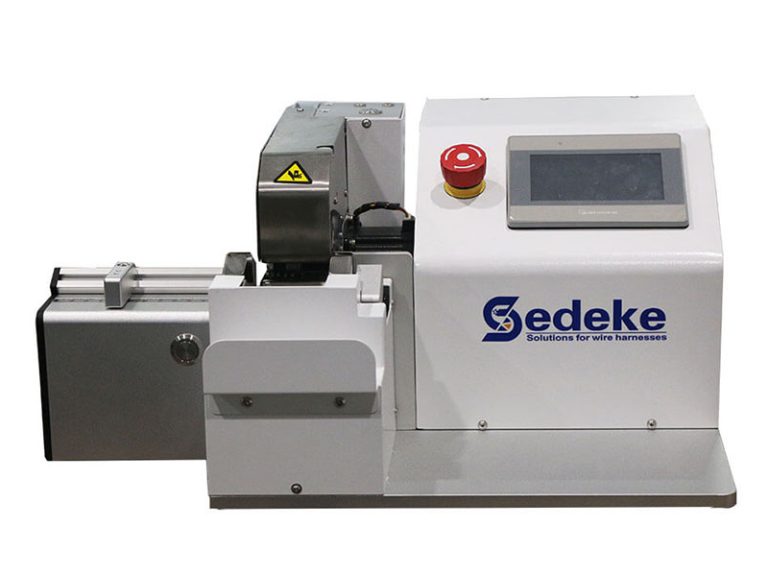

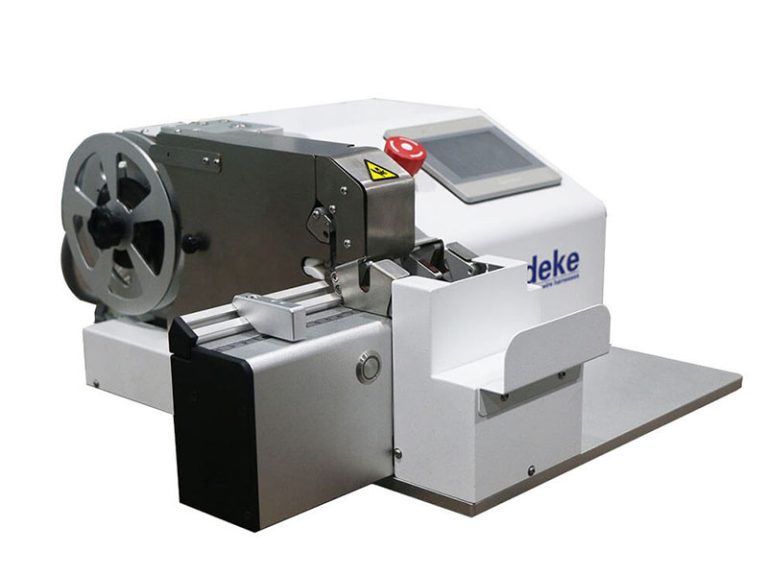

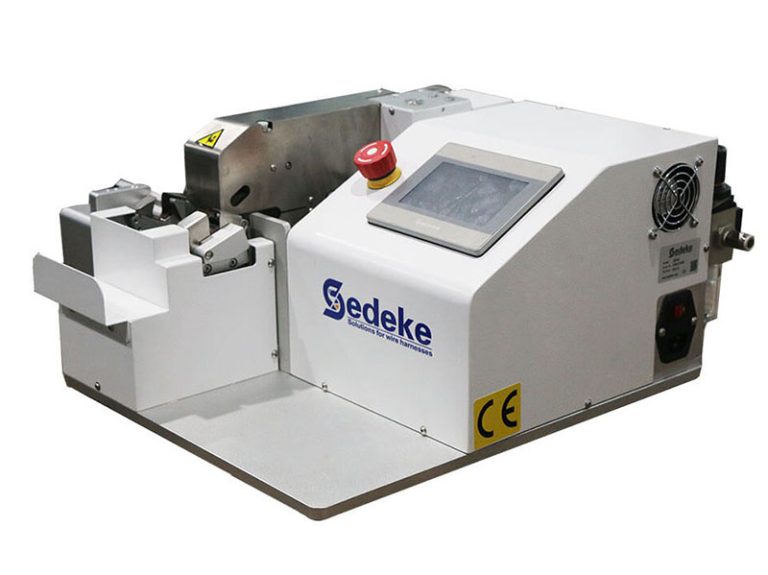

STB-60 Tape Bundling Machine

  • Save tape, minimum cutting length 35 mm;
  • Adjustable turns of bundling;
  • The reliable cutter makes cutting smooth;
  • Safety protection in place to avoid operator touching blade;
Share

DESCRIPTION

STB-60 tape spot bundling machine can efficiently carry out multi-point winding and precise positioning bundling. Suitable for tapes with a width of 9mm or 19mm. This cable partial taping machine uses a number of patented technologies, it can work with the clamping mechanism to achieve automatic strapping. The device has accurate positioning and a stable binding effect.

  • The number of bundling turns can be adjusted, and STB-60 can achieve 2-6 turns of bundling.
  • Save the cost of tape, the minimum cutting length is 35mm.
  • The operation is simple and convenient. The operator only needs to put the wire harness into the fixture and trigger the switch to complete the automatic binding of all points.
  • The tape cuts smoothly, and the tape surface is flat after bundling, and the quality is reliable.
  • STB-60 Wire harness tape spot bundling machine can effectively protect the operator and prevent the operator from touching the blade.

FEATURE

The machine makes bundling more accurate, convenient, efficient and reliable.

  • Derivative design: The machine head can be separated from the control cabinet, and can be customized to be derivative equipment such as twister bundling machine and robot bundling machine.
  • Turns adjustable: The machine can achieve 2-6 turns of bundling.
  • Accurate positioning: The position accuracy is (+2mm), which can be matched with customized clamps and very close to the end of the connector.
  • High production efficiency: Because the bundling process is automatic, the comprehensive bundling efficiency can be improved, and the equipment has counting function.
  • High quality: After bundling, the surface is smooth and the quality is reliable.
  • Simple operation: The operator only needs to put the wiring harness into the clamp, and trigger the switch, Bundling can be completed automatic.

PARAMETER

ModelSTB-60
Dimension450x475x220 mm
Input Voltage110V/220V AC (±10%)
Gas Supply Pressure0.4-0.6 MPA
Maximum Power150W
Tape Width9mm or 19mm
Wire Harness Diameter8mm or less, or Customized
Rounds of Bundling2-6 Rounds adjustable
Bundling Speed1000rpm
Tape Roller Diameter≤150mm
Tape Mandrel Diameter32mm-76mm
Tape MaterialsPVC, Cloth, etc.

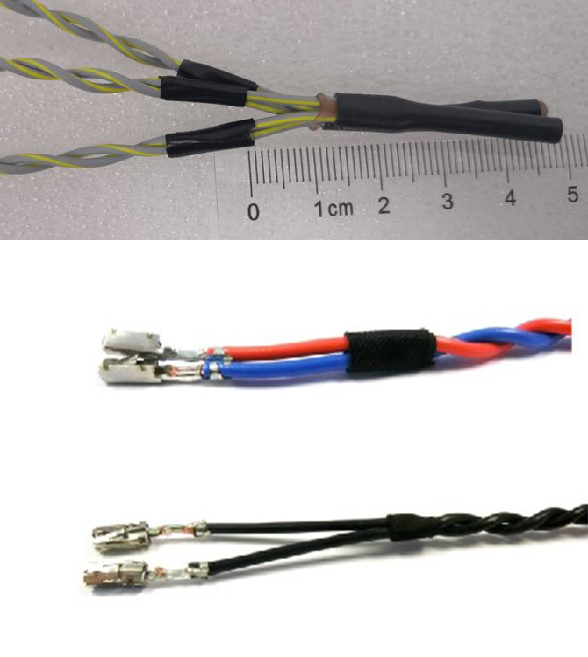

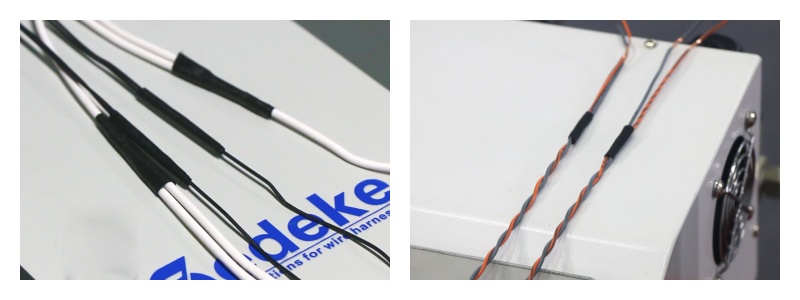

APPLICATION
