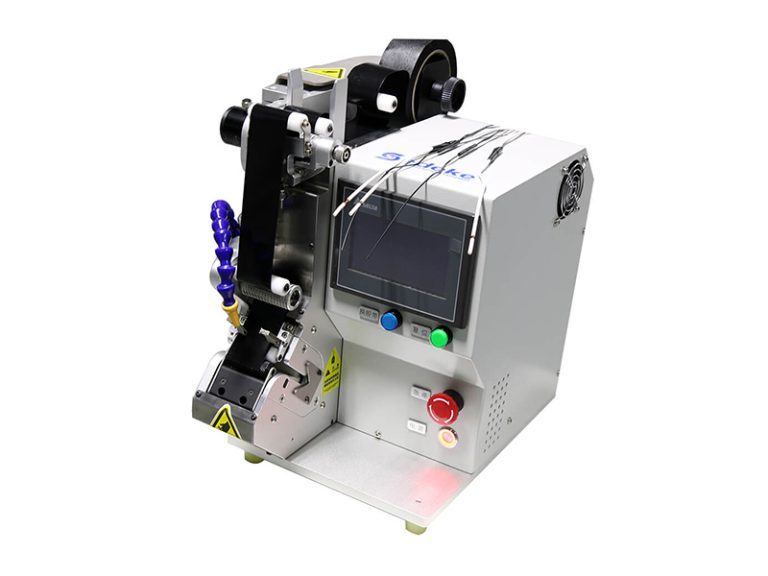

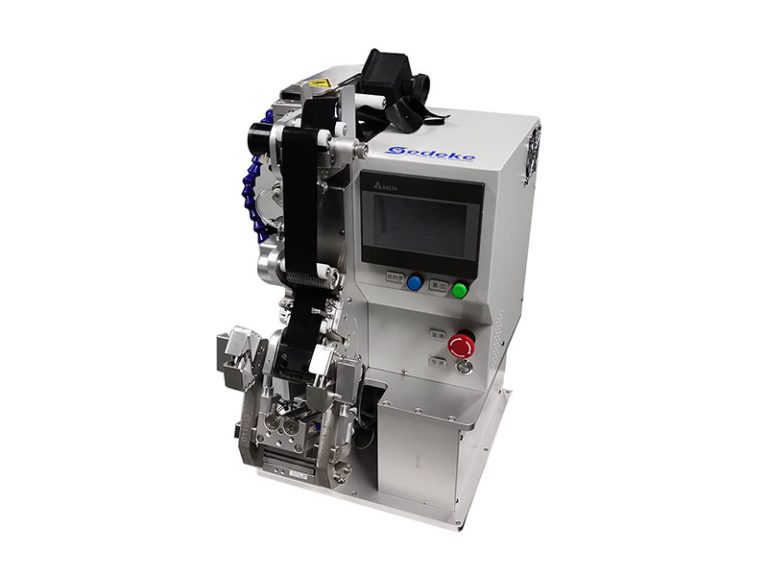

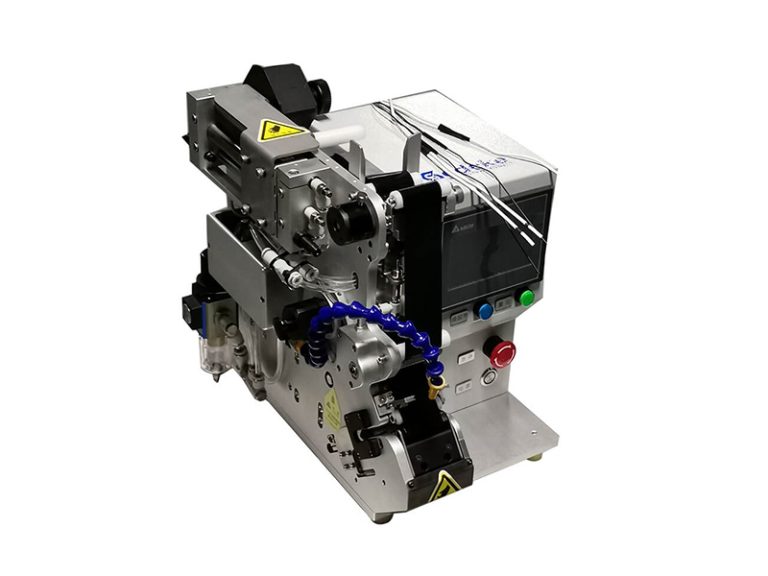

Our desktop bundling machine, with several patents, is designed for bundling the joints or the welding joints of wire harness, especially applicable to those adhesive and wide tapes. The machine has adjustable number of bundling turns, fast bundling speed and strong adaptability to various adhesive tapes. It resolves common problems like: the tape is bundled loosely, or wide tape is difficult to be cut. The equipment greatly improves bundling quality and efficiency, and saves tape as well.
Incorporating the art technologies in mechanics, detection and automation, the machine makes the harness bundling process more convenient, more efficient and more reliable.
Adjustable Number of Bundling Turns: The number of bundling turns can be set between 3 and 5 to meet different requirements from customers. Thus ,the consuming tapes is greatly saved.
High Production Efficiency: It takes only two and a half seconds to complete one wrapping, greatly improving the bundling efficiency. Furthermore, there is a function to automatically count the number of bundling turns.

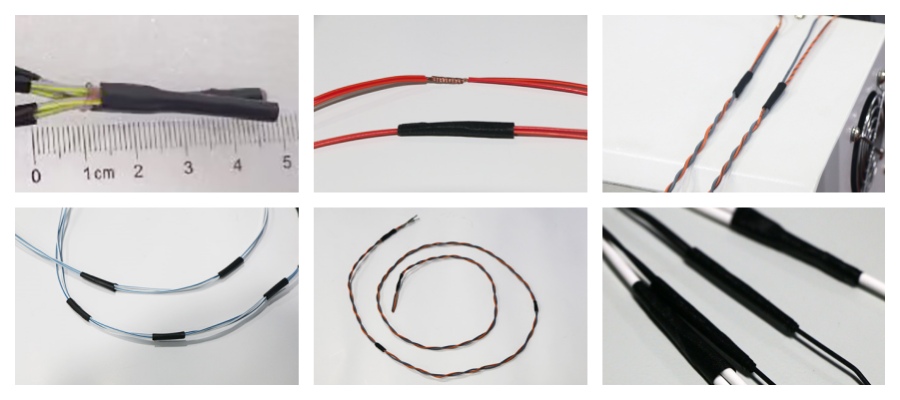

High Quality: Joints of different diameter wires can be bundled tightly with good appearance through the special mechanical structure.
Strong Adaptability: This machine is suitable for wide tape which needs big unwinding force.
Stable Cutting: With special mechanical structure in the machine, tape, especially cloth tape, is easily cut with little residue in long time. Furthermore, the cutter is easily replaced and maintained.
Easy Operation: The operator is only required to put wire in the machine and then switch on the power.
Small, light and easily moved.
| Dimension | 295x375x390 mm |
| Input Voltage | 110V/220V AC (±10%) |
| Gas Supply Pressure | 0.4-0.6 MPA |
| Maximum Power | 150W |
| Tape Width | 19-55mm |
| Wire Harness Diameter | 8mm or less, or Customized |
| Rounds of Bundling | 3-5 Rounds |
| Bundling Speed | 100-500rpm |
| Tape Roller Diameter | ≤160mm |
| Tape Mandrel Diameter | 38mm, 76mm or Customized |
| Tape Materials | PVC, Cloth, etc. |
