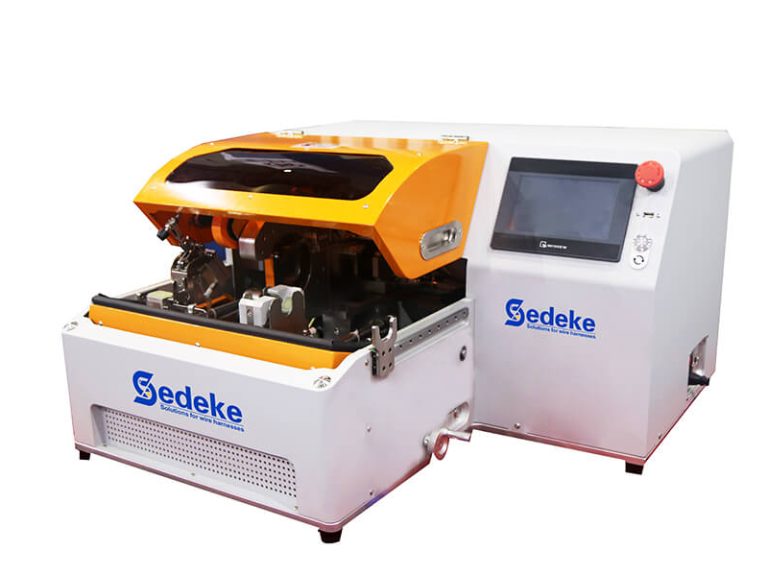

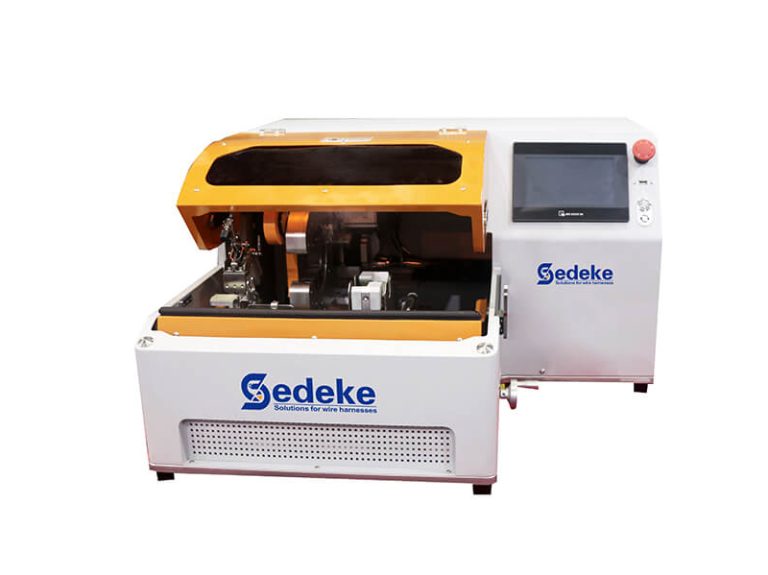

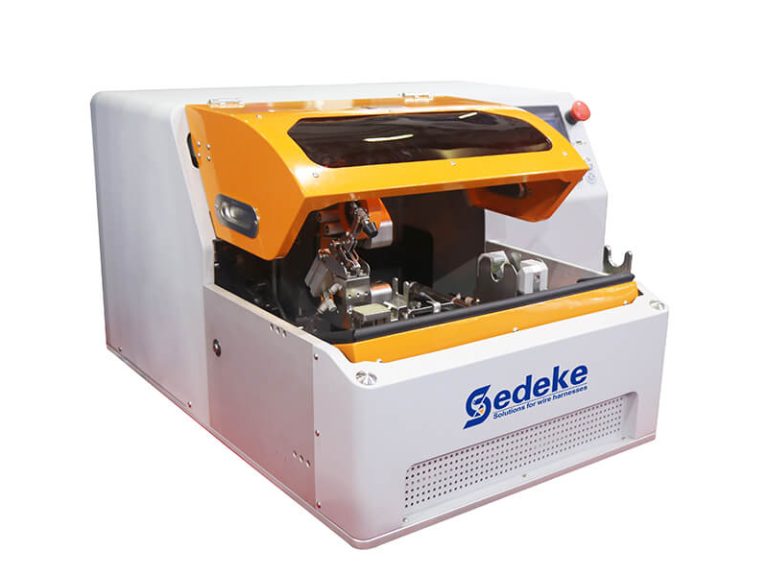

STB-30 Automatic Tape Bundling Machine

  • Very reliable cutting, especially for cloth tapes
  • Fixture can be quick change, need to tear open outfit four screws
  • Special tape wrapping effect can be set
  • Various dimensions can be set by program
Share

DESCRIPTION

STB-30 is a specially designed device that can wrap the tape to the end of the wire harness connector, which can realize the perfect winding of the wire harness with large drop diameter. Through parameter setting, it is possible to set complex motion trajectory, winding length, number of wrapping circles, and wrapping compression rate. The entire tape winding and cutting process is fully automatic, and manual loading and unloading are only required.

  • Very reliable cutting, especially for cloth tapes
  • Fixture can be quick change, need to tear open outfit four screws
  • Special tape wrapping effect can be set
  • Various dimensions can be set by program

FEATURE

Winding tape to the end:
Special design, to ensure that the tape can be wound to the end of the sheath.

Tape wrapping with large drop:
For special wire harnesses with large diameter drop, it can be set through the program to wind a flat and perfect effect.

Parameter setting:
The number of turns of tape winding, the length of tape winding, the speed of tape winding, the horizontal walking track, and the effect of tape winding can all be set in the display.

Fully automatic:
Automatic clamping, automatic winding, automatic positioning of equipment, automatic cutting, manual loading and unloading is only required.

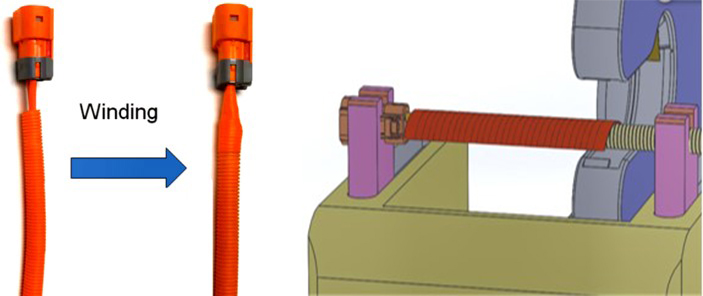

Product Sample:

PARAMETER

Dimensions755*620*480mm
Rated voltage110V/220V (AC) (±10%)
Tape width19mm
Wrapping length≤200mm
Wire harness diameter≤20mm
Rotate speed≤400 RPM
Applicable tapePVC or cloth
