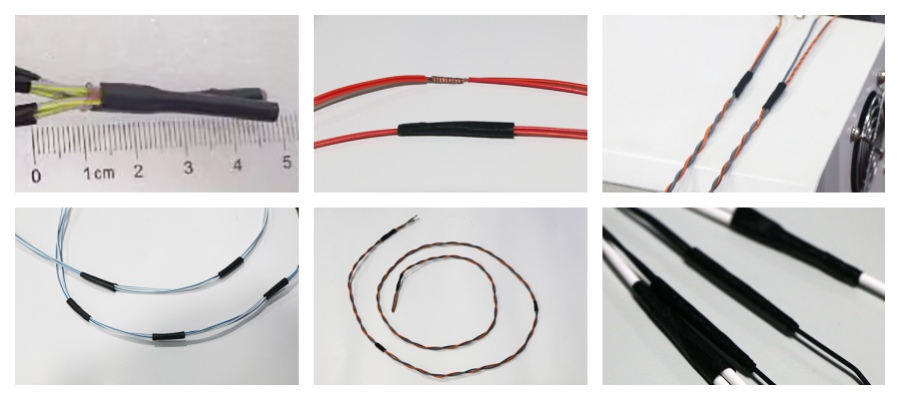

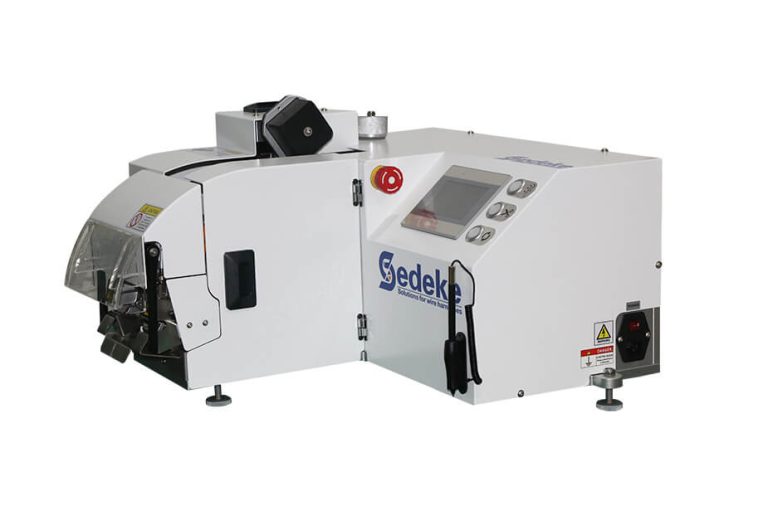

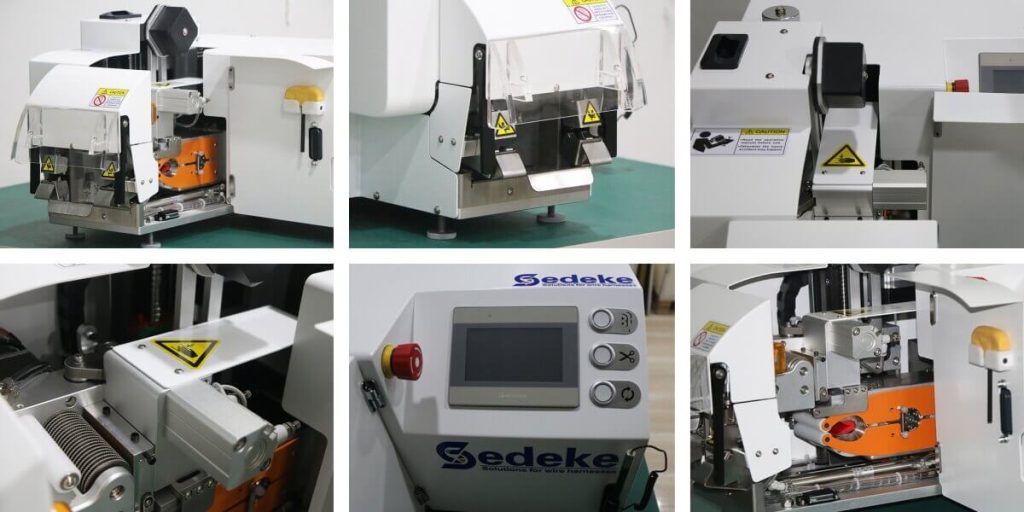

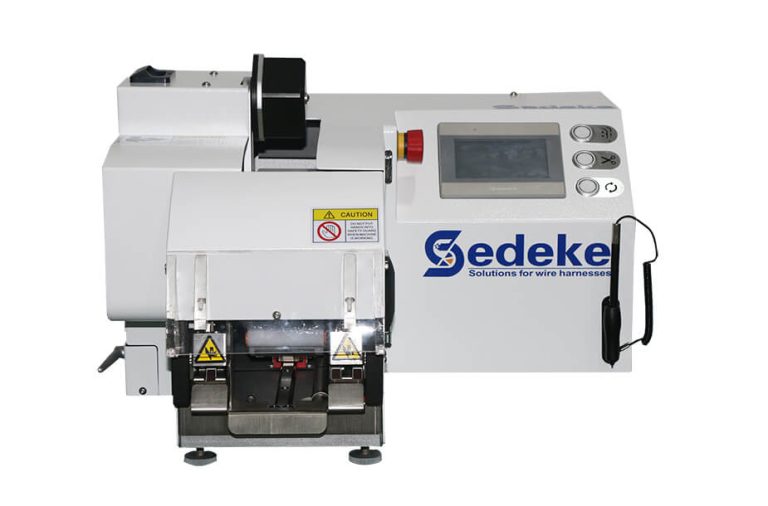

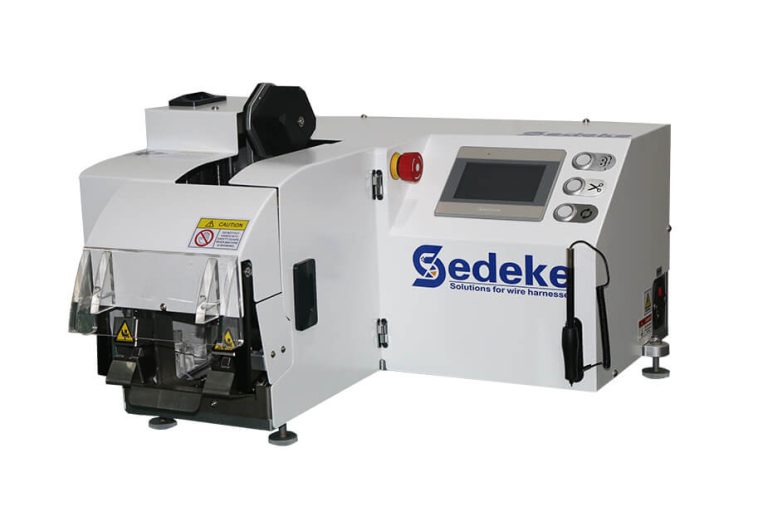

STB-10 can greatly improve the quality and efficiency of taping, save personnel, save tape. The number of turns can be adjusted, fast taping speed, strong adaptability to tape.
The equipment can be integrated with ultrasonic welding machine and other joint processing equipment. One operator can operate welding machines and integrated taper.
STB-10 can greatly improve the quality and efficiency of taping, save personnel, save tape. The number of turns can be adjusted, fast taping speed, strong adaptability to tape.
The equipment can be integrated with ultrasonic welding machine and other joint processing equipment. One operator can operate welding machines and integrated taper.
| Winding Mode | Middle or point winding |
| Bundle Diameter | 10mm or less, or customized |
| Tape Width | 19-50mm |
| Tape External Diameter | ≤160mm or Customized |
| Diameter of Tape Mandrel | 38mm ,76mm or Customized |
| Turns of Bundling | 3-7 rounds |
| Power Supply | AC 220V 50Hz / 110V |
| Max. Power | 150W |
| Air Pressure | 0.4-0.6Mpa |
| Dimensions(LxWxH) | 270×360x380mm |
| Weight | 30Kg |
| Material | PVC, Cloth, Felt, etc. |
