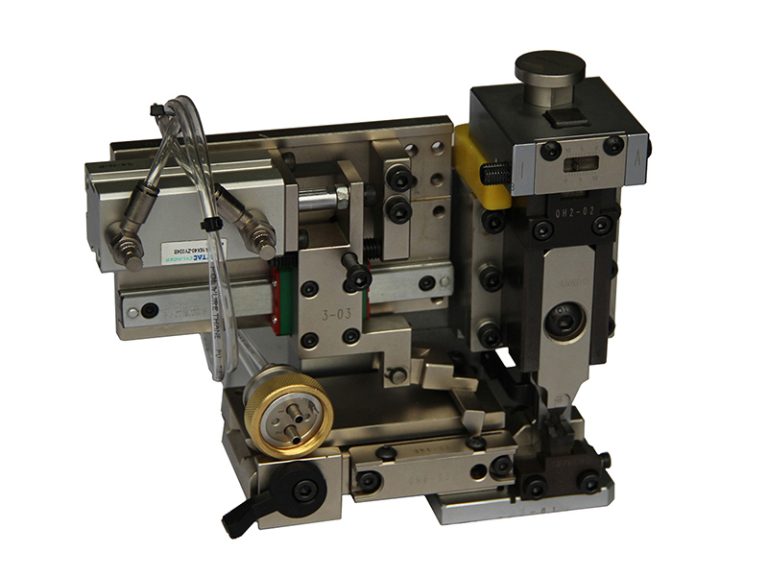

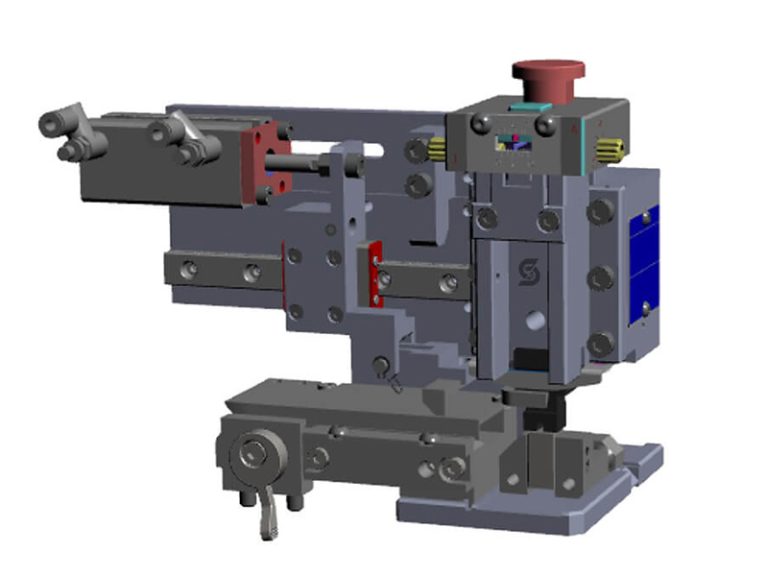

New concept of applicator body made of cast iron casting that supports customization side or front, easy replacement of specific parts by fastening the front of the pieces, broad accessibility and ease for a variety of settings.
1. Continuous crimping height adjustment
Can be supplied either with a continuous or a wedge regulating head, providing a 0.02mm resolution or C.H./I.H. and a 2.0mm range, which satisfied your rigorous demand on the crimping.
2. Pneumatic feeding mechanism
Terminal pitch 40mm become true easily and feeding speed can be adjusted with facility, can be supplied either with shot stroke cylinder or oriented cylinder for choice, which can enable you to operate the machine freely;
3. Switch system
Can be fitted to semi-automatic and fully automatic crimping machine such as Komax, AMP, Mecal, etc.

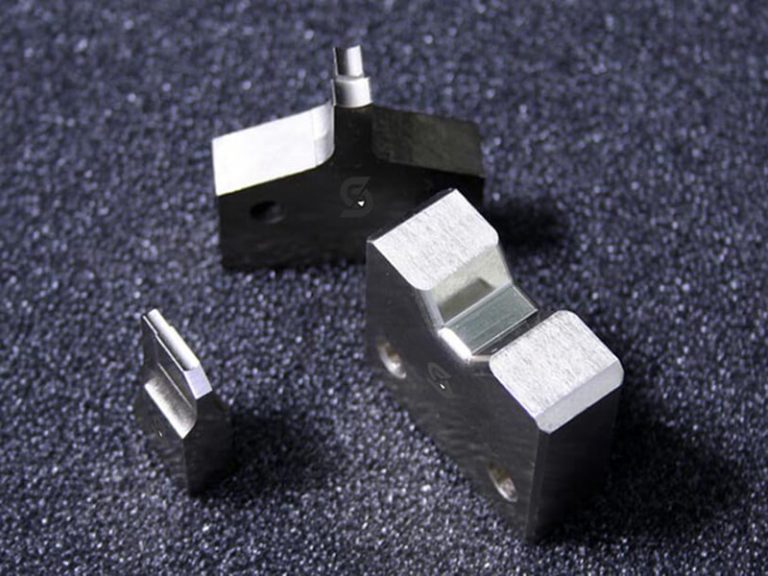

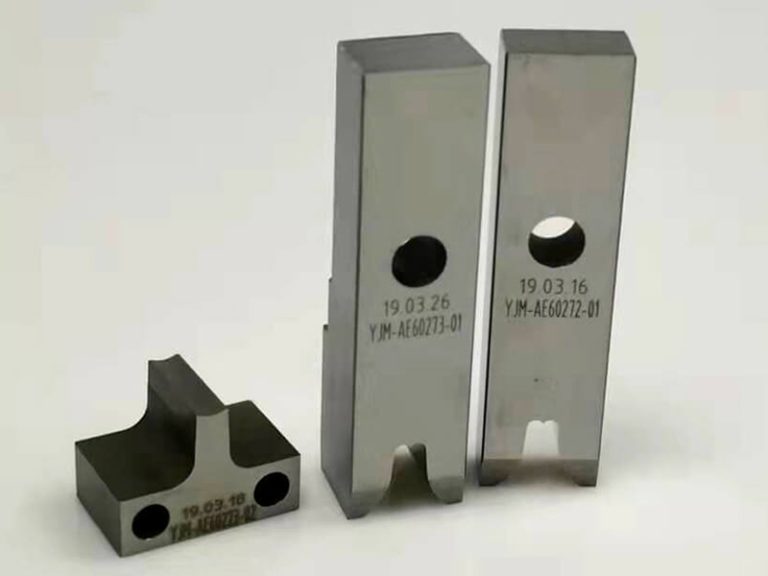

4. Each part has their own ID ; Supply CPK document
| Feed type | Pneumatic |
| Press stroke | 40 or 30 mm (1.57“ or 1.18“) |
| Cross section range | 0.08 – 6 mm ² (28 – 9 AWG) |
| Crimp height adjustment (wire & insulation) | Increment: 0.025 mm (0.001”) Max.: 2.0 mm |
| Terminal pitch range | Max.: 40 mm |
| Terminal thickness | < 1,2mm (<0,047")) |
| Weight | 5.0kg |
| Feed System | Side Feed & Rear Feed |
| Important note | SEDEKE recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine. |
