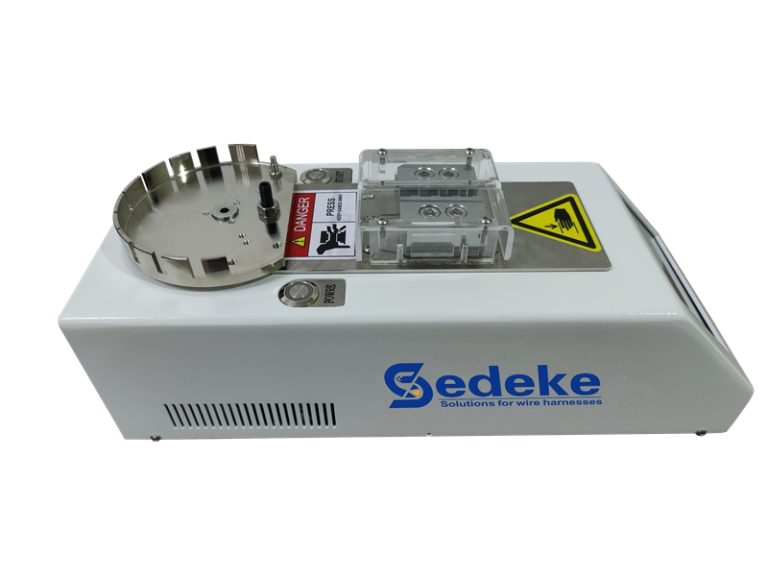

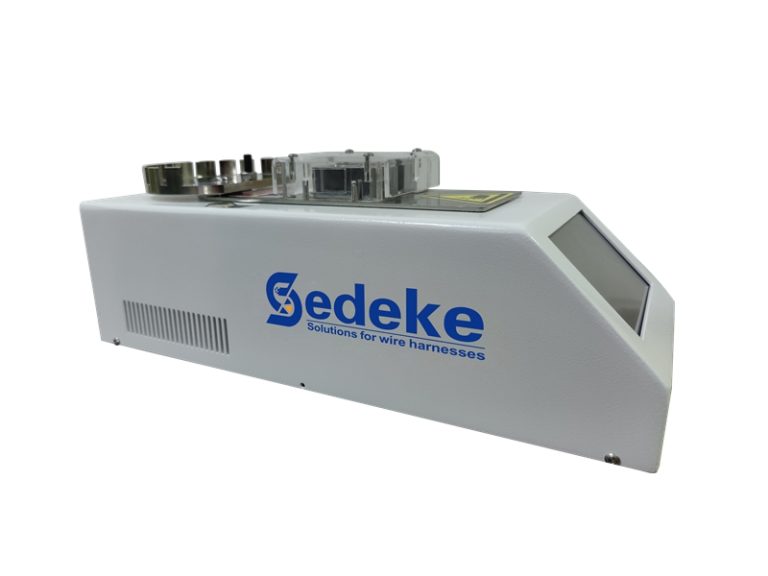

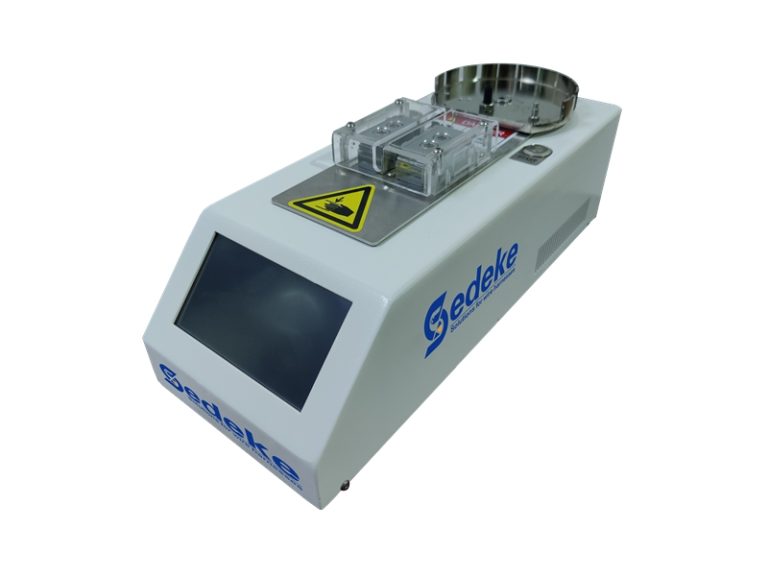

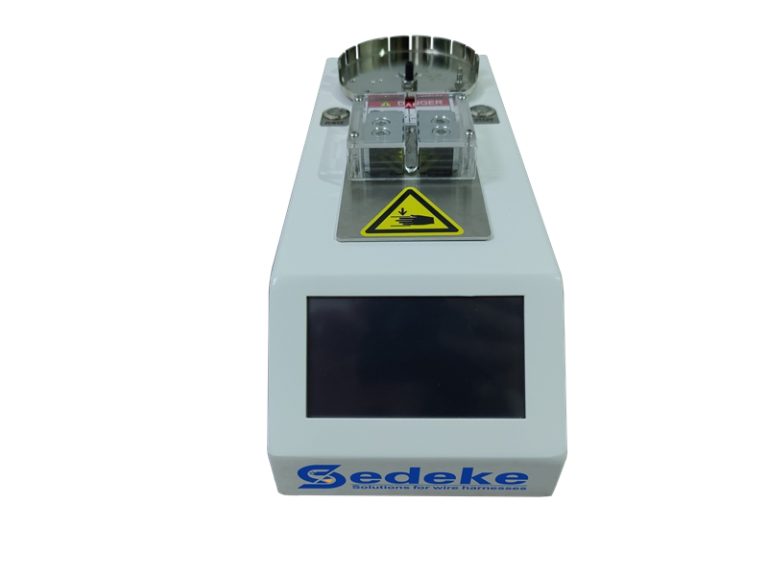

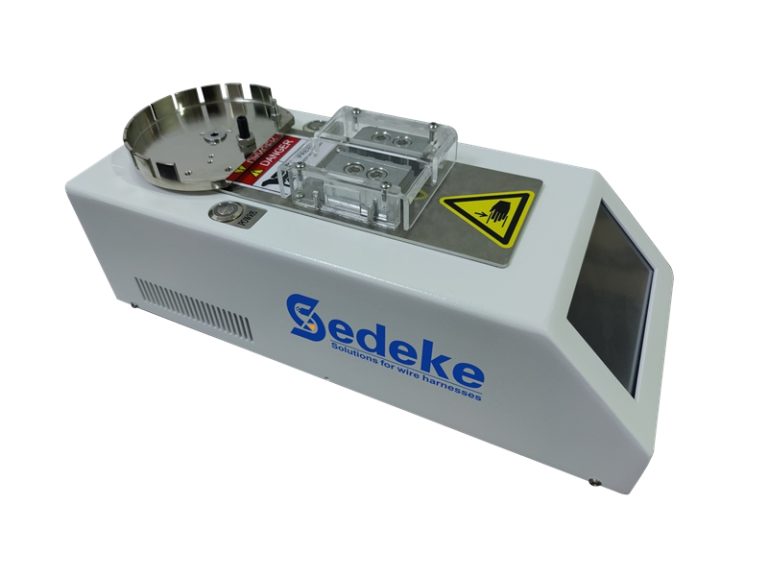

PFM-200 Pull Force Tester For Wire Terminals

  • Easy to operate;
  • Response speed is very quick;
  • Micro operating system can effectively guarantee the stability and accuracy of test results;
  • Data transmission can be equipped with various communication interfaces.
Share

FEATURE

The PFM-200 automatic tensile tester is a special instrument used for the detection of terminal pull-off force after crimping of various terminals.

  • Easy to operate;
  • Response speed is very quick;
  • Micro operating system can effectively guarantee the stability and accuracy of test results;
  • Data transmission can be equipped with various communication interfaces.

FUNCTION

Language: Chinese / English
Unit: N / kg / lb
Data display: Real-time display of tensile value during testing; pull-off force test results show peak tension and test curve.
Speed setting: Can set the testing speed(25-200mm/min)
Clamp function: Automatic clamping during testing, automatic return after testing, without manual operation.
Communication Interface: comes with RS232 / USB interface.
Command control: Remote control of the machine can be realized through communication commands and interfaces.
System setting: Comes with parameter setting interface, which can easily set various system parameters.

PARAMETER

ModelPFM-200
Dimensions275x130x110MM
Weight7.5kg
Power supplyDC19V adapter
Tension stroke40mm
Acquisition speed4KHz
Pull force speed25-200mm/min
Testing rangeMax. 100Kg
Testing accuracy±0.5%FS
Communication InterfaceRS232/USB
