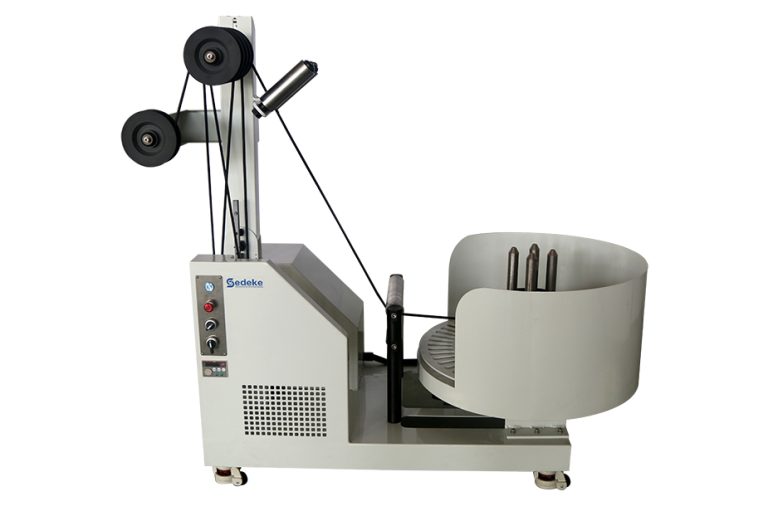

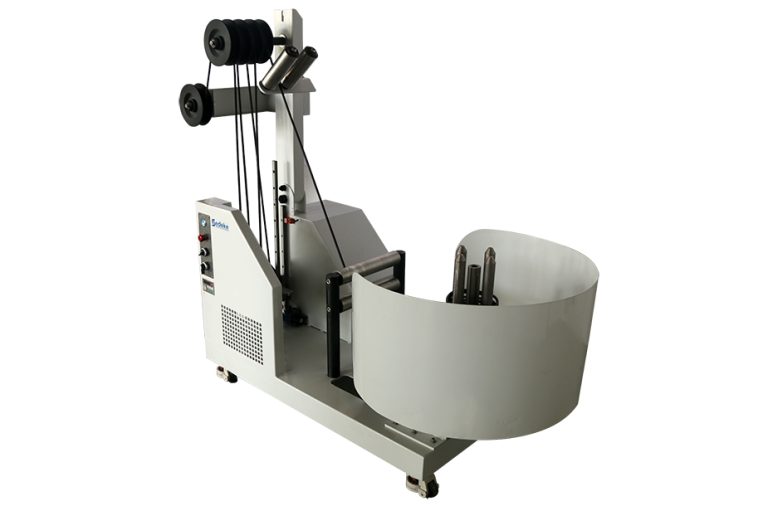

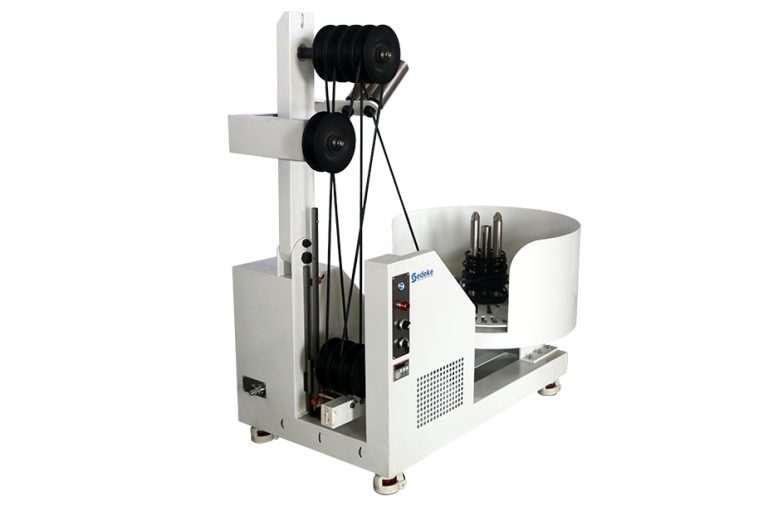

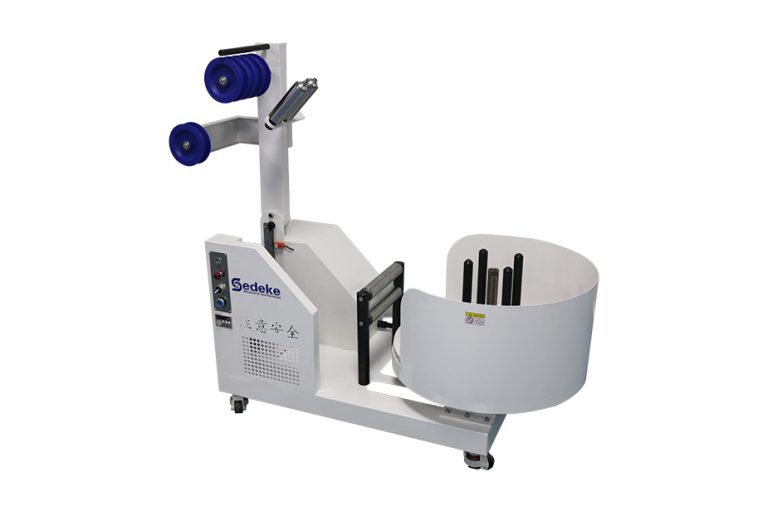

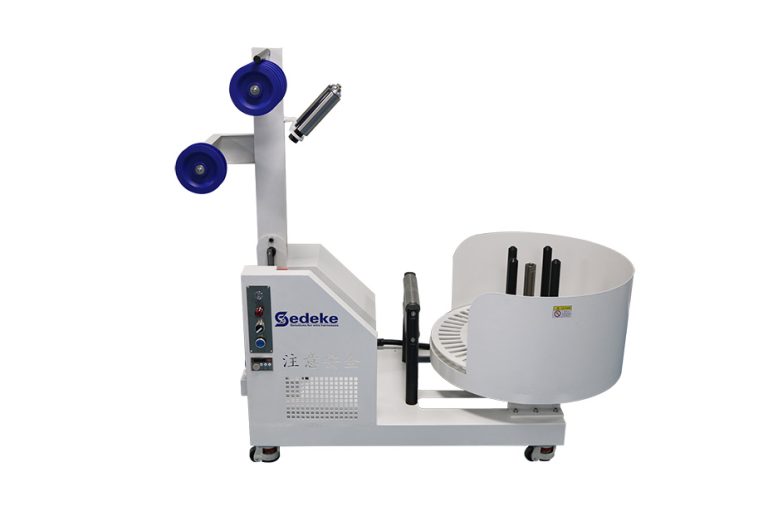

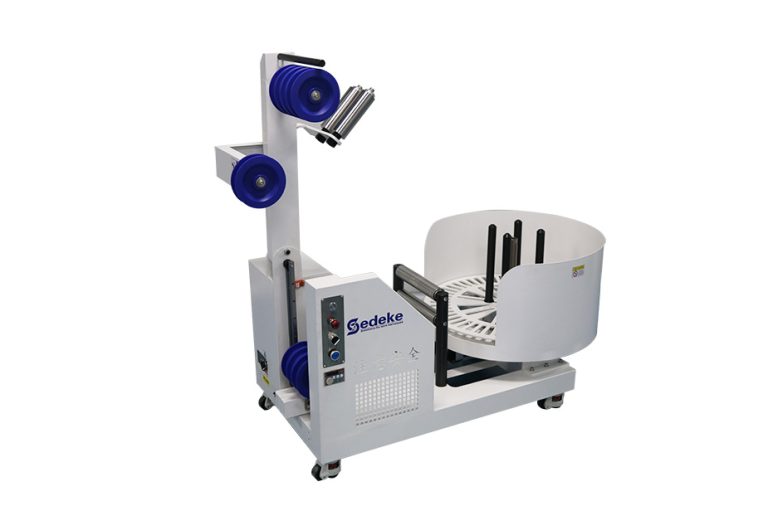

PF-90 Automatic Wire Prefeeder

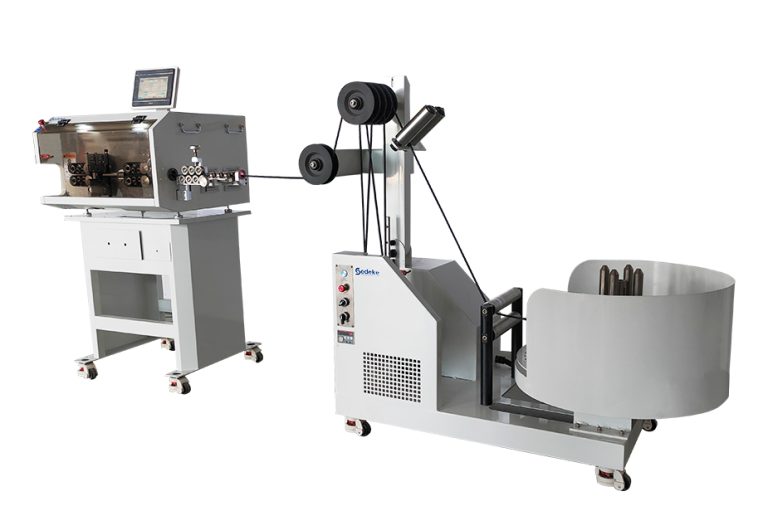

PF-90 wire prefeeding machine can feed cables, wires and tubes, working with cutting machine or stripping machine.

Share

FEATURE

PF-90 wire prefeeding machine can feed cables, wires and tubes, working with cutting machine or stripping machine.

PARAMETER

ModelPF-90-IPF-90-II
Drive Modethree-phase motor + reducerthree-phase motor + reducer
Rated speed14501450
Maximum speed22002200
Outer diameter of reel100-650mm100-850mm
Through hole diameter38-200mm38-200mm
Reel height650mm850mm
Installation methodinner hole installationinner hole installation
Wire typewith or without packagingwith or without packaging
Placement methodstand uprightstand upright
Speed modeadaptive stepless speed regulationadaptive stepless speed regulation
Maximum mass100KG100KG
Motor Power0.75KW0.75KW
The maximum diameter30mm30mm
Protection formprotection on both sidesprotection on both sides
Dimensions1544*660*12441544*850*1344
Package dimensions1600*760*8001644*950*800
