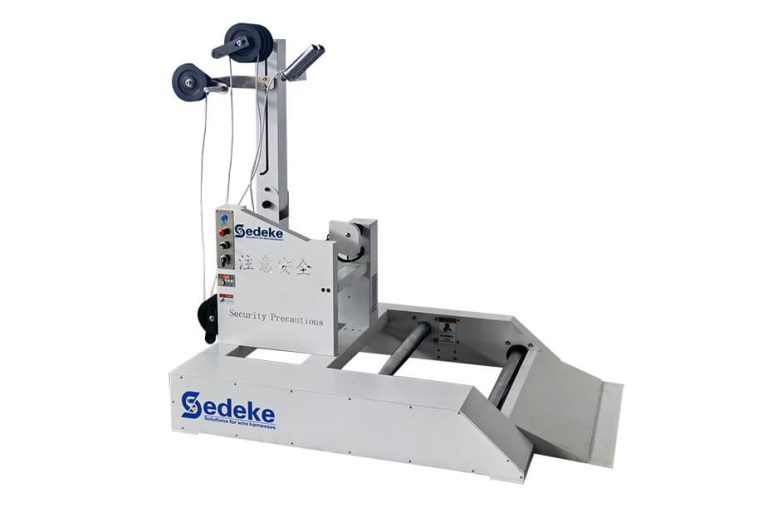

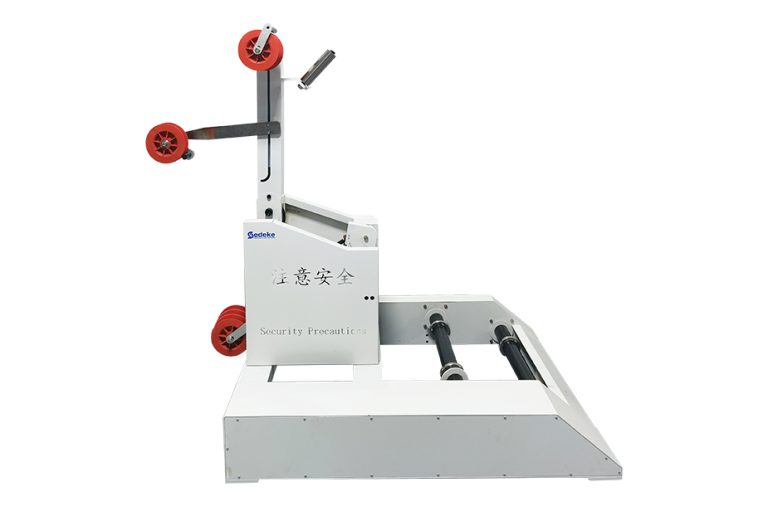

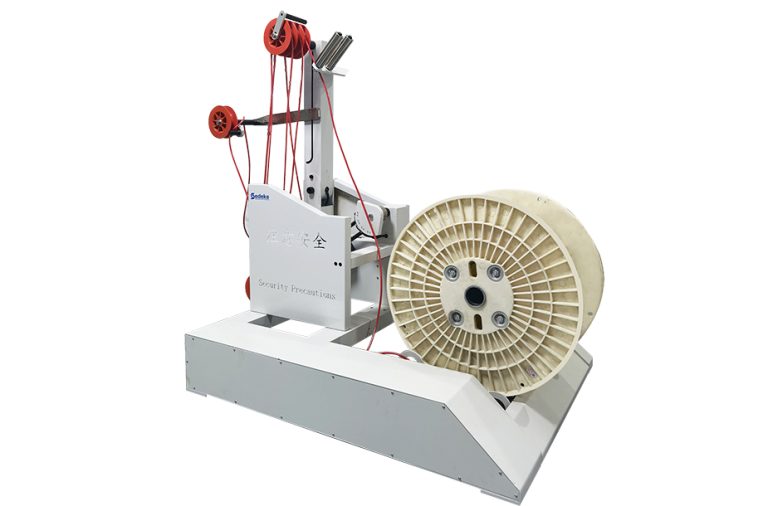

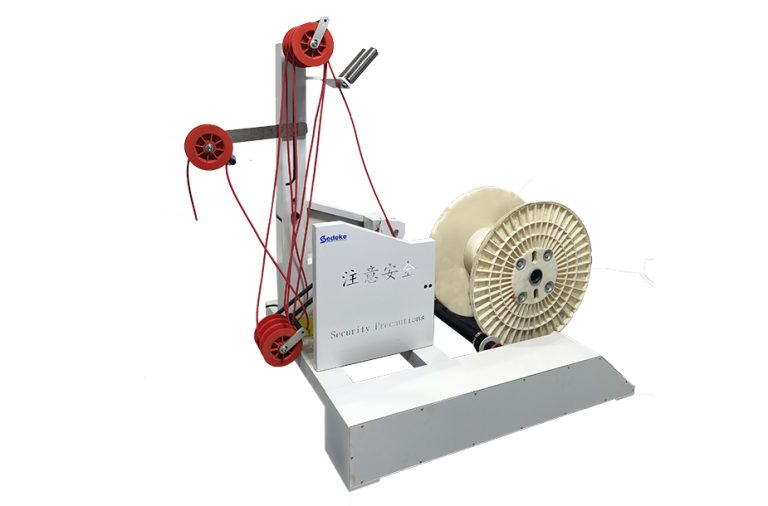

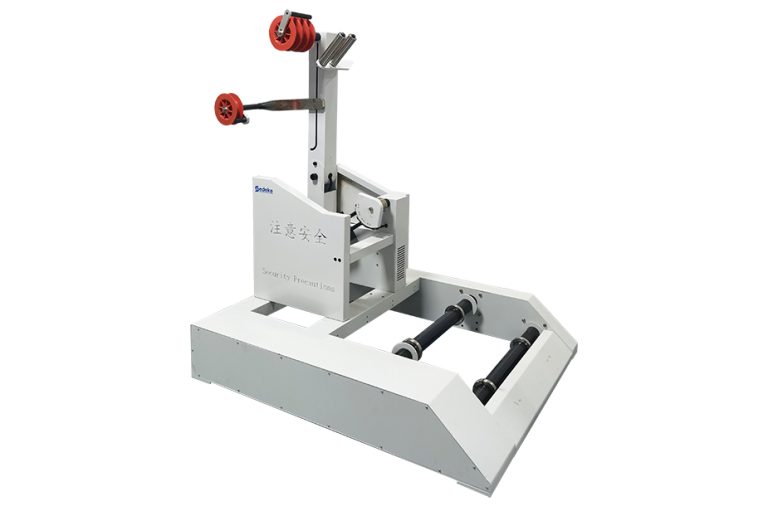

PF-60 automatic prefeeding machine can feed wires, cables and tubes, worked with cutting machine or stripping machine.
Model | PF-60 |
Drive mode | three-phase motor + reducer |
Rated speed | 1450 |
Maximum speed | 2200 |
Outer diameter of reel | 200-720mm |
Inner hole diameter | No limit |
Reel height | 680mm |
Installation method | Wire reel outer diameter installation |
Wire type | Packaged (barrel or paper reel) |
Placement method | Placed horizontally |
Speed mode | Multi-speed |
Max. Loading weight | 100KG |
Motor power | 0.75KW |
Wire max. diameter | 30mm |
Dimension | 1350*998*1410mm |
Package dimensions | 1450*1100*900mm |
