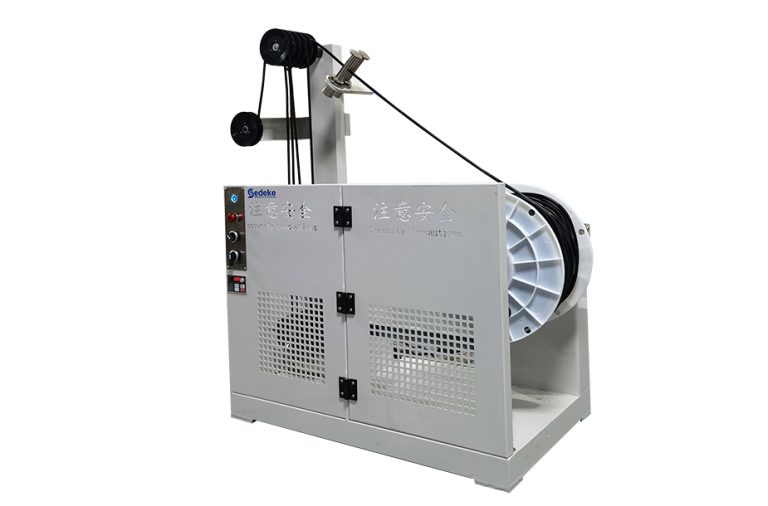

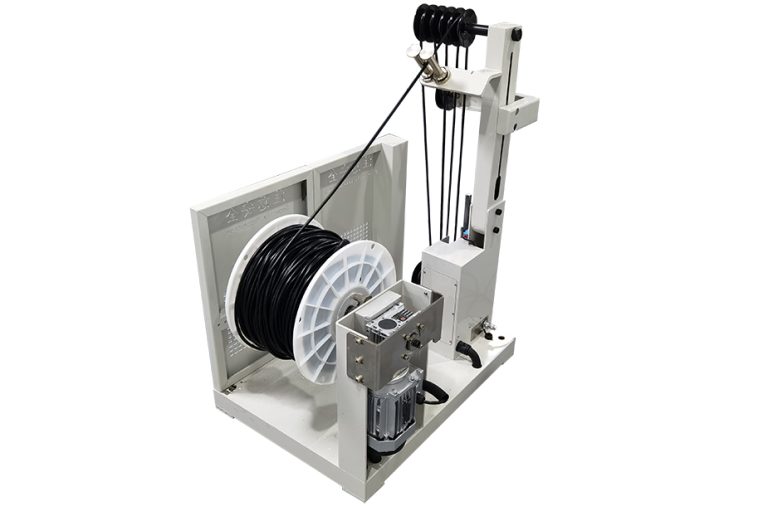

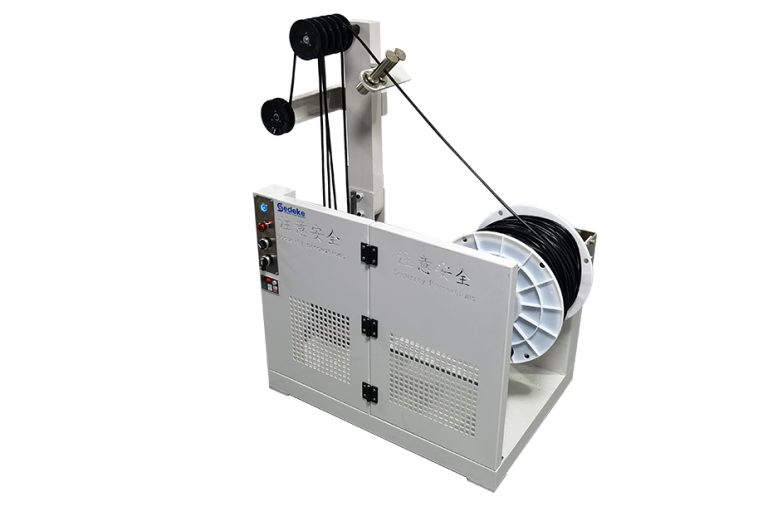

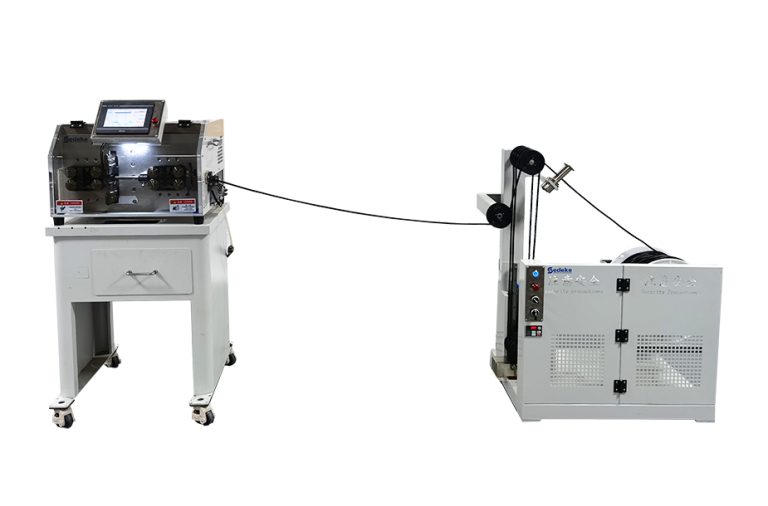

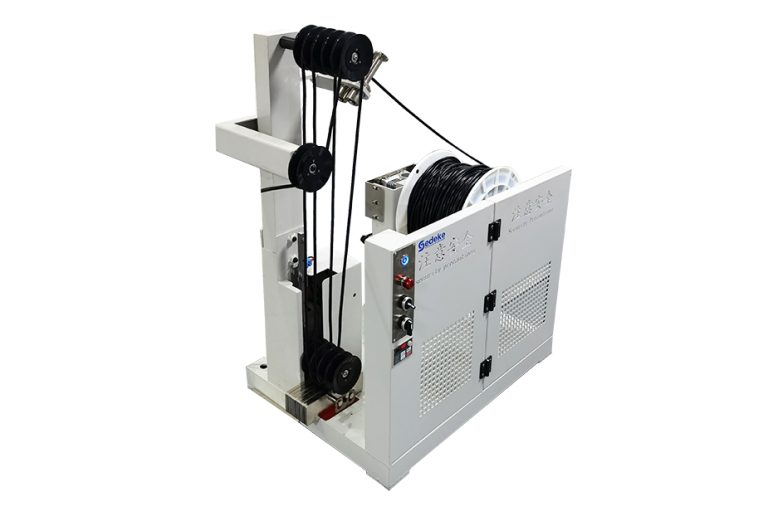

PF-30 automatic prefeeding machine can feed wires, cables and tubes, worked with cutting machine or stripping machine.
Model | PF-30 |
Max. cable diameter | 18 mm |
Max. cable spool diameter | 400 mm |
Max. loading weight | 60KG |
Spool height | 380 mm |
Speed | 0-4M/S |
Drive mode | frequency converter+motor+reducer |
Dimensions | 800*640*1128mm |
Weight | 70KG |
