1. Universally employable due to standard possibility to accept cable reels and loose cable rings alike
2. Automatic control of wire feeding speed and driving by servo motor
3. Utilization of wire tray enables easy cable management at the time of storage
4. At the time of bobbin wire use, changeover time can be shortened by automatic wire winding-up mechanism
5. Bundled wire rotation speed is selectable from 3-step, enabling to correspond to high-speed wire feed

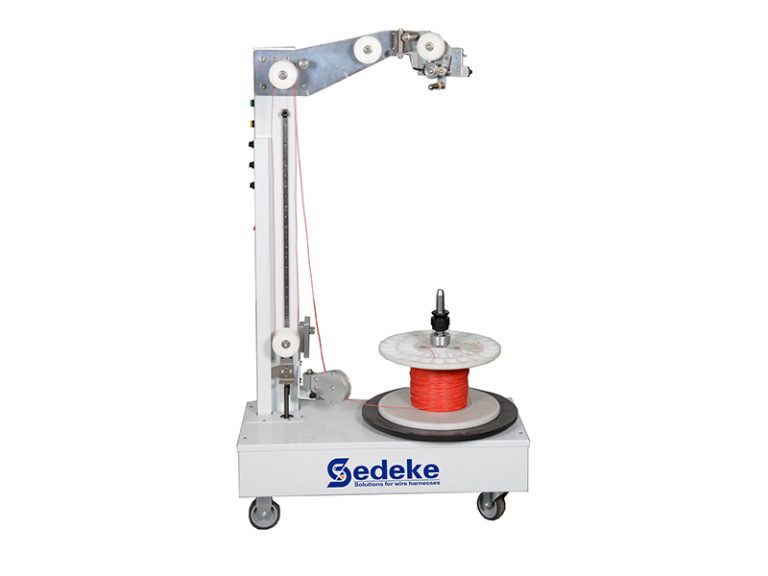

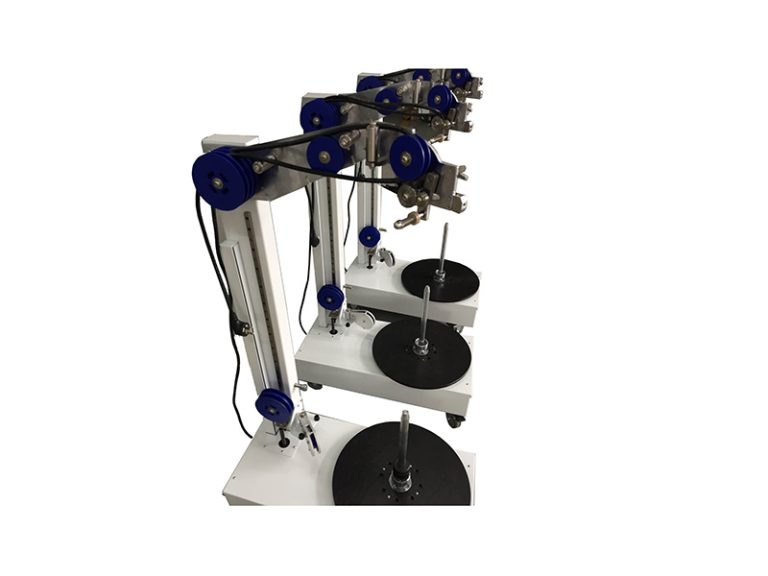

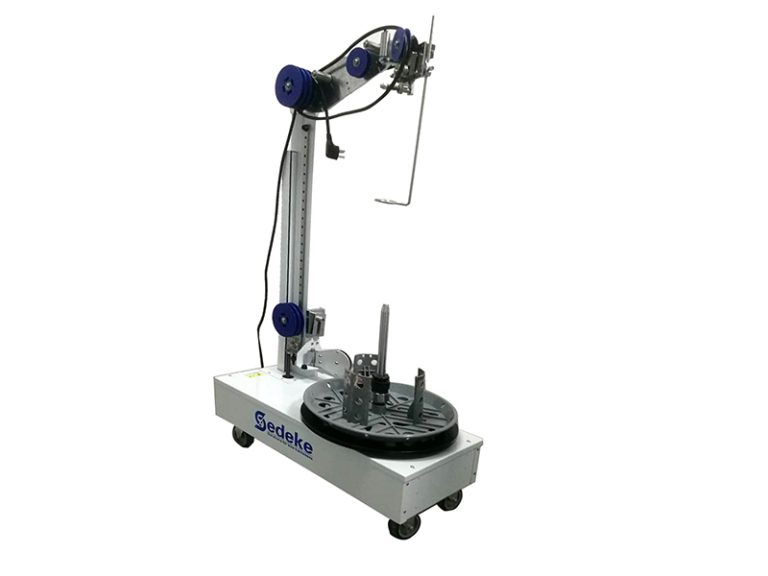

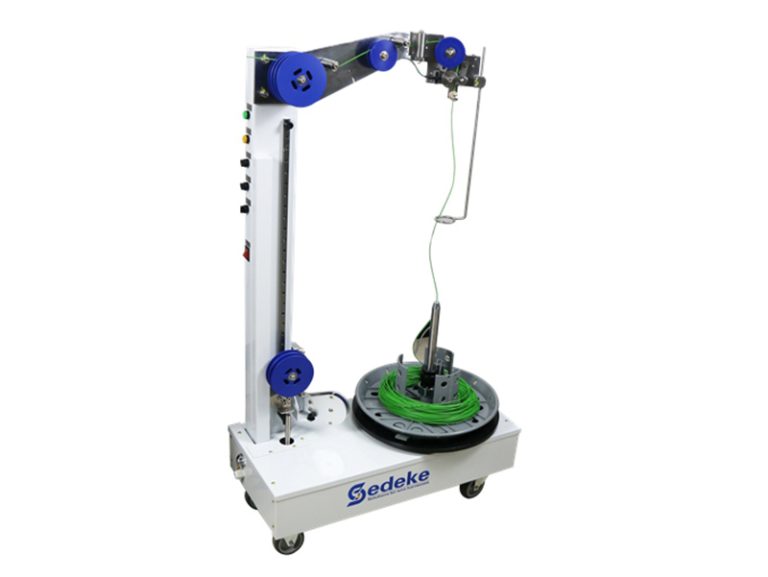

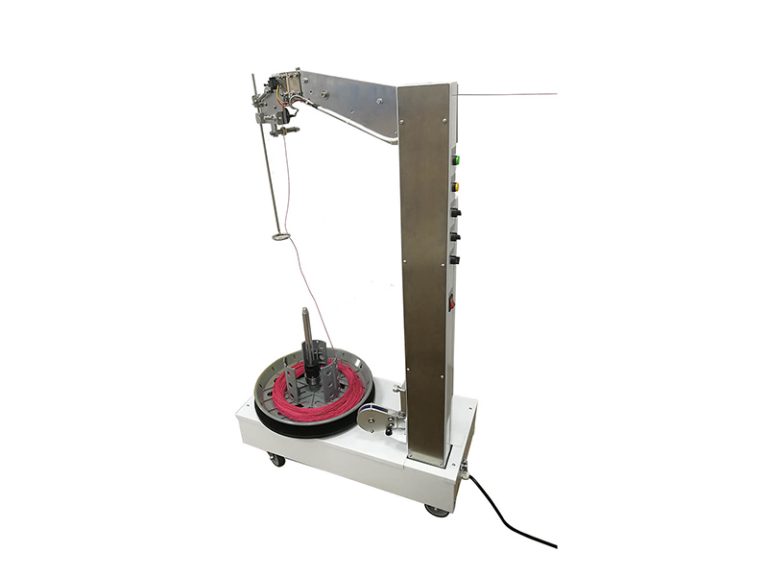

Model | PF-08 | ||
Function | Prefeeding wires/cables | ||
Speed rate | Max. Speed 8m/s | ||
Application range | Reel wire | AWG36~10, Wire OD≤5mm; Reel OD 130~300mm, center hole OD 20~45mm Height≤ 200mm | |
Roll wire | AWG28~16, OD≤400mm | ||
Loading weight | 30Kg | ||
Control mode | Full digital control | ||
Power supply | Single-phase AC220V | ||
Operating temperature range | 15ºC-30ºC | ||
Operating humidity range | 30%~80%RH | ||
Warranty | 2000 hrs or 1year (Except consumable parts) | ||
Dimensions | 736W×380D×1175H | ||
Weight | 45kg |
