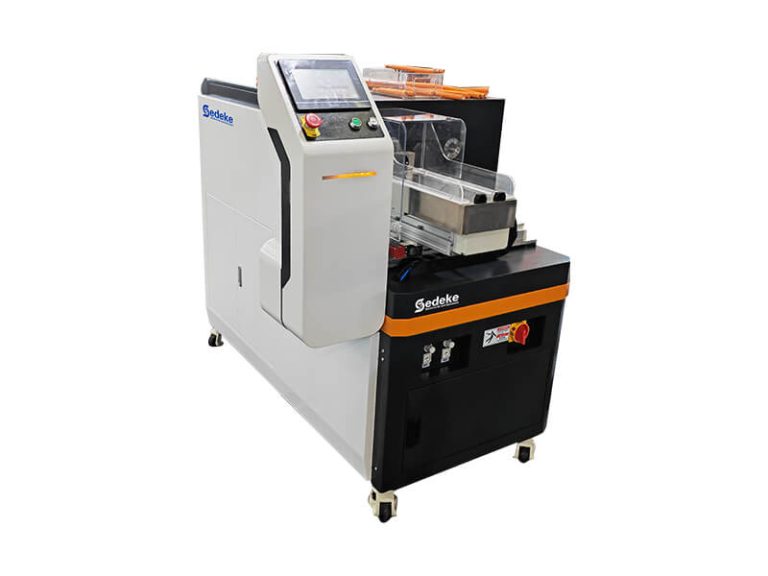

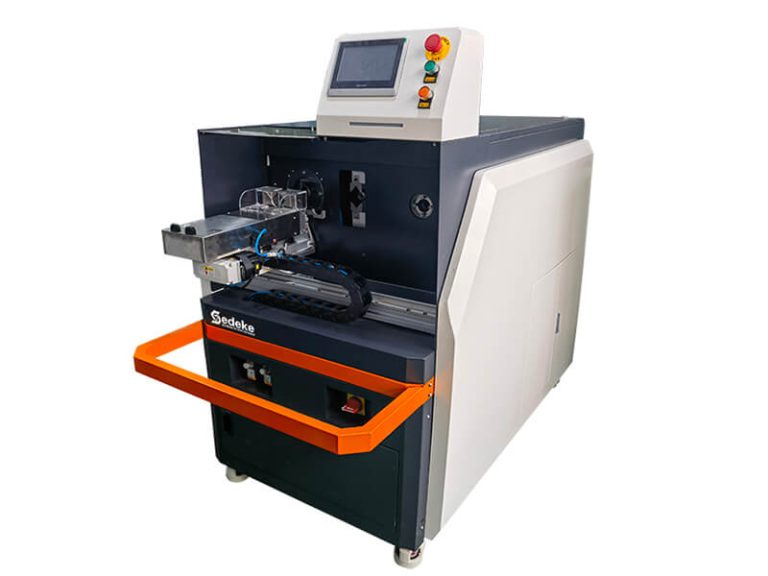

HV-ACS 9300 Automotive High Voltage Cable Processing Machine

HV-ACS 9300 is an automated equipment for processing automotive high voltage cables. It integrates the three processes of stripping the inner and outer insulation layers, cutting the braided shield layer, and turning over the braid shielding layer. It has the characteristics of fast efficiency and high precision.

HV-ACS 9300 automotive high voltage cable processing machine is mainly used for braid shield cutting and folding of new energy harnesses, charging pile harnesses, and braided signal cables.

Share

DESCRIPTION

HV-ACS 9300 is an automated equipment for processing automotive high voltage cables. It integrates the three processes of stripping the inner and outer insulation layers, cutting the braided shield layer, and turning over the braid shielding layer. It has the characteristics of fast efficiency and high precision.

HV-ACS 9300 automotive high voltage cable processing machine is mainly used for braid shield cutting and folding of new energy harnesses, charging pile harnesses, and braided signal cables.

PARAMETERS

Processing range3-70 mm²
Stripping length of jacket / inner insulation1-100mm
Cuuting shield length5-100mm
Power3000w
Voltage220v 50/60Hz
Air supply0.6Mpa
Storage100
Weight260kg
Dimensions (L x W x H)1200x 1550 x 1300 mm
