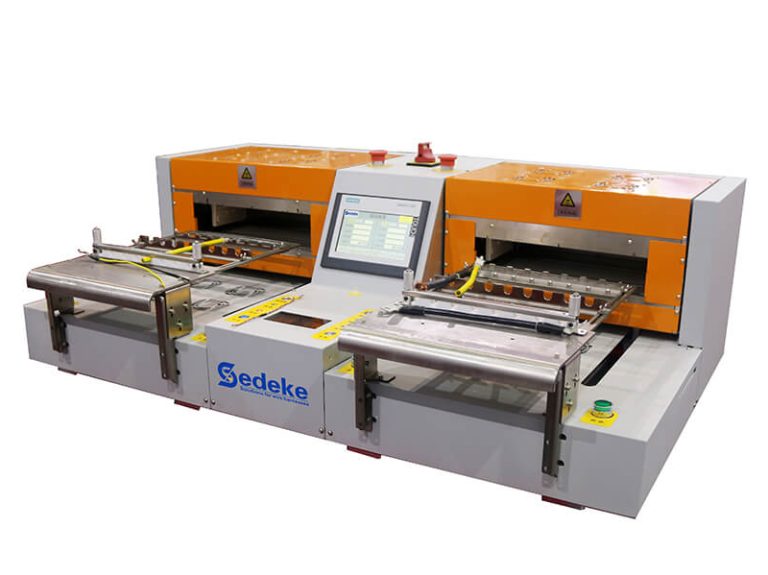

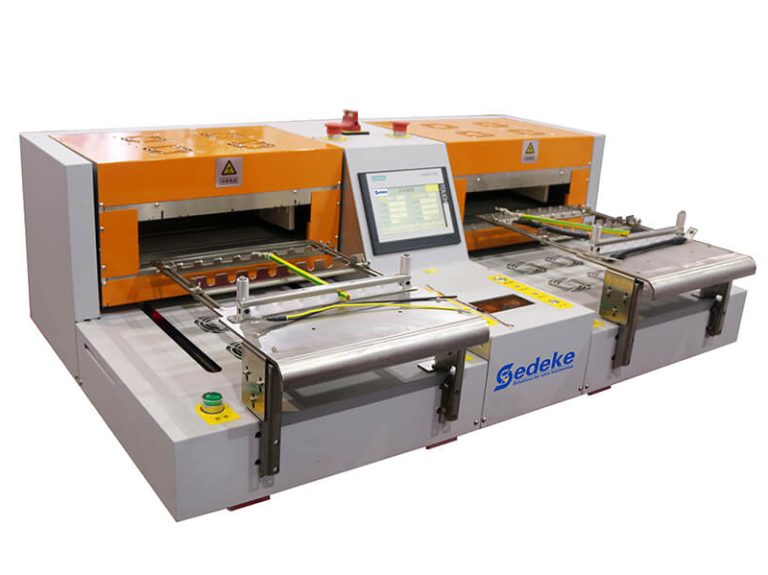

HSM-90 Heat Shrink Tube Processing Machine

  • Model: HSM-90
  • Width of Heating Panel: Max. 300mm
  • Section Area of Harness: Max. 120mm²
  • Outer Diameter of Tube: Max. 35mm
Share

DESCRIPTION

The haet shrink tube processing machine applies to the heating and shrinking of annular terminal, end connector and tubular terminal.
HSM-90: The wire harness move. But the heating module does not move.
HSM-90S: The wire harness does not move. But the heating module move.

Both sides of the machine can work in turn with 5-10 pieces of harness in each side.
The machine can be heated at very high speed with good thermal compensation.
With advanced thermal infrared radiation technology (wave length 3~6um), the heat absorption is highly efficient, evenly and compact. The parameters can be adjusted to meet different technological requirements of shrinkable tube.
Adjustable parameters: heated temperature; shrinking time, etc..

1.Both sides of the working stations of the machine can work independently.
2.The distance among the thermal infrared modules can be adjusted to fit different diameters of the harnesses.
3.There is administrator function in the parameter setting panel.
4.Easy operation ensures high production efficiency.
5.The positioning fixture of the wires needs to be customized.

FEATURE

High Compatible Degree of Harness
Adjustment of the height of heating module can help the machine heat harness which section area is between 2.5-120 square mm. The maximum width of the tube is 35mm.
Good Thermal Compensation
With high power, the machine has  good thermal compensation quickly.
Good Quality of Heating and Shrinking
After the heating and shrinking process is completed, the glue is evenly distributed, the tube is cooled enough and the harnesses do not adhere one another.
Multi-Protection
There are several ways to protect the heating module. Especially, there are protections when the machine crashes or is powered off.
Communication and Storage
The machine supports 485, internet, and USB communication and can communicate with MES system to realize intelligent production. The temperature data can be stored and be output in 14 days.

PARAMETER

ModelHSM-90HSM-90S
Dimension1200*600*340mm1220*900*400mm
Input Voltage380V AC380V AC
Thermal TemperatureMax 600℃Max 600℃
Maximum Power4000W8500W
Width of Heating PanelMax. 300mmMax. 300mm
Section Area of HarnessMax. 120mm²Max. 240mm²
Outer Diameter of TubeMax. 35mmMax. 40mm

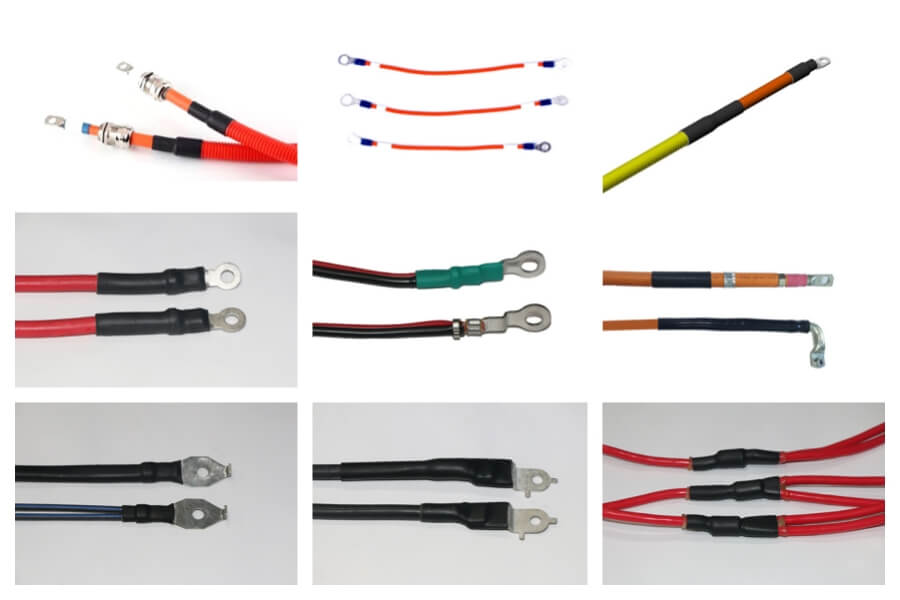

APPLICATION
