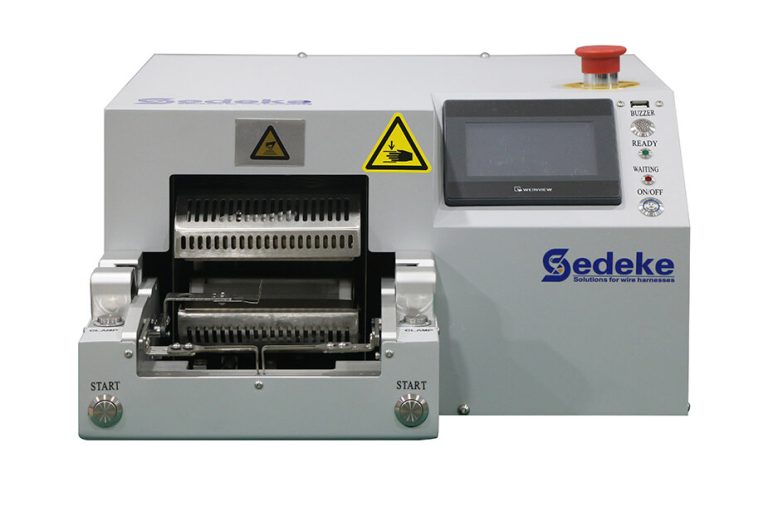

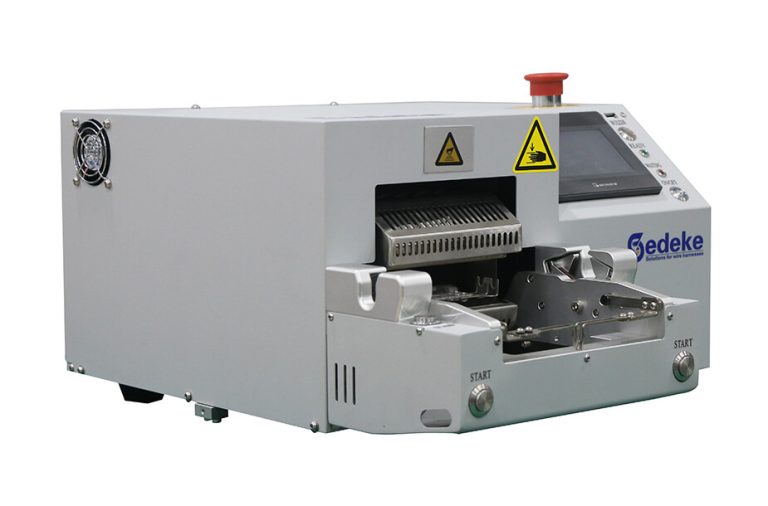

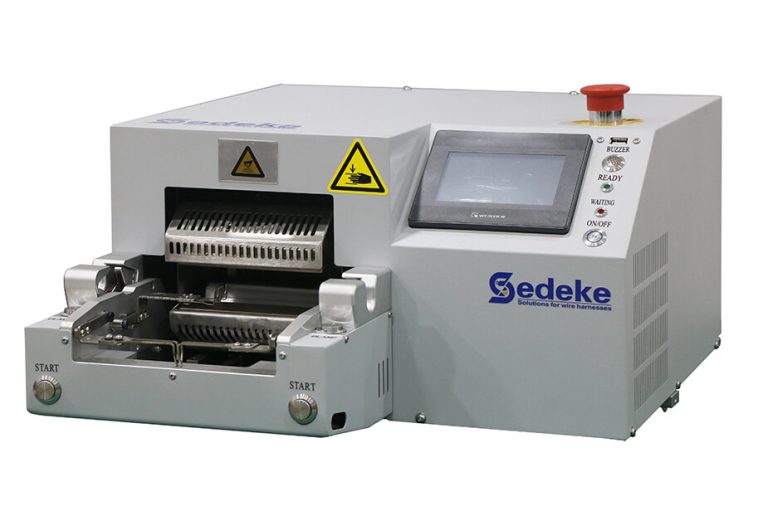

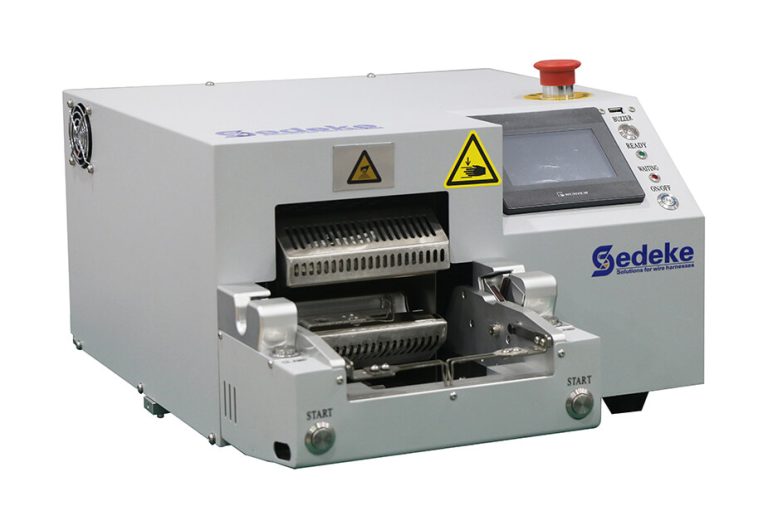

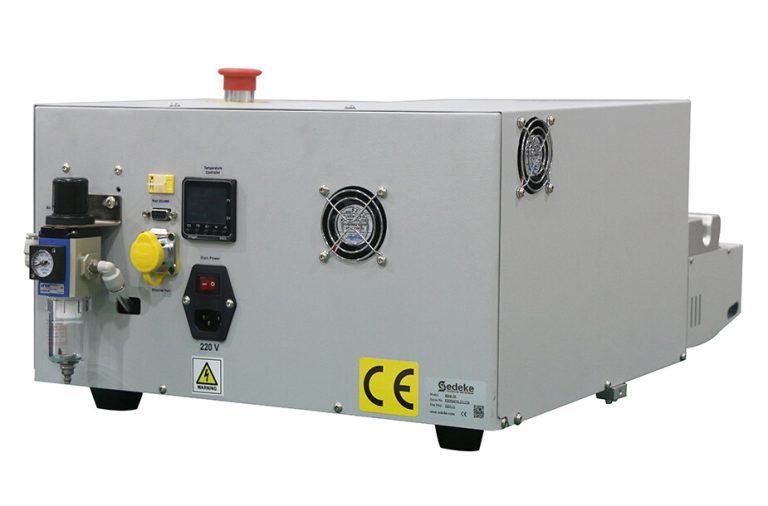

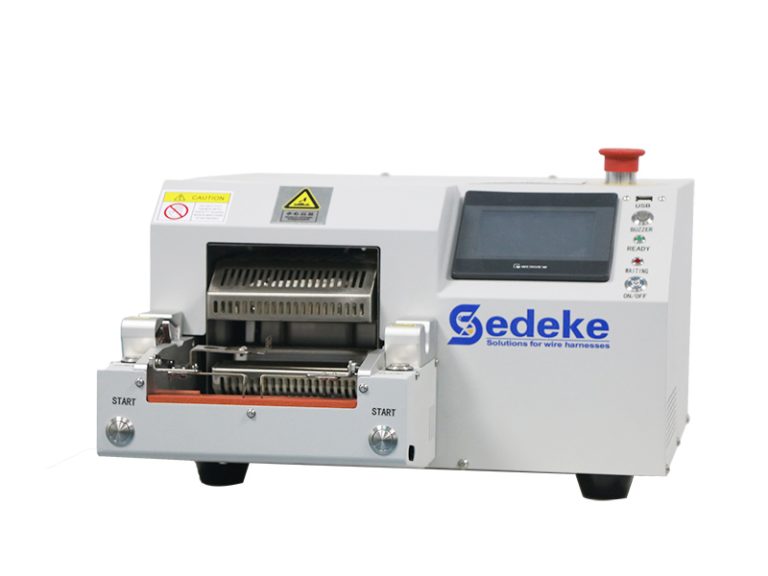

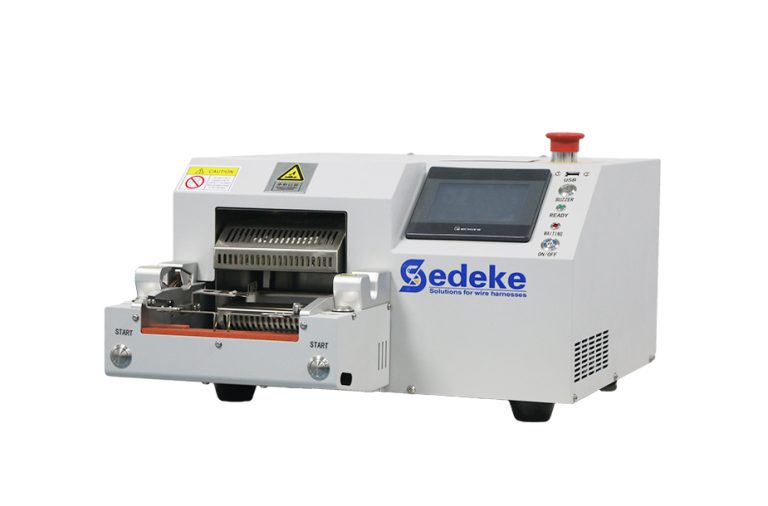

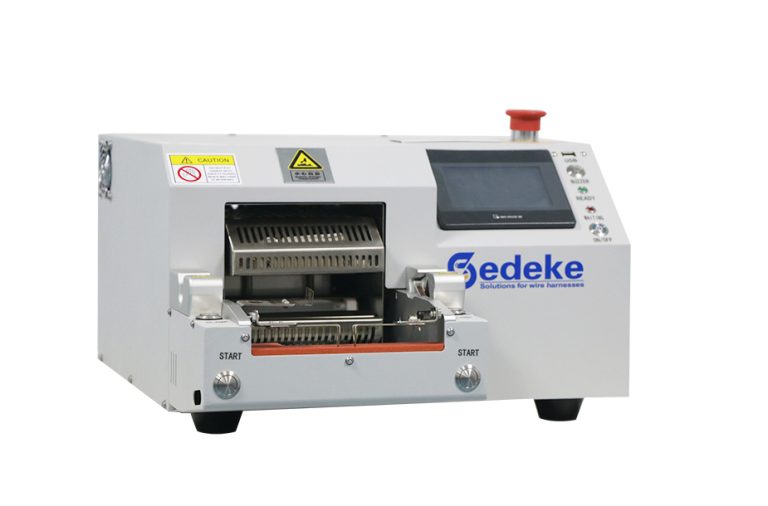

HSM-70 Heat Shrink Tube Processing Machine

  • Model: HSM-70
  • Input Voltage: 110V/220V AC
  • Width of Heating Antrum: 90mm
  • Diameter of Heating Antrum: 40mm
Share

DESCRIPTION

The HSM-70 heat shrink tubing processing machine is used to heat single or two-piece-of-harness; the machine can be heated at very high speed with good thermal compensation; the portable structure applies to narrow or moving working space. With advanced thermal infrared radiation technology, the heat absorption is highly efficient, evenly and compact. The parameters can be adjusted to meet different technological requirements of heating tube.

1.Not only one harness can be heated , but also two harness can be heated simultaneously.
2.The machine is easy to be operated with the touch screen.
3.There is administrator function in the parameter setting panel.
4.The shrinking effect is good and the harnesses do not adhere one another.
5.Good safety protection.
6. Self temperature correction of the machine.
7.Easy operation ensures high production efficiency.

FEATURE

Good Thermal Compensation
With high power, the machine has a fast thermal compensation quickly.
Good Shrinking Quality
After the heating and shrinking process is completed, the glue melted evenly , the tube is cooled enough and the harnesses do  not adhere one another.
Multi-Protection
There are several ways to protect the heating module. Especially, there are protections when the machine crashes or is powered off.
Communication and Storage
The machine supports 485, internet, and USB communication and can communicate with MES system to realize intelligent production. The temperature data can be stored and be output in 14 days.
Automatic temperature correction
After equipped with infrared temperature measuring rod, the temperature correction of heating chamber can be realized.

PARAMETER

ModelHSM-70
Dimension560*430*280mm
Input Voltage110V/220V AC
Thermal Temperature< 650℃
Maximum Power600 W
Width of Heating Antrum90mm
Diameter of Heating Antrum40mm
Diameter of Tube< 20mm
Length of Tube<75mm

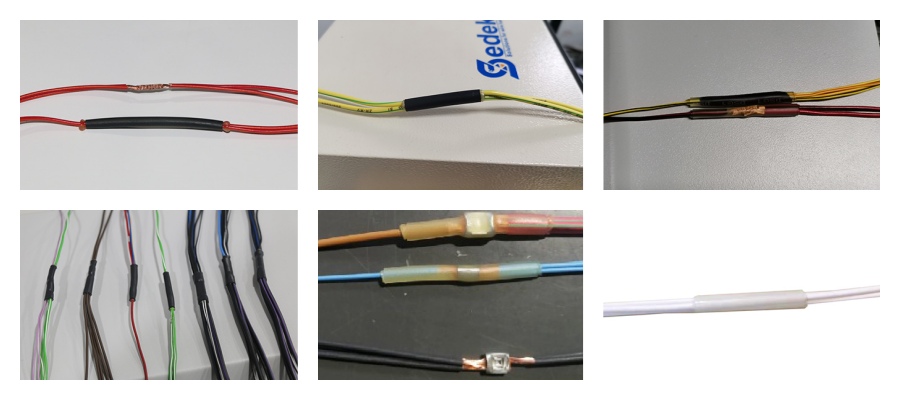

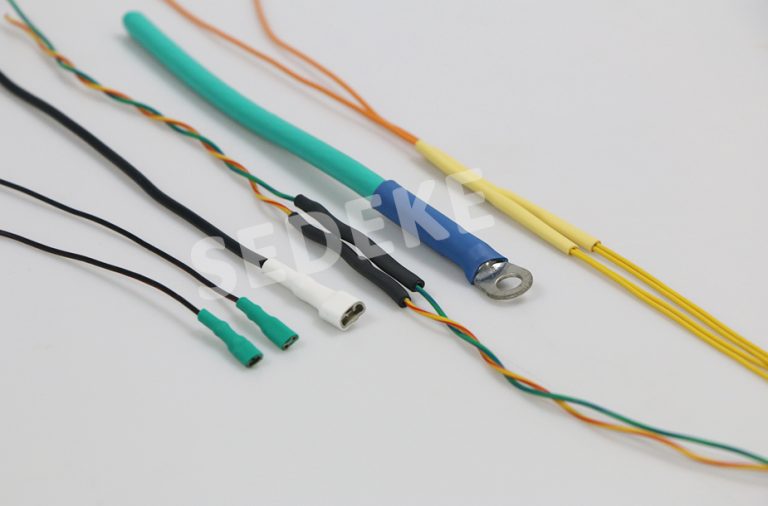

APPLICATION
