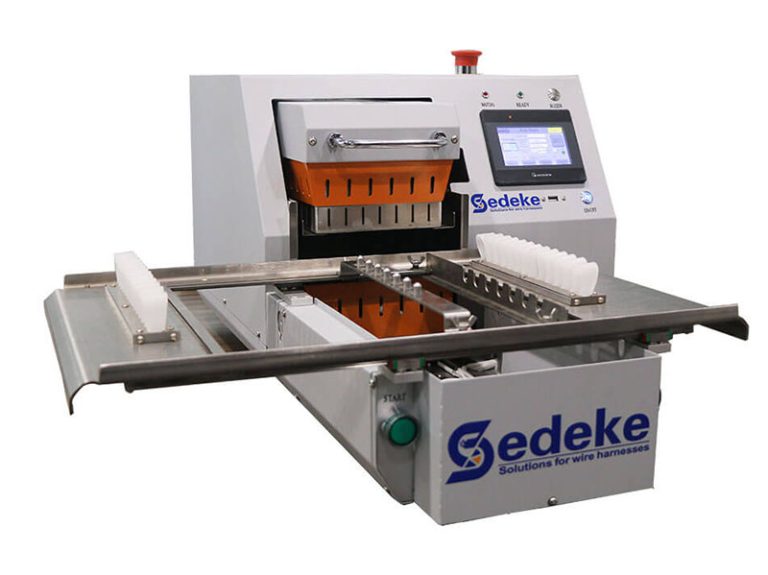

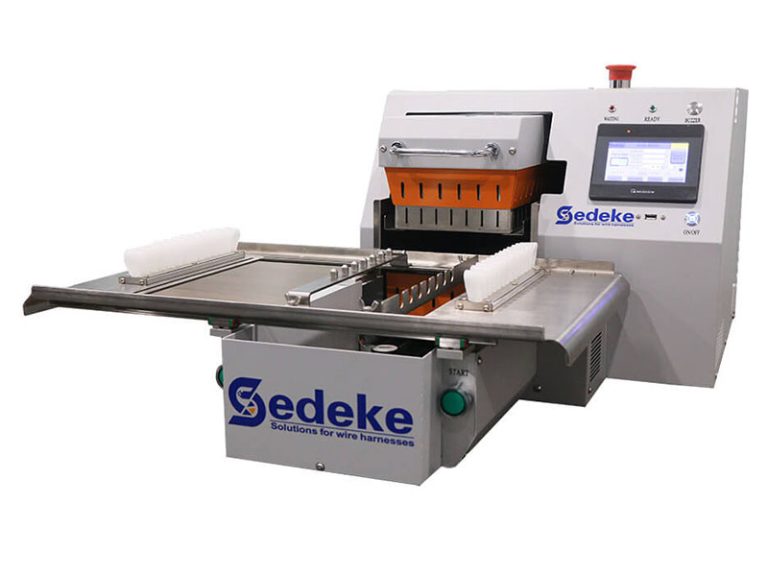

HSM-25M Heat Shrink Tube Processing Machine

DESCRIPTION

The HSM-25M heating machine is suitable for heat shrinking processes where the heat shrink tube is located in the middle or at the head of the wire harness; the heating cavity can move along the Y-axis, and the wire harness bracket can move along the X-axis; multiple wire harnesses can be placed at a time;
The machine heats up quickly and has good thermal compensation effect; the heat shrinkable tube has high heat absorption efficiency, uniform and tight heat shrinkage, and good processing consistency. Each parameter is adjustable and can adapt to the process requirements of different heat shrink tubes.
1. High degree of automation and high production efficiency;
2. Parameter setting: shrinkage temperature, cooling time;
3. Adapt to different wire diameters and different heat shrinkable tubes;
4. The parameter setting interface has administrator authority;
5. The positioning fixture for the wiring harness needs to be customized.

FEATURE

This machine makes shrinking more efficient, more uniform, tighter and safer.
Multi-tube heat shrink
For the heat-shrinkable tube in the middle position, multiple wires can be heat-shrinked at the same time
High process compatibility
It can heat the heat-shrinkable tube in the middle of the wire harness; the processing wire diameter is 2.5-120mm2; it can heat the heat-shrinkable tube with a long distance; through the program setting, it can realize multi-stage and complex heating process.
Good temperature compensation effect
Sufficient machine power, fast thermal compensation
Good shrinkage and cooling quality
After the heat shrink is completed, the glue is evenly released, the fan is fully cooled, and the wire harnesses are not adhered to each other.
Support communication and data storage
Support 485, network port communication, can be docked with MES system to realize intelligent production; temperature data is stored for 14 days, and can be viewed and exported at any time.
