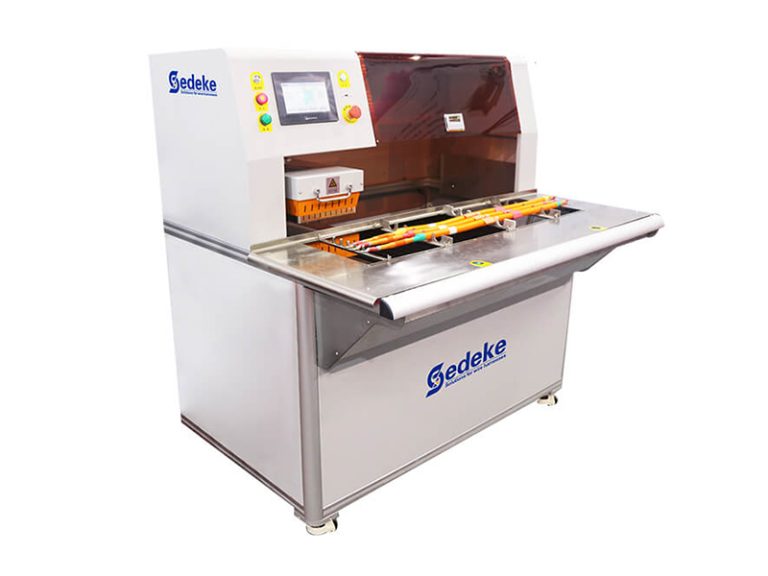

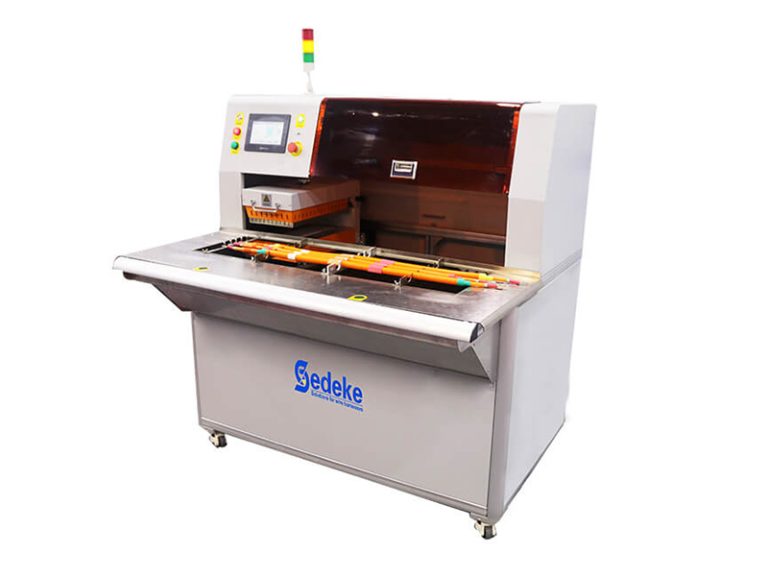

HSM-120 heat shrink tube heating machine is suitable for the heat shrink process in the middle & end of the wire harness. When the machine is working, the wire harness does not move, and the heating module can move in X/Y axis. Multiple wire harnesses can be placed at a time, suitable for multi-position, multi-heat shrink tube baking. The machine heats up quickly, and the thermal compensation effect is good; the heat-absorbing efficiency of the heat-shrinkable tube is high, the heat shrinks evenly and tightly, and the processing consistency is good. Each parameter is adjustable, which can adapt to the technological requirements of different heat shrinkable tubes.
1. High degree of automation and high production efficiency;
2. Parameter setting: walking position, shrinkage temperature, cooling time;
3. Adapt to different wire diameters and different heat shrinkable tubes;
4. The parameter setting interface has administrator authority;
5. The positioning fixture for the wiring harness needs to be customized.
The HSM-120 heat shrink tube processing machine makes heat shrink more efficient, more uniform, tighter and safer.
Multi-point heat shrink
For multi-position heat-shrinkable tubes, it can automatically move and shrink
High process compatibility
It can process the heat-shrinkable tube in the middle of the heat-shrinkable position; the wire diameter ranges from 2.5 to 240mm2; it can bake ultra-long-distance heat-shrinkable tubes; through program settings, it can realize multi-stage and complex heating processes.
Good temperature compensation effect
Sufficient machine power, fast thermal compensation
Good shrinkage and cooling quality
After the heat shrink is completed, the glue is evenly released, the fan is fully cooled, and the wire harnesses are not adhered to each other.
Support communication and data storage
Support 485, network port communication, can be docked with MES system to realize intelligent production; temperature data is stored for 14 days, and can be viewed and exported at any time.
Dimensions | 1100*800*1600mm |
Input voltage | 220V AC |
Heat shrinkage temperature | Max. 650℃ |
Max. power | 2000 W |
Wire Processing Range | Max. 240mm2 |
Width of heat shrinkable cavity | 300mm |
OD of heat shrink tube | Max. 50mm |
Length of heat shrink tube | Max. 70mm/120mm |
Max. heat shrinkage distance | 750mm |
