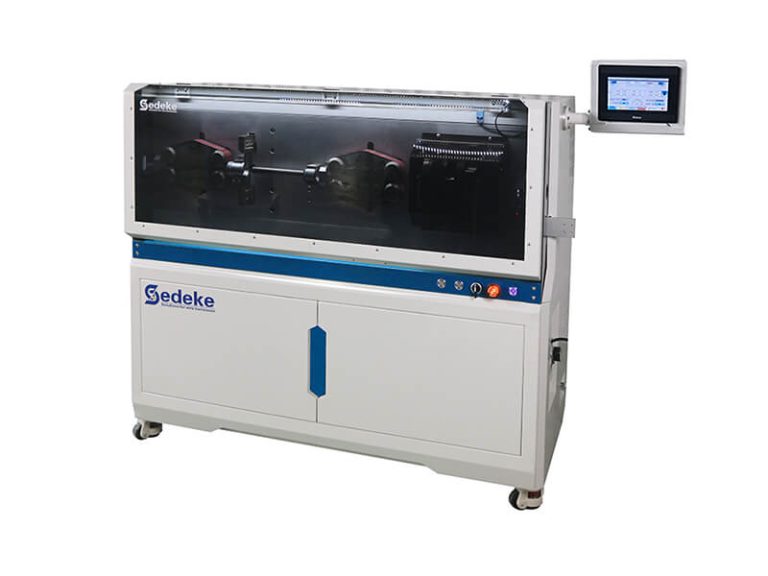

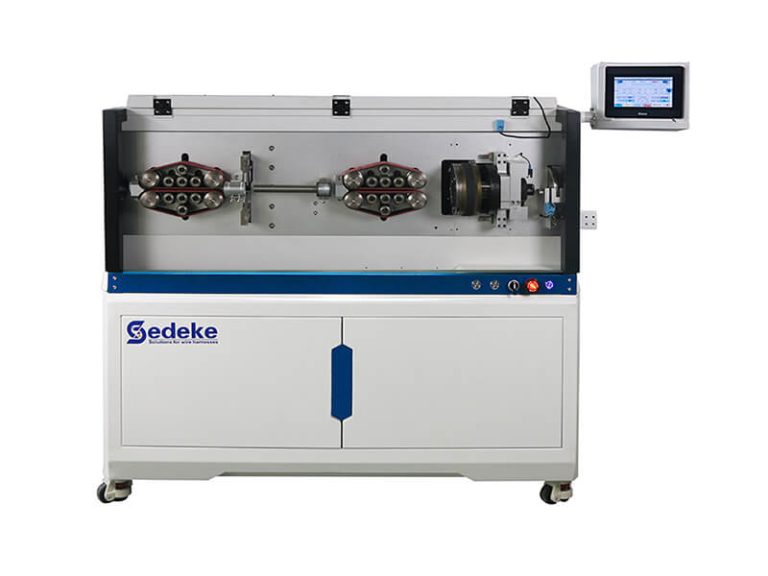

ESC-BXSNY Automatic Rotary Cable Stripping Machine

  • Model: ESC-BX30SNY
  • Display:  7 inch touch screen
  • Processing range: 0.75-30mm²
  • Max. diameter of the conduit: Φ18mm
Share

DESCRIPTION

Sedeke ESC-BXSNY series automatic cutting stripping machine adopts rotary stripping system, which is an innovative solution for cutting and stripping cables with high precision and speed.
In addition to their efficiency, wire cutting and rotary stripping machines are also known for their accuracy. They can strip wires and cables with high precision, which is essential in applications where accurate connections are critical.

PARAMETER

ModelESC-BX30SNYESC-BX120SNYESC-BX300SNY
Display7 inch touch screen7 inch touch screen10 inch touch screen
Processing range0.75 - 30mm²6 - 120mm²30 - 300mm²
Max. diameter of the conduitΦ18mmΦ30mmΦ 15-50mm
Stripping lengthFront full stripping: 1-200mmFront half stripping: 1-1500mmFront full stripping: 1-300mmFront half stripping: 1-1000mmFront stripping: 1-1000mm
End full stripping: 1-100mmEnd half stripping: 1-300mmEnd full stripping: 1-150mmEnd half stripping: 1-500mmEnd stripping: 1-300mm
Dimensions (L*W*H)1280*480*1350mm1400*720*1460mm*
Net weight180kg300kg*
Cutting length1mm-999999.99mm
Cutting tolerance≤0.002*L(L=cutting length)
Blade materialHigh-quality high-speed steel
Rotary cutter materialWhite steel / tungsten steel (optional)
Productivity1500PCS/hour          2000PCS/hour        500-1000PCS/hour (depending on the length and size of the cable)
Drive mode16 rollers drive          32 rollers drive        32 rollers drive (feeding-stepper motor, blades-servo motor, rotary cutter-servo motor)
Wire feeding methodBelt feeding, no embossing or scratches on the cable
Lift operation modeDigitally adjust the height of the pressure roller
Power supplyAC220V 50/60Hz; 110V 50/60Hz
Air source0.5Mpa-0.8Mpa

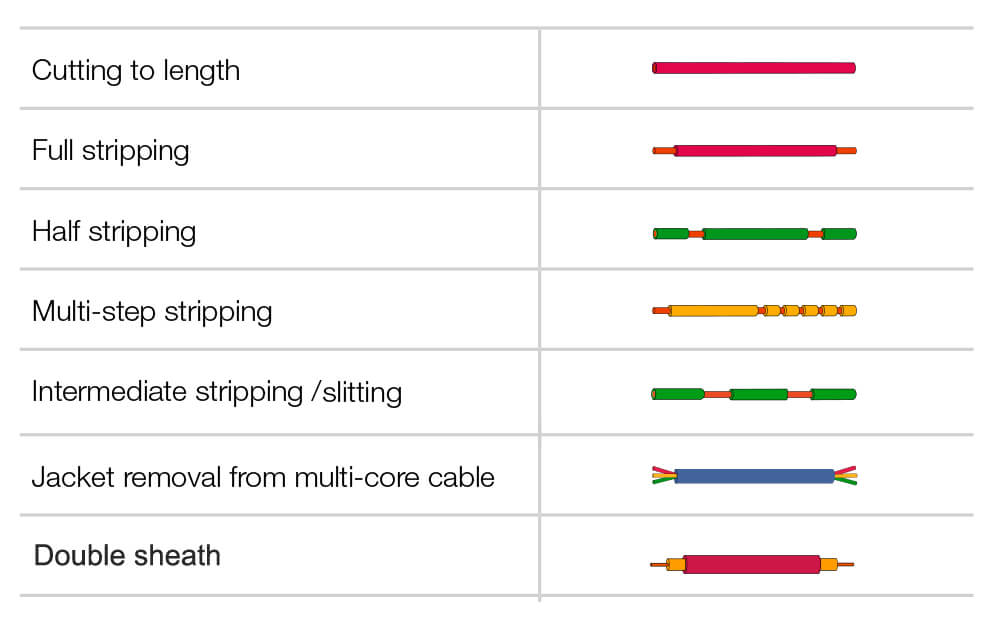

APPLICATION
