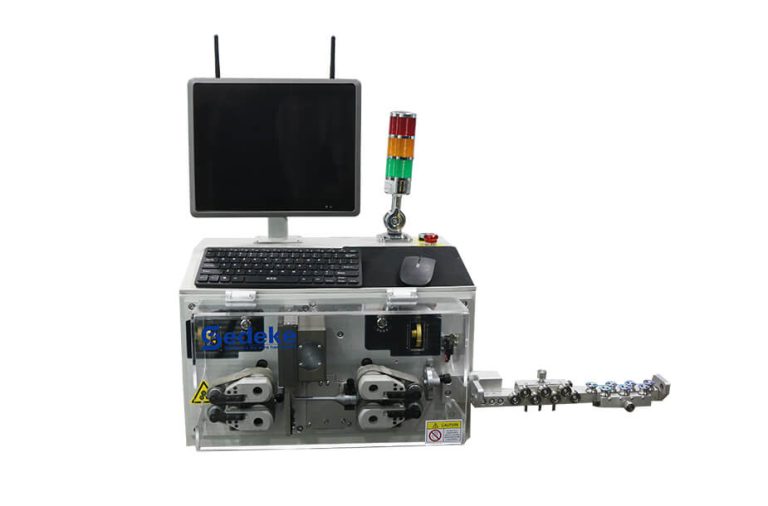

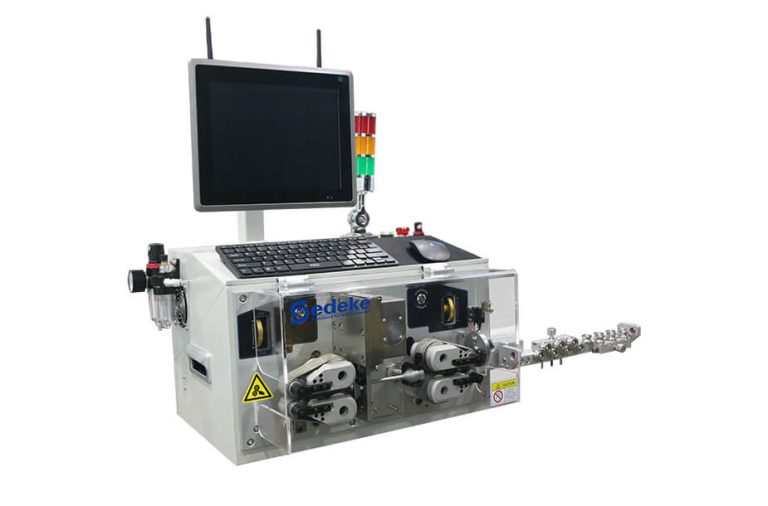

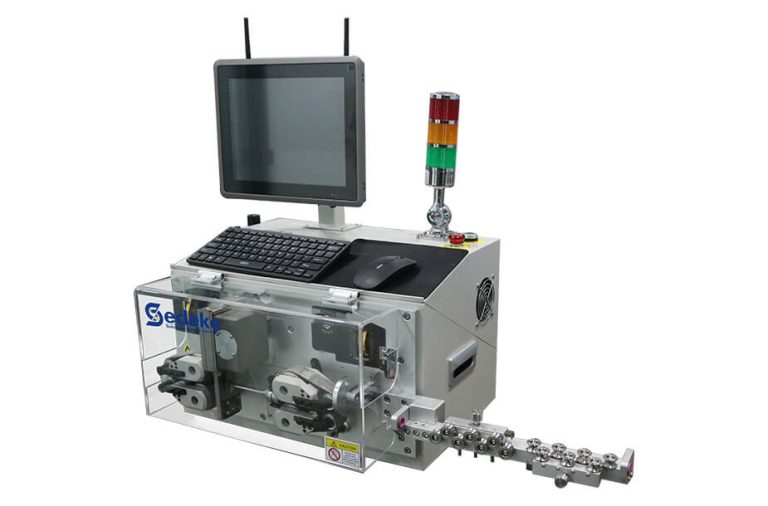

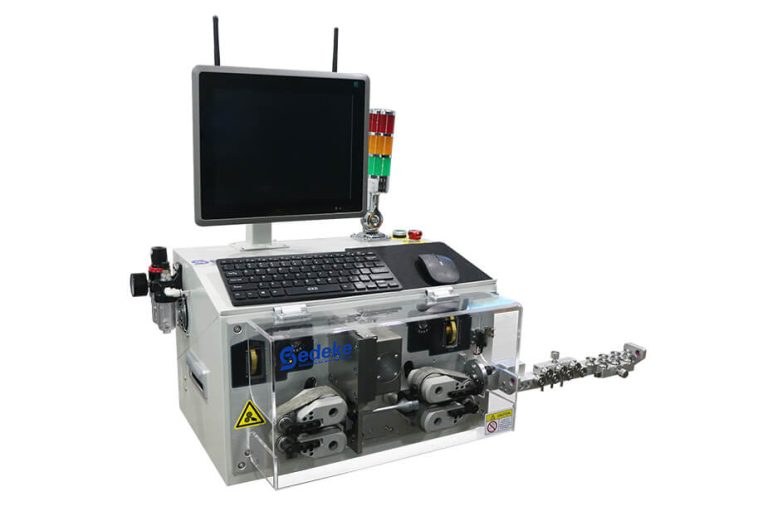

ESC-BX8PR is an advanced wire cutting and stripping machine with high efficiency and precision. This machine weighs 55kg and has a cutting accuracy of less than one thousandth. The machine is designed to handle cables and wires from 0.12mm² to 16mm². The cutting length of this machine is 55-99999.9mm. In addition, its stripping length range is 1-100mm, ensuring that the machine can easily handle stripping requirements.
The ESC-BX8PR is an automated machine that reduces the amount of manual labor required, increases efficiency and reduces the risk of errors. It is easy to operate and requires minimal training, meaning any operator can use it with ease.
This cutting and peeling machine saves time and increases productivity in any industrial environment. With its advanced features and high-quality performance, the ESC-BX8PR is a reliable and efficient choice for all cable and wire cutting and stripping needs.

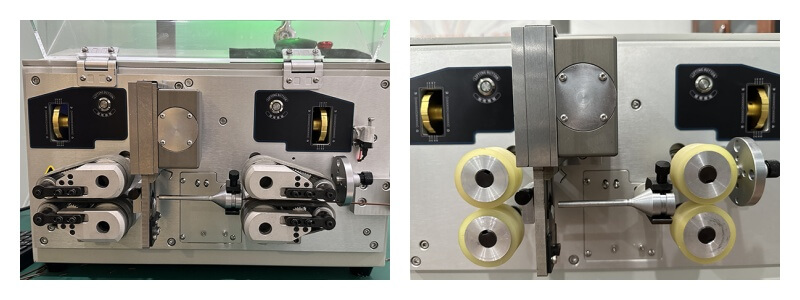

two different feeding method
| Applicable Wire | single core wire |
| Wire Diameter | φ8mm |
| Cross Section Area | 0.12-16mm² |
| Cutting Length | 55-99999.9mm |
| Stripping Length | 1-100mm |
| Cutting Accuracy | ＜one in a thousand |
| Power supply | AC220V50/60HZ |
| Dimension | 500mm*420mm*640mm |
| Weight | 55KG |
| Feeding parts | Standard: Steel wheels. Chargeable options:Rubber wheels or feeding belts can be selected according to actual needs. |
