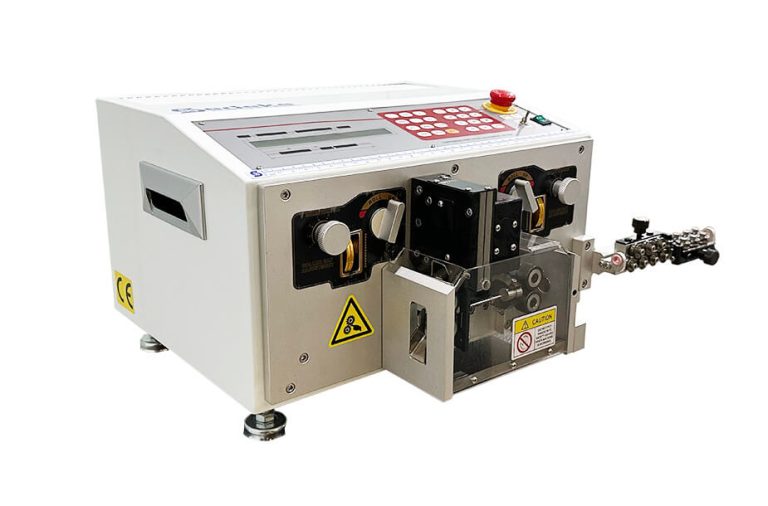

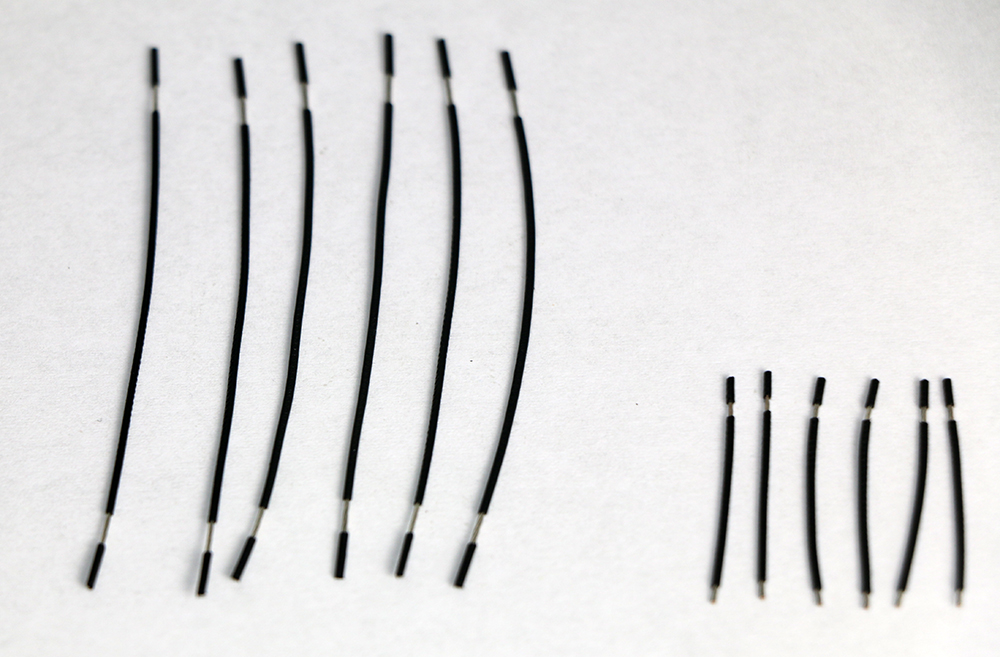

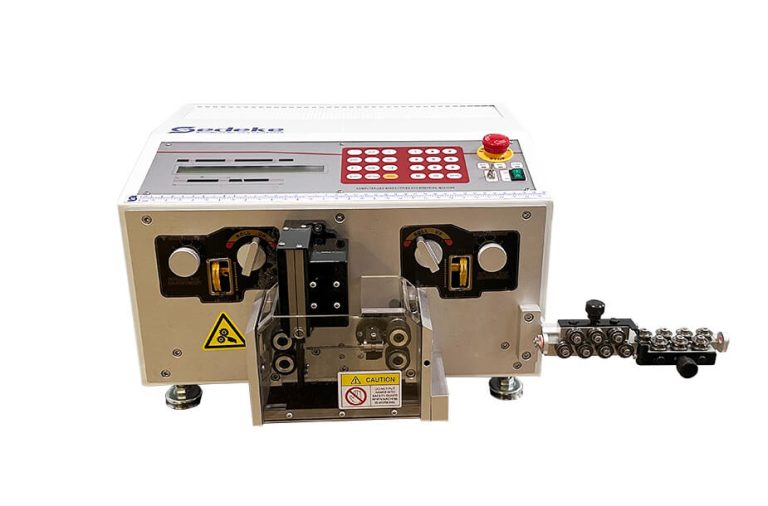

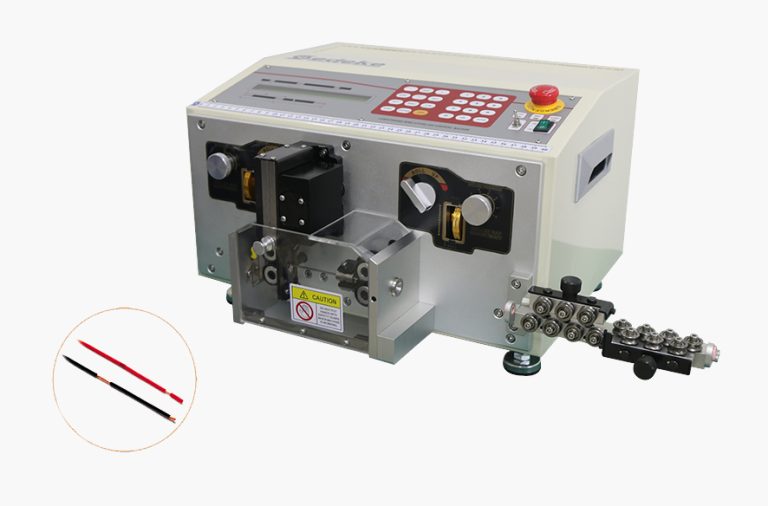

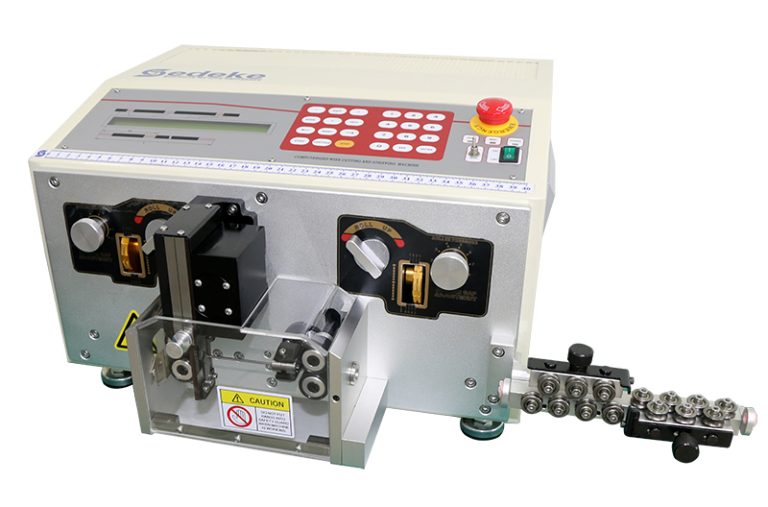

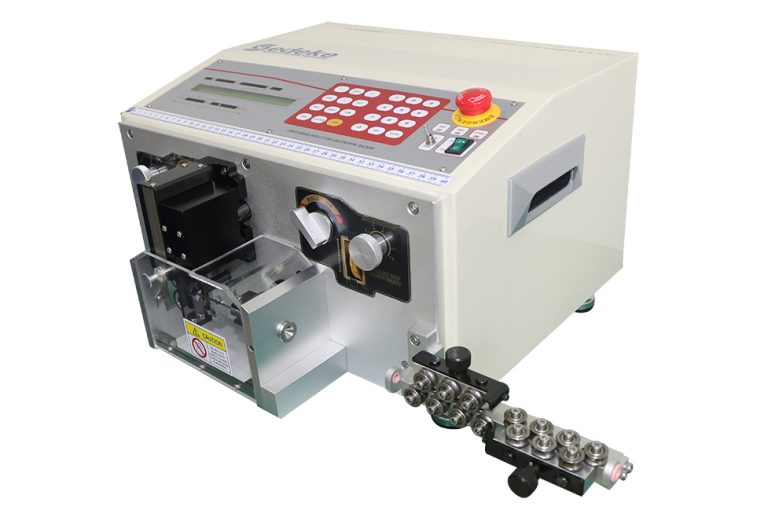

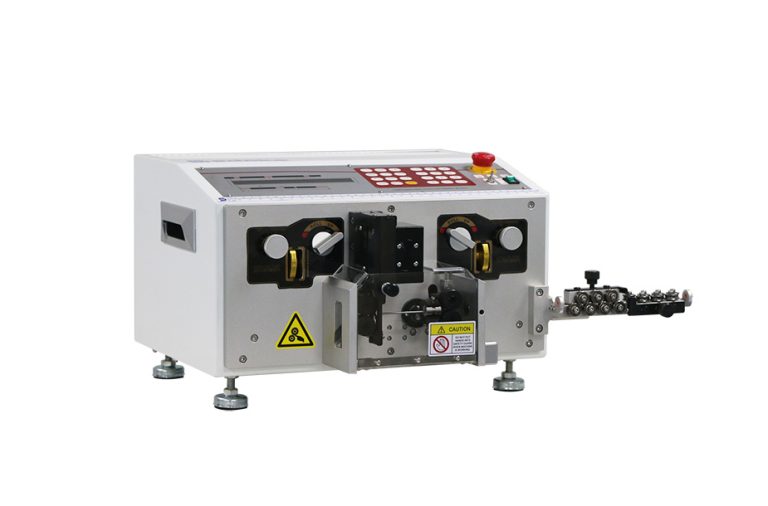

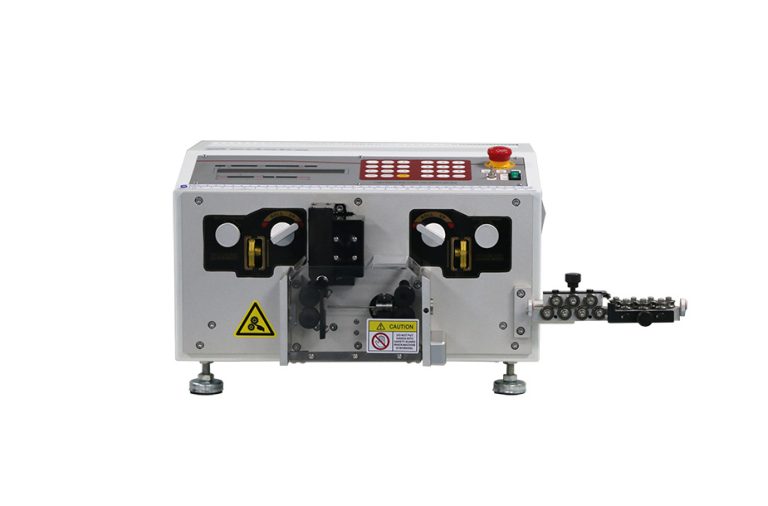

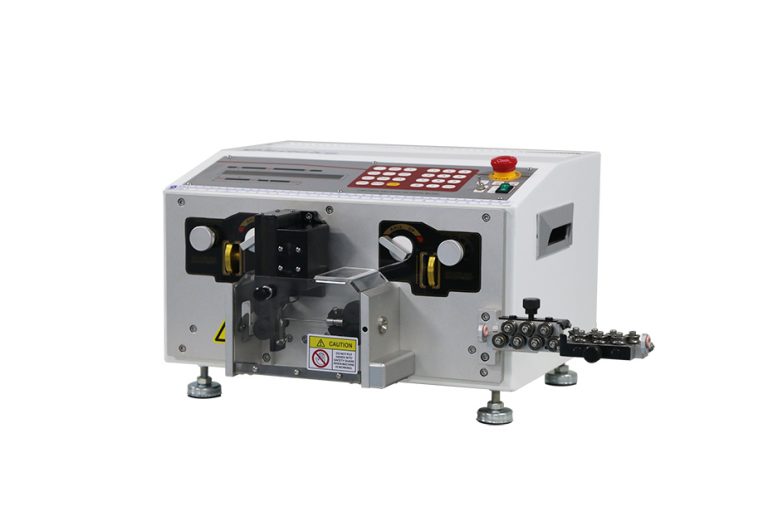

ESC-BX6 automatic cut & strip machine is the professional equipment to process the ultra-fine and ultra-short wires and processing range from AWG#32 to AWG#20.

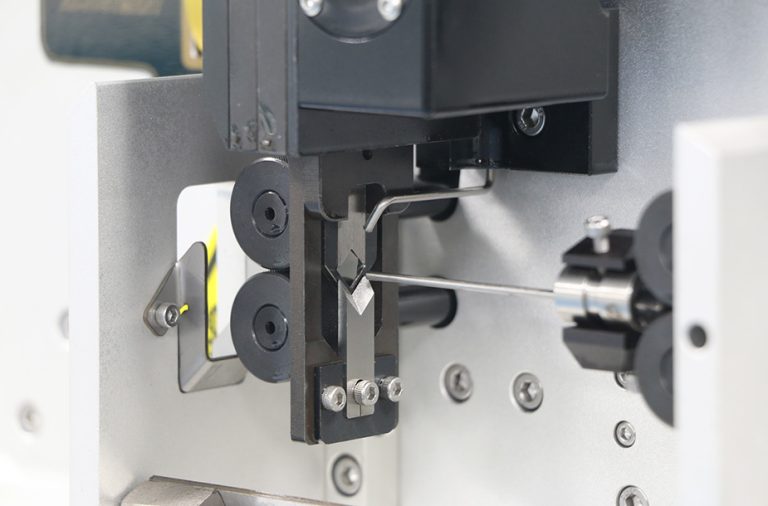

With the 0.05mm pressure gap between the two wheels, it can effectively reduce the embossing of the wire sheath and the processing quality and precision of the wire harness are fully guaranteed.
ESC-BX6 automatic cut & strip machine is the professional equipment to process the ultra-fine and ultra-short wires and processing range from AWG#32 to AWG#20.
With the 0.05mm pressure gap between the two wheels, it can effectively reduce the embossing of the wire sheath and the processing quality and precision of the wire harness are fully guaranteed.
| Wire Range | AWG#32-20 (0.03-0.52mm²) |
| Cutting length | 0.1-99999mm |
| Cutting Accuracy | ±(L×0.2%+0.2)mm |
| Stripping Length | 0.1-30mm |

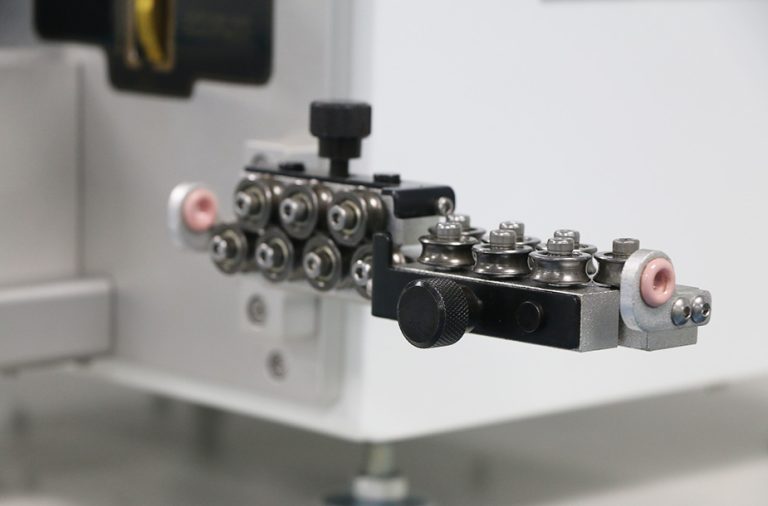

| Feeding system | Rollers |
| Single conductor (1 step) | Yes |
| Efficiency | L=100mm, 90Pcs/min |
| Power Supply | 110/220VAC |
| Power Output | 260W |
| Compressed | 5-6Bar |
| Noise level | <70 dB |
| Dimensions(LxWxH) | 435 x 397 x 280 mm |
| Weight | 38Kg |
