Automatic wire cutting and stripping machine is suitable for wire and cable processing range from AWG#28 to AWG#10.
1. Fast stripping speed.
2. High precision in cutting and stripping.
3. Easy to debug and easy to operate.
Automatic wire cutting and stripping machine is suitable for wire and cable processing range from AWG#28 to AWG#10.
1. Fast stripping speed.
2. High precision in cutting and stripping.
3. Easy to debug and easy to operate.

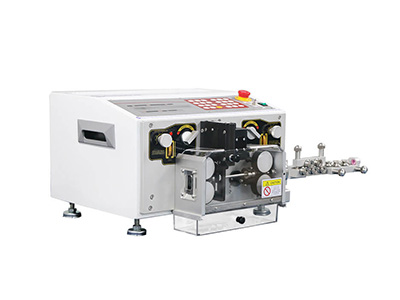

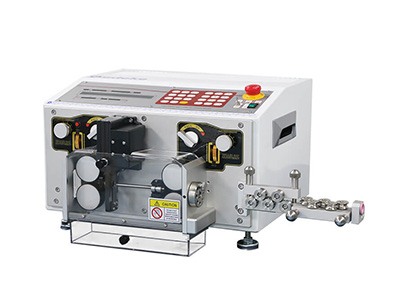

Details Of ESC-BX4 Automatic Wire Cutting Stripping Machine

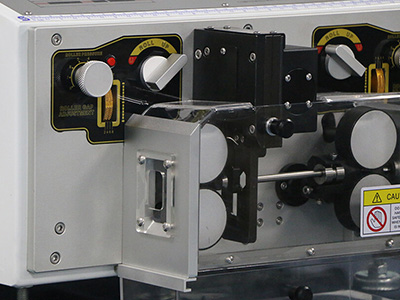

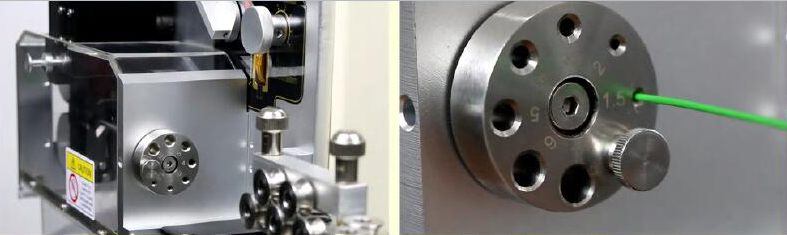

1.Wire Guide Rail For Different Size

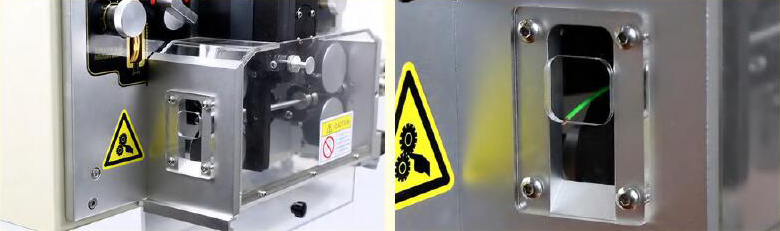

2.Safty Cover For Discharging Part

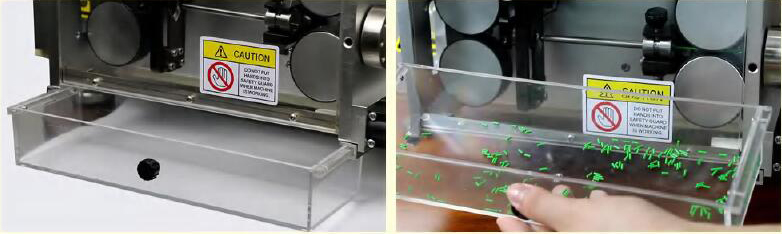

3.Waste Box For Scrap Materials
| Wire Range | AWG#28-10 (0.08-5.26mm²) |
| Cutting length | 0.1-99999mm |
| Cutting Accuracy | ±(L×0.2%+0.2)mm |
| Stripping Length | 0.1-30mm |
| Feeding system | Rollers |
| Single conductor (1 step) | Yes |
| Intermediate Stripping | Yes |
| Efficiency | L=100mm,100Pcs/min |
| Power Supply | 110/220VAC |
| Power Output | 260W |
| Compressed | 5-6Bar |
| Noise level | <70 dB |
| Dimensions(LxWxH) | 435×397x280mm |
| Weight | 38Kg |
