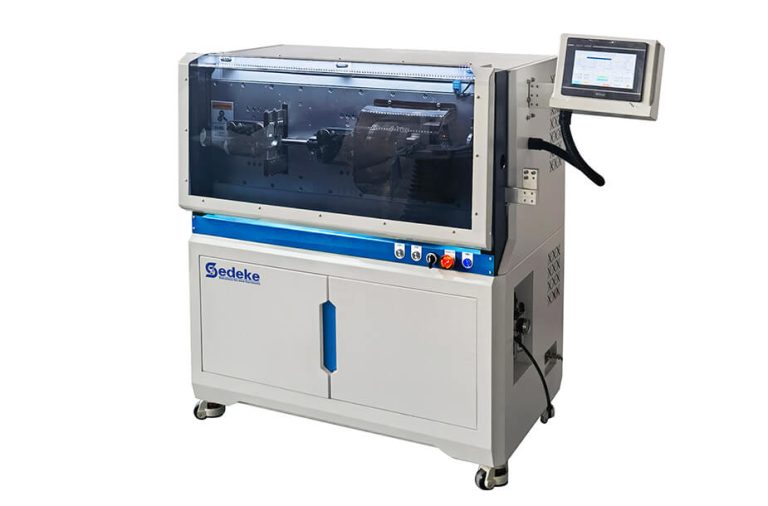

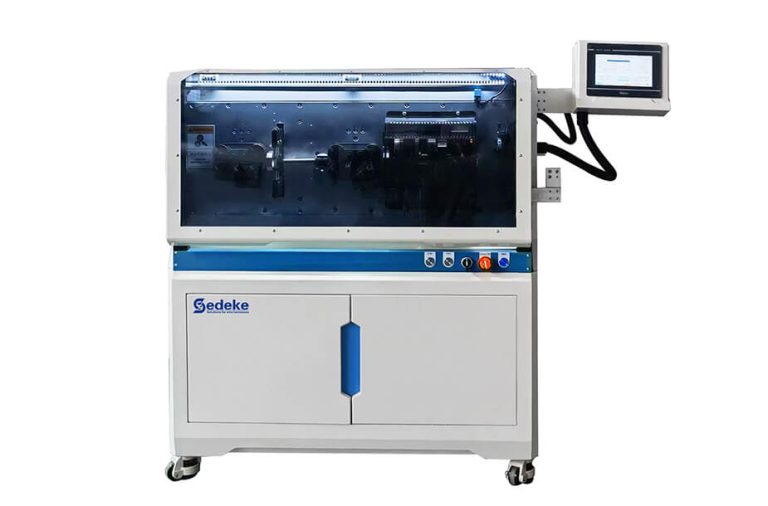

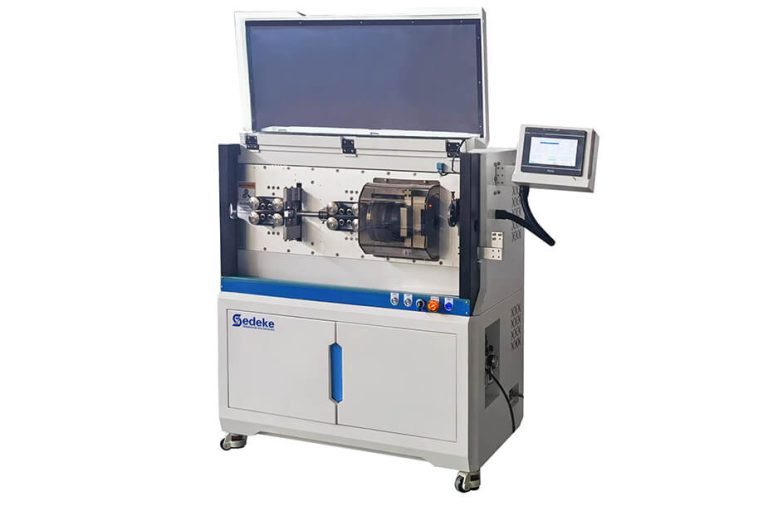

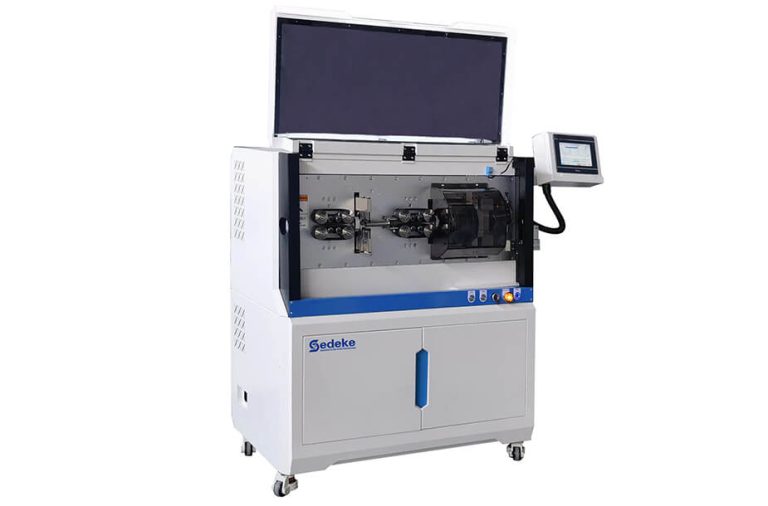

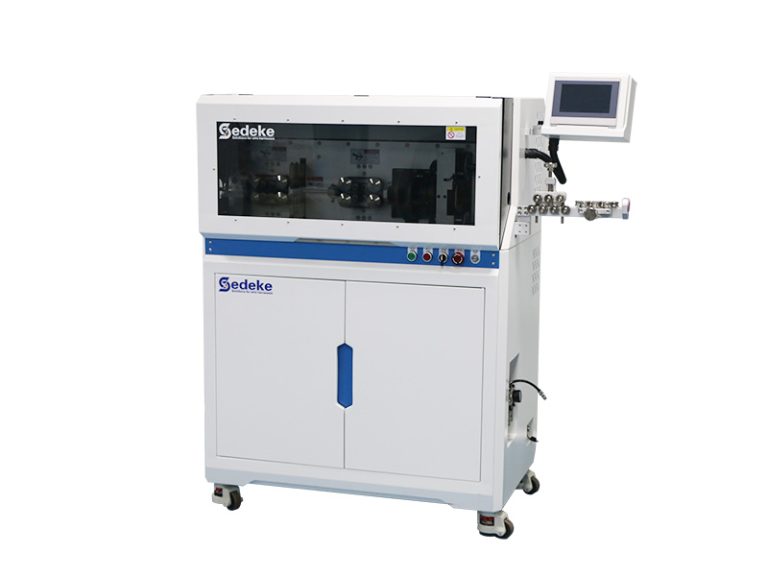

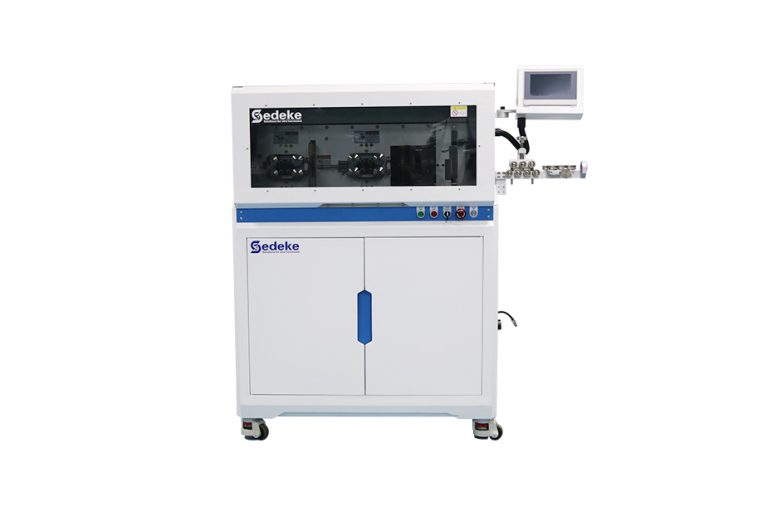

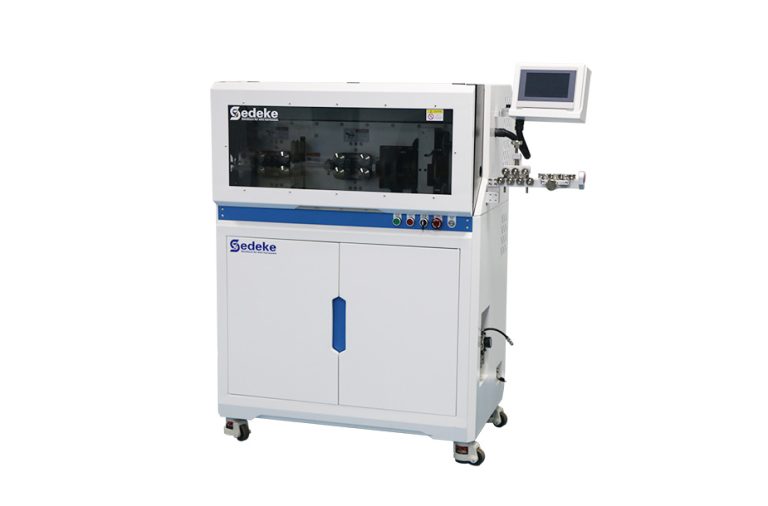

The ESC-BX35R is a new generation of wire harness processing equipment with complete intellectual property rights independently developed by using SM high-speed processors combined with ROTARY strip device.
The machine uses rotary cutting method, without changing the blade, you can cut and strip all different specifications and models of cable wire processing.
It can store 100 groups of processing parameters and recipes.

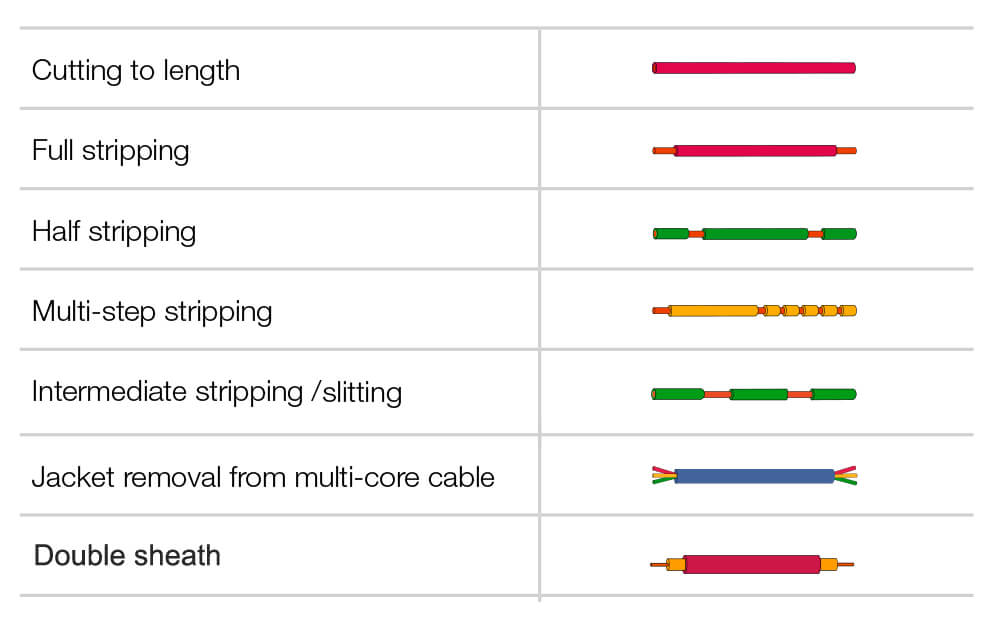

Multi-core sheathed wire, outer insulated stripping, inner core wire stripping and cutting off at one time.
The ESC-BX35R is a new generation of wire harness processing equipment with complete intellectual property rights independently developed by using SM high-speed processors combined with ROTARY strip device.
The machine uses rotary cutting method, without changing the blade, you can cut and strip all different specifications and models of cable wire processing.
It can store 100 groups of processing parameters and recipes.
Multi-core sheathed wire, outer insulated stripping, inner core wire stripping and cutting off at one time.
| Model | ESC-BX35R |
| Display | 7 inch touch screen |
| Processing range | 0.75 - 30mm² |
| Max. diameter of the conduit | Φ18mm |
| Cable type | Single-core wire, multi-core wire, power cord, multi-layer wire, shielded wire, electric wire, etc. |
| Stripping length | Front full stripping: 1-200mm Front half stripping: 1-1500mm |
| End full stripping: 1-100mm End half stripping: 1-300mm | |
| Dimensions (L*W*H) | 1280*480*1350mm |
| Net weight | 180kg |
| Cutting length | 120mm-999999.99mm |
| Cutting tolerance | ≤0.002*L(L=cutting length) |
| Blade material | High-quality high-speed steel |
| Rotary cutter material | White steel / tungsten steel (optional) |
| Productivity | 800-1000PCS/hour (depending on the length and size of the cable) |
| Drive mode | 16 rollers drive (feeding-stepper motor, blades-servo motor, rotary cutter-servo motor) |
| Wire feeding method | Belt feeding, no embossing or scratches on the cable |
| Lift operation mode | Digitally adjust the height of the pressure roller |
| Power supply | AC220V 50/60Hz; 110V 50/60Hz |
| Air source | 0.5Mpa |
