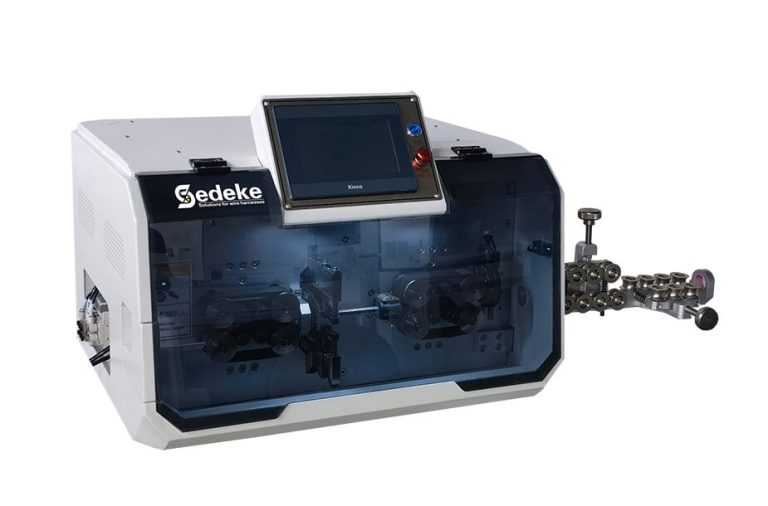

ESC-BX30S Sheathed Cable Cutting and Stripping Machine

This ESC-BX30S automatic sheathed cable cutting and stripping machine is a large diameter cable cutting and stripping machine which is suitable for large diameter wires and multi-core wires.

Share

DESCRIPTION

This ESC-BX30S automatic sheathed cable cutting and stripping machine is a large diameter cable cutting and stripping machine which is suitable for large diameter wires and multi-core wires.
1. Electric wire and cable, automatic cutting and stripping;
2. Multi-core sheathed wire stripping and multi-core wire stripping are completed at one time.

PARAMETER

Display7 inch touch screen
Cable typeCable, PVC, Sheathed cable, Multi-core sheathed cable etc.
Stripping range4-30mm² (including 6 cores sheath cable)
Cutting length1-99999.99mm
Cutting toleranceLess than 0.002*L(L=Cutting length)
Stripping lengthFront stripping: sheath cable full-stripping 10-120mm;
core wire 1-120mm
End stripping: sheath cable full-stripping 10-120mm;
core wire 1-80mm
Max. diameter of the conduitΦ16mm
Blade materialHigh quality imported high speed steel
Production efficiency (pcs/h)2300pcs/h; Sheathed cable 800pcs/h
(depending on length and size of the wire)

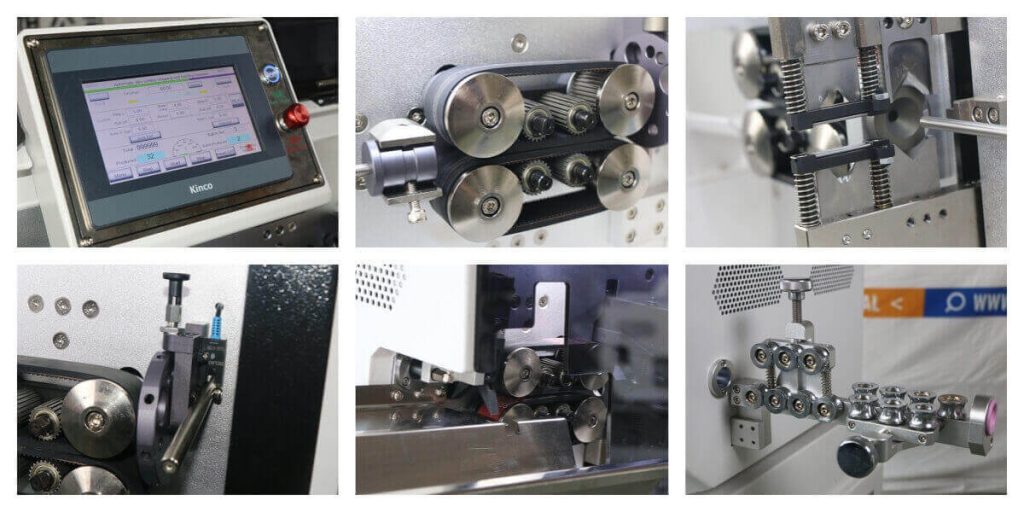

Driving method16 rollers driven (silent hybrid stepping motor, servo tool rest)
Feeding methodBelt feeding wire, no embossing, no scratches
RemarksSpecial cable can be customized,
Need to send a sample wire for testing

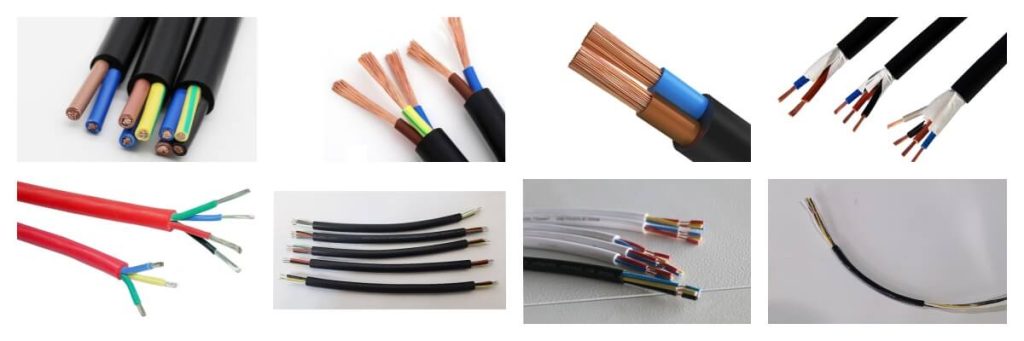

APPLICATION
