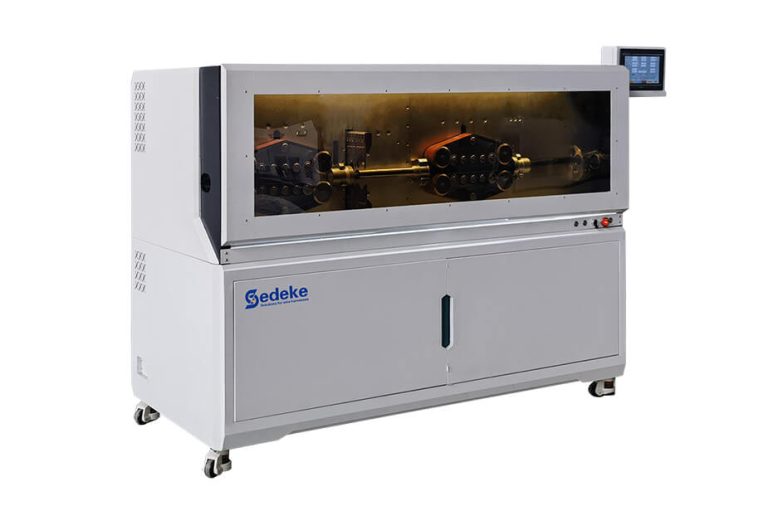

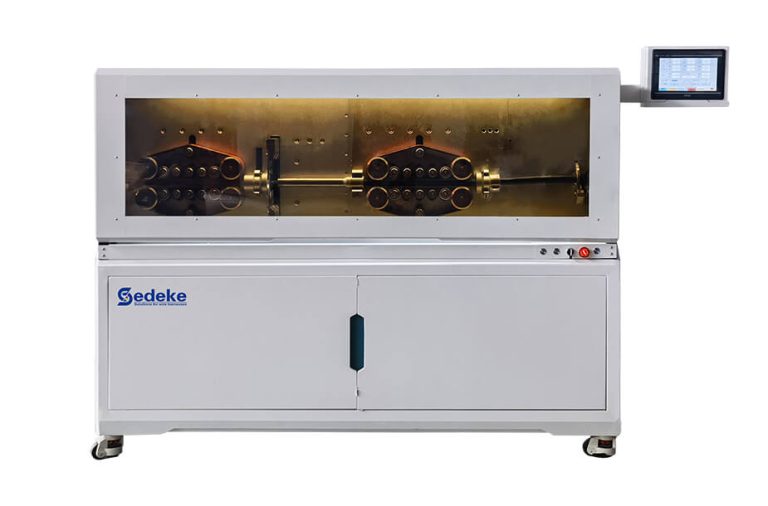

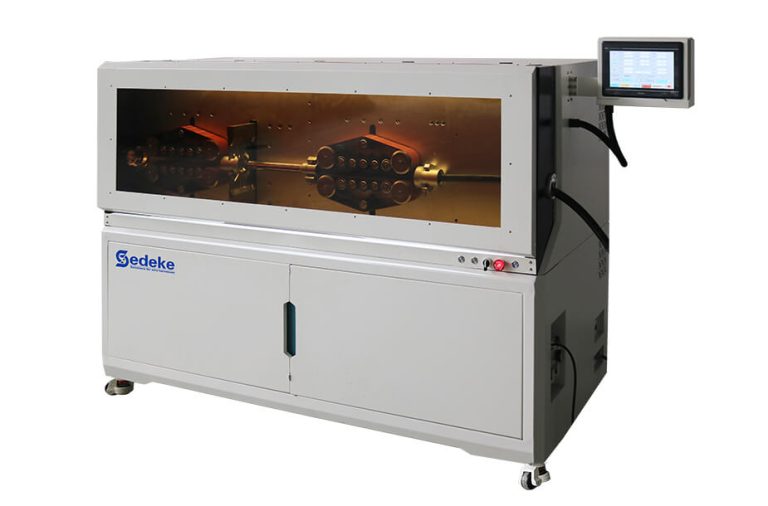

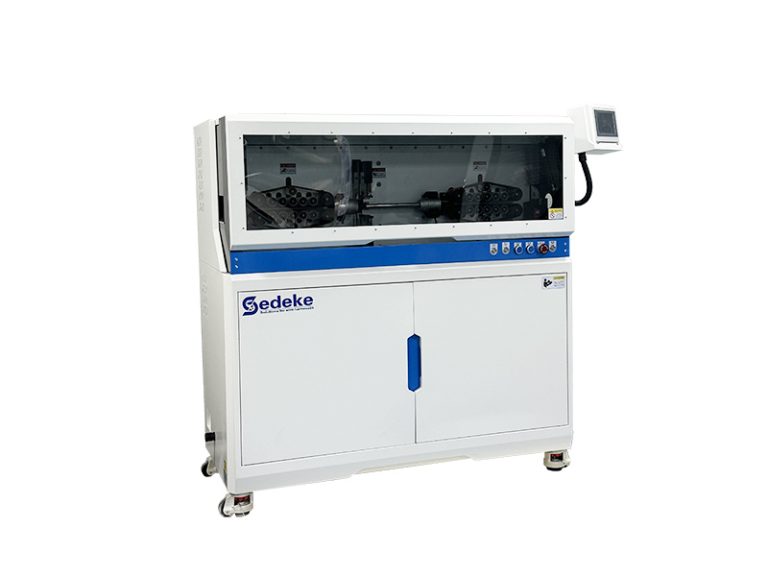

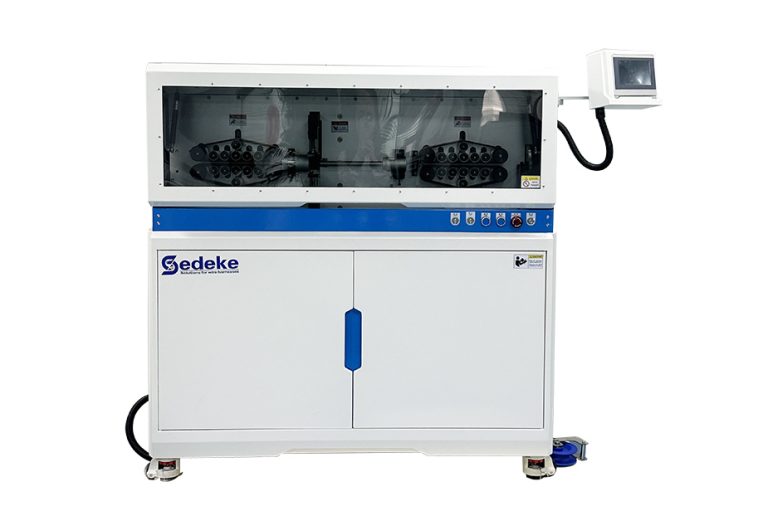

ESC-BX300 Cable Automatic Cutting and Stripping Machine

  • Model: ESC-BX300
  • Display Method: 10 inch true color touch screen
  • Processing range: 30-300mm²
  • Guide Tube Diameter: Max.45mm
Share

DESCRIPTION

ESC-BX300 wire cutting and stripping machine can process cable up to 300mm².

PARAMETER

ModelESC-BX300ESC-BX400
Processing Range30mm2-300mm210mm2-400mm2
Guide Tube DiameterMax.45mmMax.50mm
Productivity(times/hour)500-1000pcs/h(depending on the length and size of the wire)1000pcs/h(depending on the length and size of the wire)
Display Method10 inch true color touch screen
FunctionWire and cable automatic cutting and stripping
Wire TypeCable wires,sheathed wires,new energy wires, etc.
Cut Length10mm-99999.99mm
Cutting ToleranceWithin 0.002*L (L=cutting length)
Stripping LengthFront stripping:1-1000mm
 End stripping:1-300mm
Blades MaterialHigh-quality imported high-speed steel
Power Supply200V 50HZ/11.7KW
Drive ModeWire feeding: 32 rollers, each set of independent servo drive
 Tool holder: double servo plus double lead screw
Feeding MethodBelt feeding, no embossing or scratches on the cable
Number of Stripping Blades4 pieces
