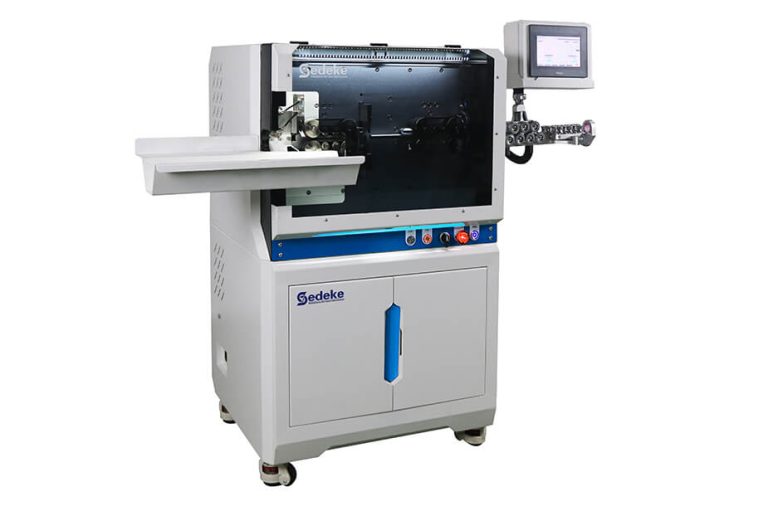

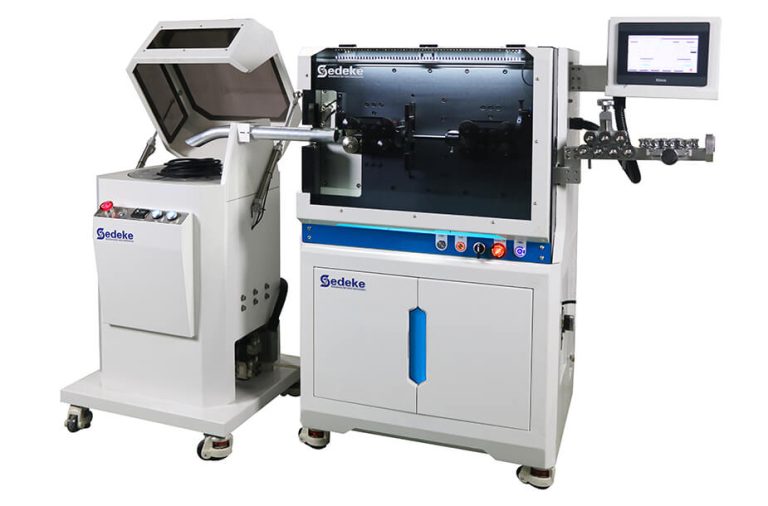

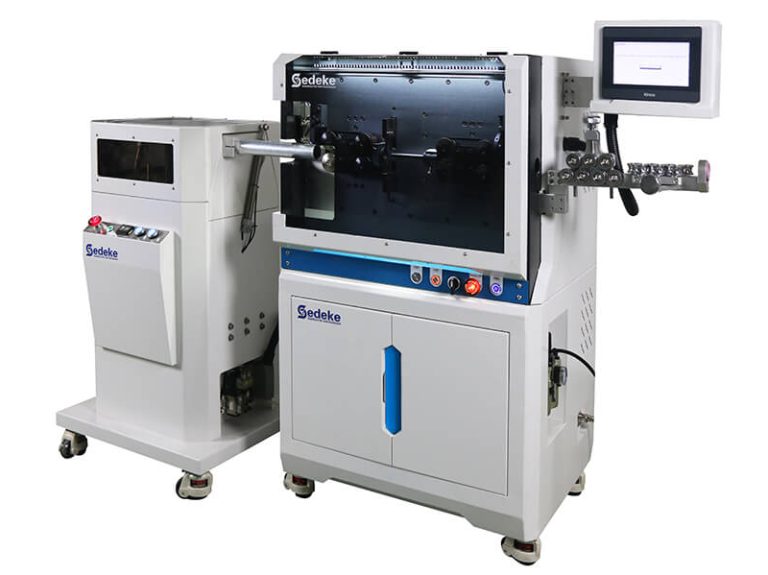

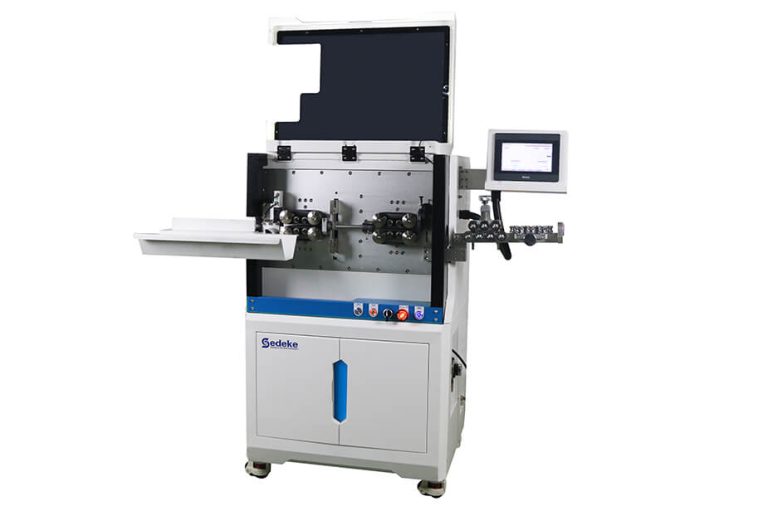

ESC-BX30Y is an automatic wire cutting and stripping machine to cut and strip wires from 1mm2 to 30mm2. And it equip with electric control chassis and wire coiling machine.
It has greatly improved production efficiency.
| Display | 7 inch touch screen |
| Function | Electric Wire and Cable, Automatic cutting and stripping |
| Cable type | Wire, Cable, PVC, BVR, PU etc. |
| Stripping range | 0.75-30mm² |
| Cutting length | 1-99999.99mm |
| Cutting tolerance | Less than 0.002*L(L=Cutting length) |
| Stripping length | Front full stripping: 1- 120mm; Front half stripping:1-1500mm |
| End full stripping: 1- 100mm; End half stripping: 1-300mm | |
| Max diameter of the conduit | Φ18mm |
| Blade material | High quality imported high speed steel |
| Production efficiency(pcs/h) | 3500PCS/h(depending on length and size of the wire) |
| Driving method | 16 wheels driven(silent hybrid stepping motor,servo tool rest) |
| Feeding method | Belt feeding wire, no embossing, no scratches |
| Remarks | Special cable can be customized, Need to send a sample wire for testing |
| Power | AC220V 50/60Hz |
| Dimensions(L*W*H) | 68*48*135m |
| Net weight | 140kg |
