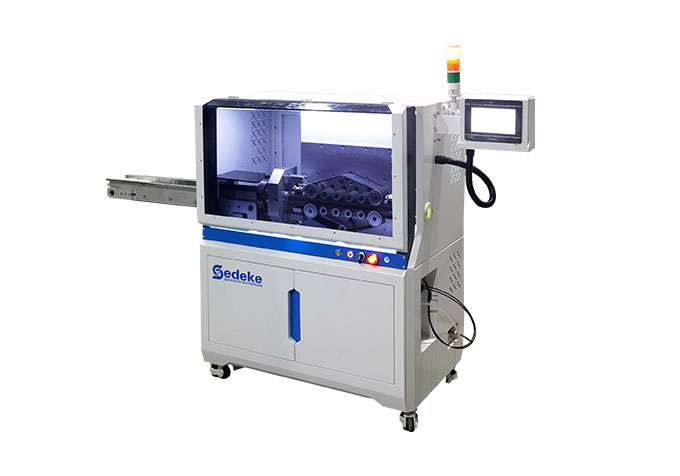

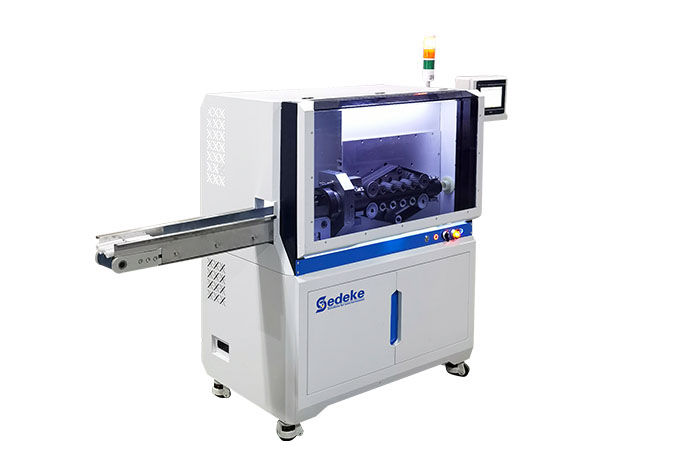

Description of Multifunctional Automatic Cutting Machine
Sedeke EC-890 automatic cutting machine adopts the rotary cutting method, mainly processing hard tubes such as hard plastic tubes and honeycomb pipes with high speed, efficiency, and accuracy.
Sedeke EC-890 automatic cutting machine adopts the rotary cutting method, mainly processing hard tubes such as steel wire armoured cable, metal tubes with high speed, efficiency, and accuracy.
Features of Multifunctional Automatic Cutting Machine
Model name | EC-890 | EC-890 |
Cutter power | 0.4KW | 1KW |
Control system | motion control board plus man-machine interface | |
Cutting method | rotary cutting | |
Feeding motor | stepper motor | |
Feeding method | track feeding | |
Feed stroke | 50mm | |
Power supply | 220V 50-60HZ | |
Air pressure | 0.5-0.7Mp | |
Power | 2000W | |
Cutting diameter | ø1-ø30mm | |
Cutting accuracy | ±0.5+(L*0.003) | |
Speed | 20-100 pieces/minute | |
Dimension | 1020X530X1300mm | |
Weight | about 270Kg |
