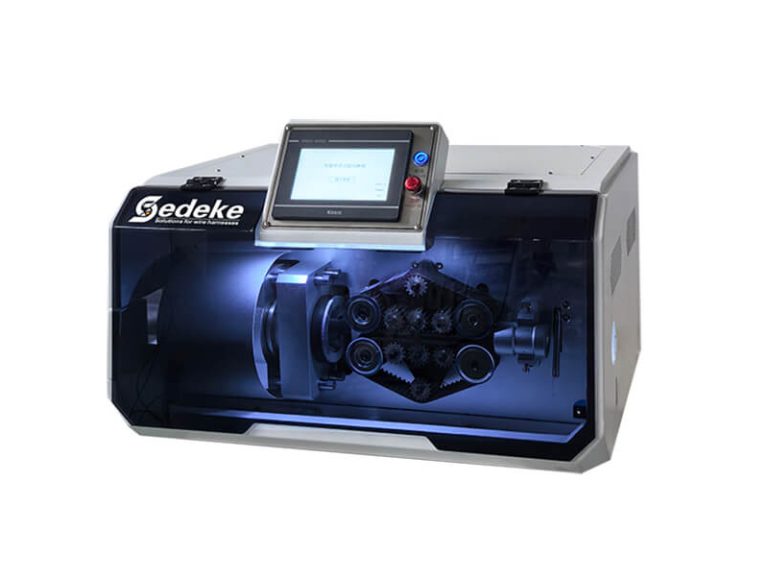

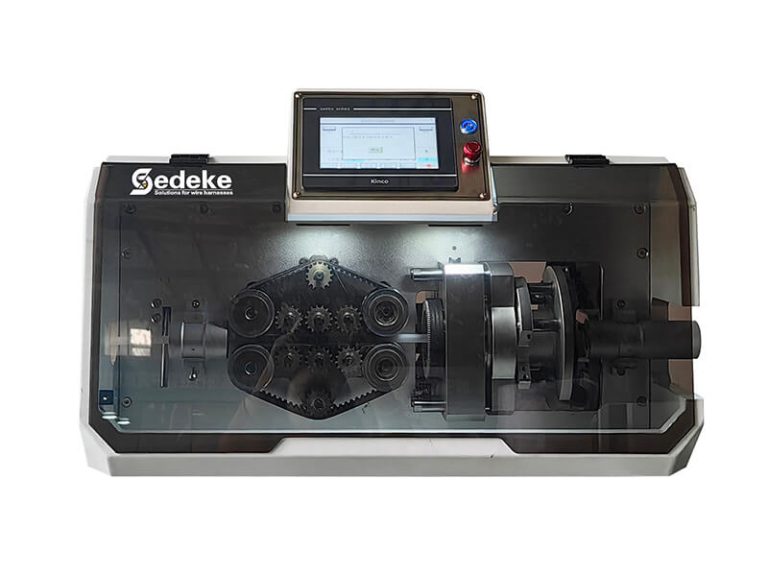

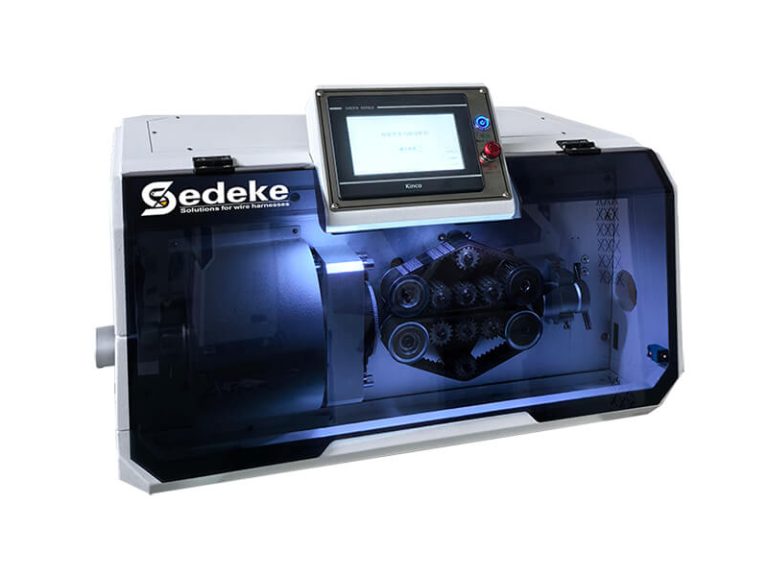

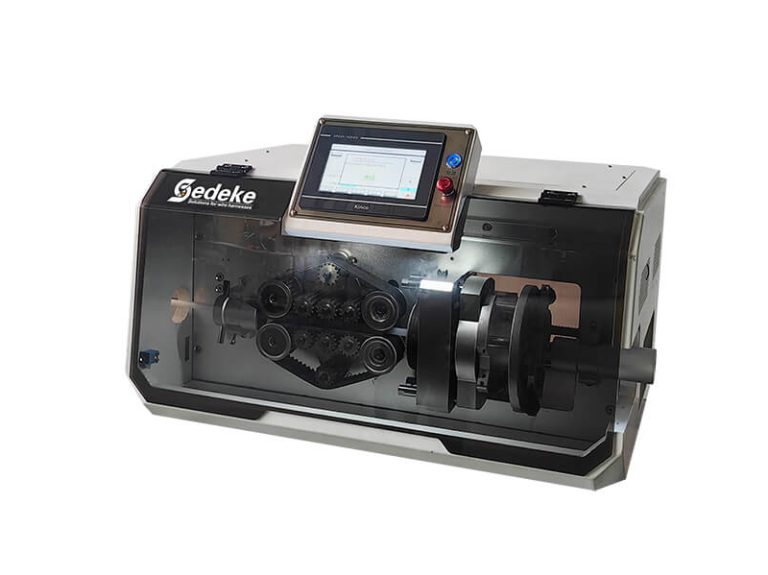

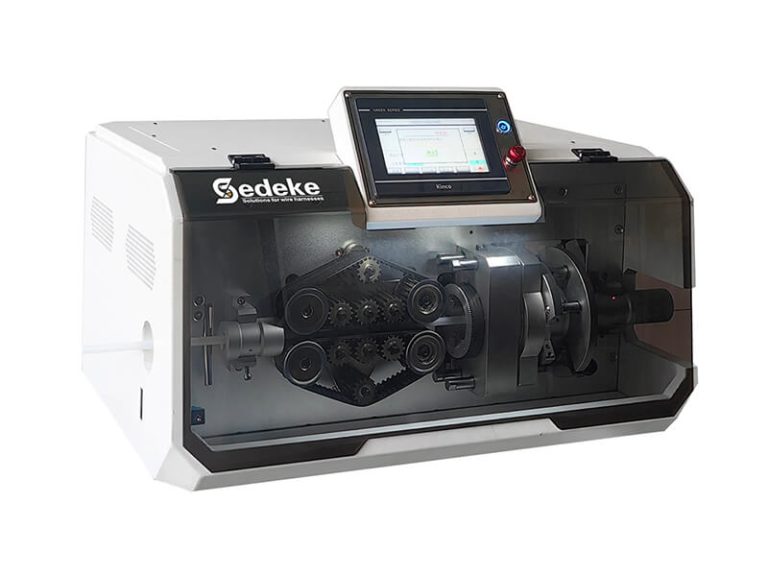

Sedeke EC-850X automatic cutting machine adopts the rotary cutting method, mainly processing tubes such as Honeycomb tubes, paper tubes, PVC hard tubes and other tubes with a wall thickness of less than 5mm. This tube cutting machine can process tube diameter from 10 to 50mm.

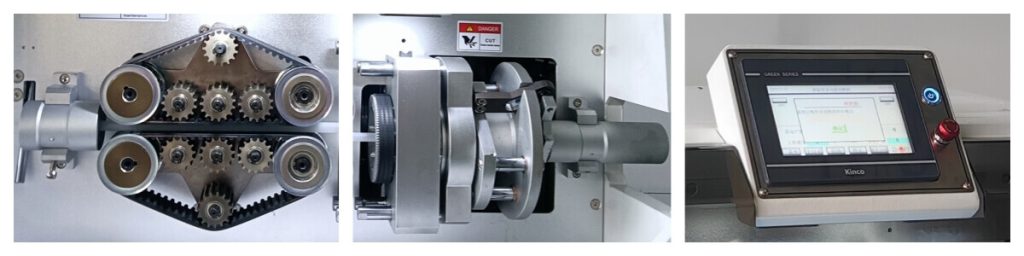

If the cutting length is 200 mm, the tolerance value can be within 0.2 mm, and the efficiency is 9,000 pieces per hour. This cutting machine adopts a rotary cutting mechanism, which can make the tube cutting edges smoother and burr-free. Work efficiency and accuracy are improved.
Sedeke EC-850X automatic cutting machine adopts the rotary cutting method, mainly processing tubes such as Honeycomb tubes, paper tubes, PVC hard tubes and other tubes with a wall thickness of less than 5mm. This tube cutting machine can process tube diameter from 10 to 50mm.
If the cutting length is 200 mm, the tolerance value can be within 0.2 mm, and the efficiency is 9,000 pieces per hour. This cutting machine adopts a rotary cutting mechanism, which can make the tube cutting edges smoother and burr-free. Work efficiency and accuracy are improved.
| Model | EC-850X |

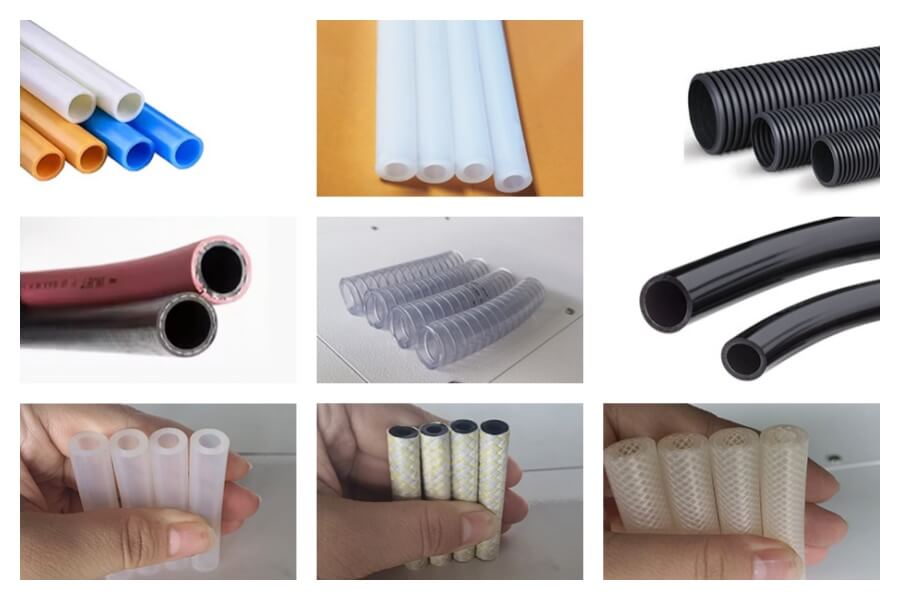

| Applicable cutting materials | Honeycomb tubes, paper tubes, PVC hard tubes and other tubes with a wall thickness of less than 5mm. |
| Processing range | Outer diameter ø10-ø 50mm |
| Cutting method | Rotary cutting |
| Cutting length | 1-99999.99mm |
| Cutting olerance | L*0.005(L=cutting length) |
| Power capacity | 1050 W |
| Power connection | 220V 50/60HZ |
| Air supply | Not required |
| Cutter power | 400 W |
| Speed | 20-100 pcs/minute (depending on cutting length and material) |
| Weight | 90kg |
| Dimensions(L*W*H) | 815*610*500mm |
