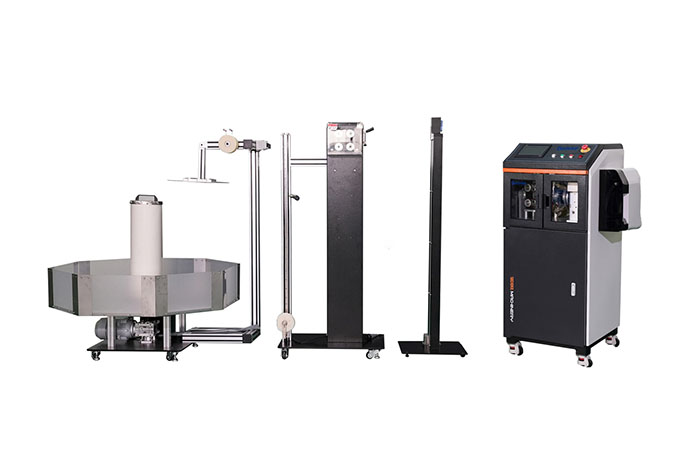

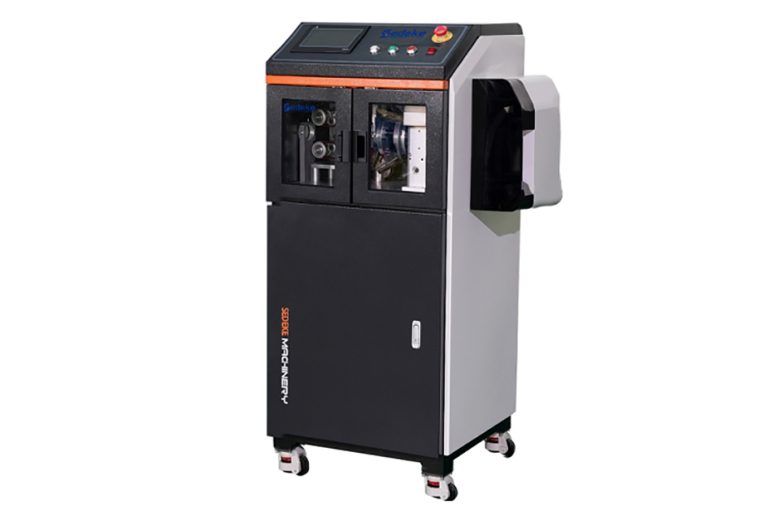

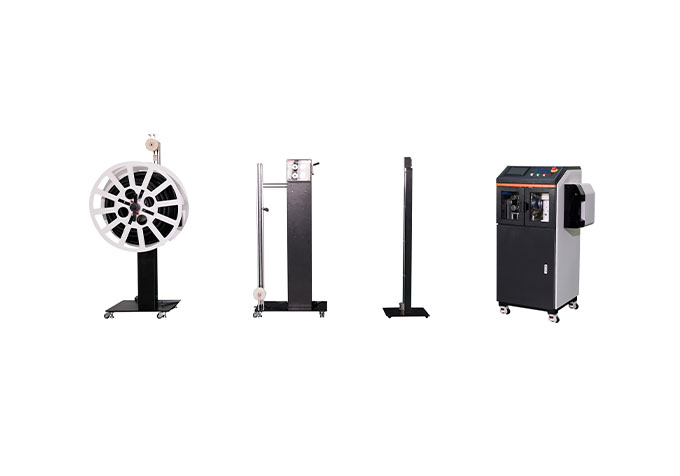

EC-821 Corrugated Tube Cutting Machine

  • Special gear or belt feeding system
  • Advanced rotary cutting mechanism
  • Telescopic cutting head, laser light barrier for positioning
  • Servo controlled system. No need to set or adjust manually
Share

DESCRIPTION

Description Of Corrugated Tube Cutting Machine

EC-821 Corrugated Tube Cutting Machine is the crest cutting equipment which is developed for the wire harness protection material corrugated tube. EC-821 can ensure the corrugated tube’s notched surface smooth and accuracy length no more than one crest, which will realize artificial intelligence and parameterization.

1. Special gear or belt feeding system
2. Advanced rotary cutting mechanism
3. Telescopic cutting head, laser light barrier for positioning
4. Servo controlled system. No need to set or adjust manually

Application Fields Of Corrugated Pipe Cutting Machine

EC-821 corrugated pipe cutting machine is mainly applied to automotive wire harness corrugated tubes, new energy corrugated tubes, and air conditioning washing tube.

FEATURE

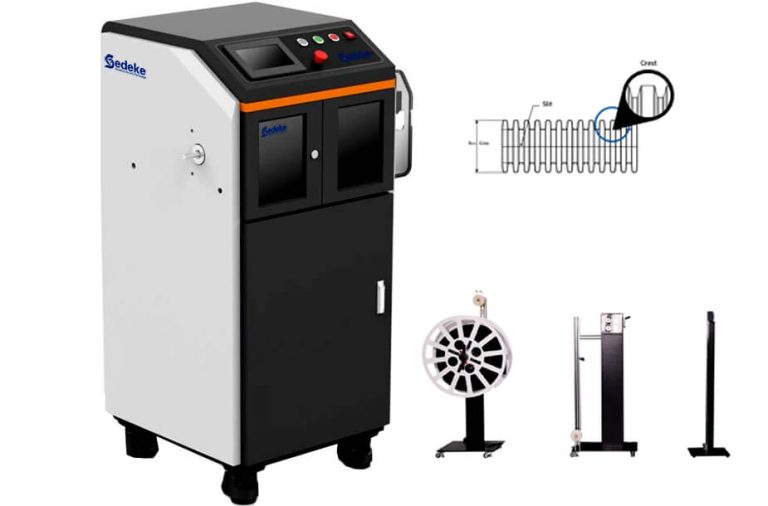

  • Cutting exactly on the peak/crest of the tubing
  • Special Gear or Belt feeding system
  • Advanced rotary cutting mechanism
  • Telescopic cutting head, laser light barrier for positioning
  • Servo controlled system, no need to set or adjust manually

PARAMETER

ModelEC-821
Electrical connection220 v / 50-60Hz
Outside diameter7.0-42mm O.D.
Cutting length5-9999.9 mm
Cutting accuracy±One crest
Feeding speed0-3m / s
Weight95 kg (gross)
Slitting unitIncluding
Dimensions (L x W x H)560x560x520 mm
Cutting technologyCutting exactly on the peak of the tubing
