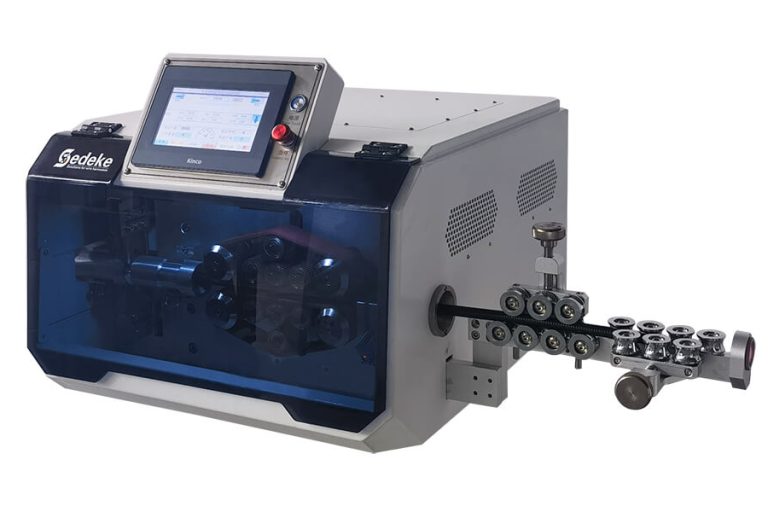

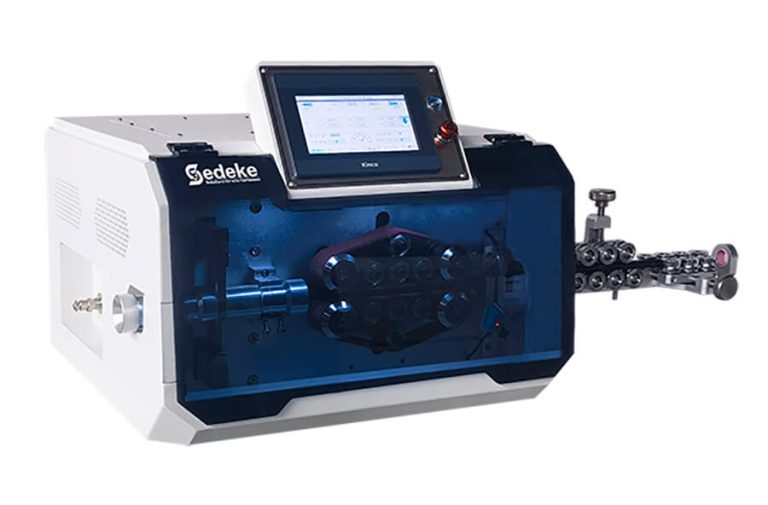

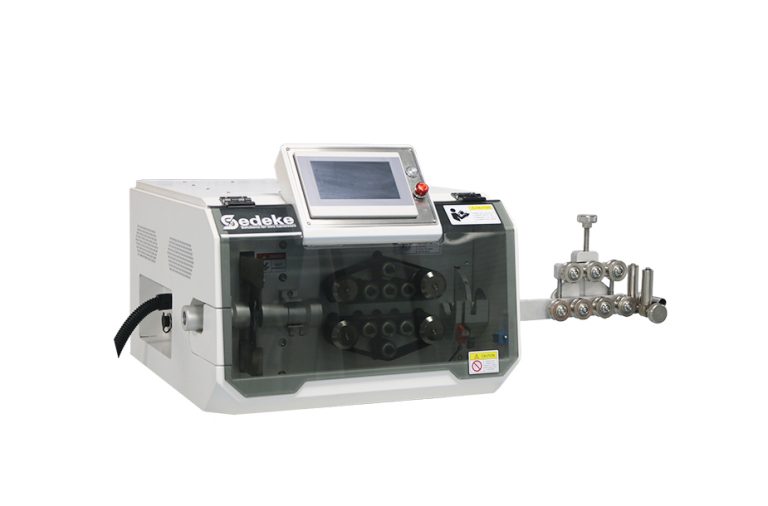

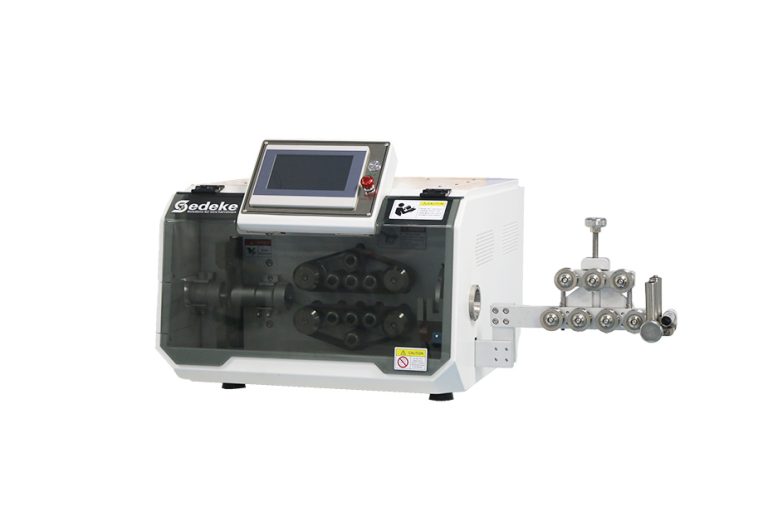

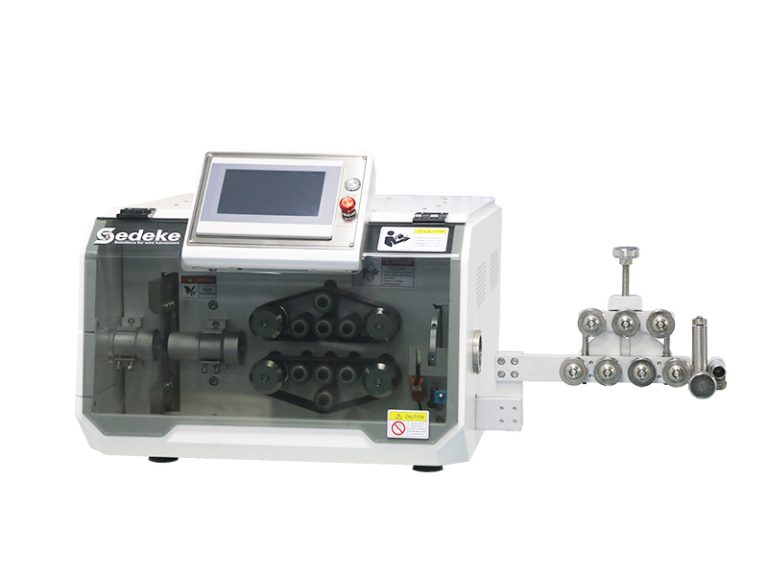

EC-810 Automatic Cable Cutting Machine

This EC-810 machine is designed to automatically cut all kinds of material including wire, cable, round material such as tubing, flat ribbon and Glass Fiber Optic (GOF) cable. This flexible cutting machine processes wire up to150mm², up to 33mm O.D. It also has the function of stripping cables for one side.
Share

FEATURE

This EC-810 machine is designed to automatically cut all kinds of material including wire, cable, round material such as tubing, flat ribbon and Glass Fiber Optic (GOF) cable. This flexible cutting machine processes wire up to150mm², up to 33mm O.D. It also has the function of stripping cables for one side.

PARAMETER

ModelEC-810
Stripping range1-150mm²
Cutting length1-99999.99mm
Cutting toleranceCables:<0.002*L / Tubes:<0.003*L (L=Cutting length)
Stripping lengthFront Side: 1-800mm ; Rear Side: No Stripping
Max. diameter of the conduit  Φ33 mm
Blade materialHigh quality imported high speed steel
Production efficiency1800pcs/h (depending on length and size of the wire)
Power supply220V/50HZ 1.6KW

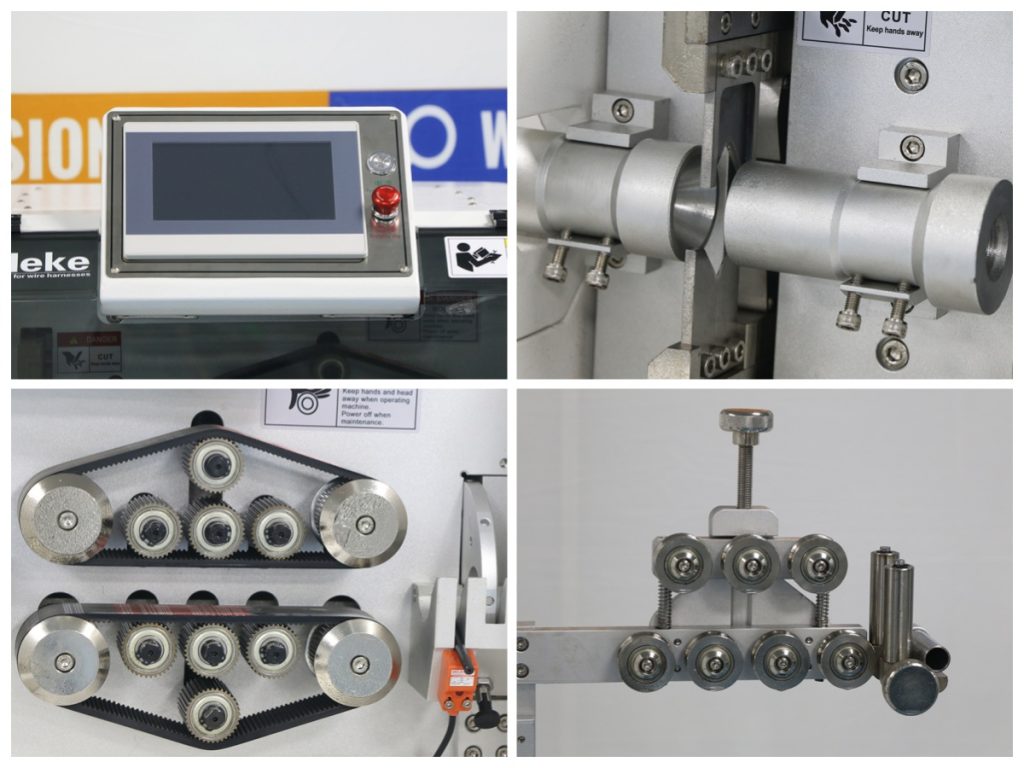

Feeding methodBelt feeding cable, no embossing, no scratches
Display7 inch touch screen
