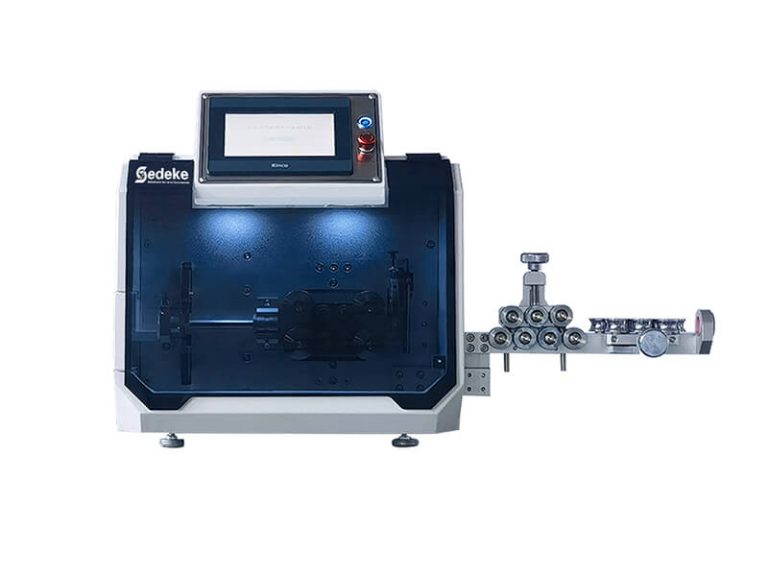

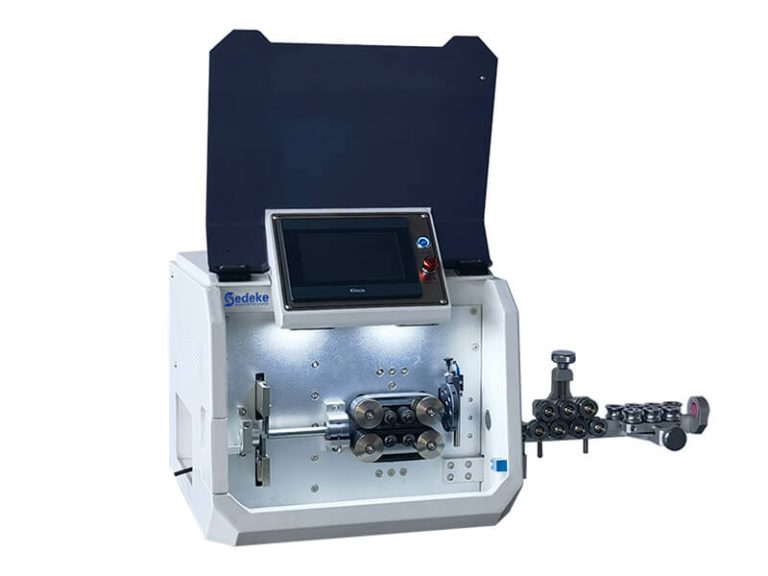

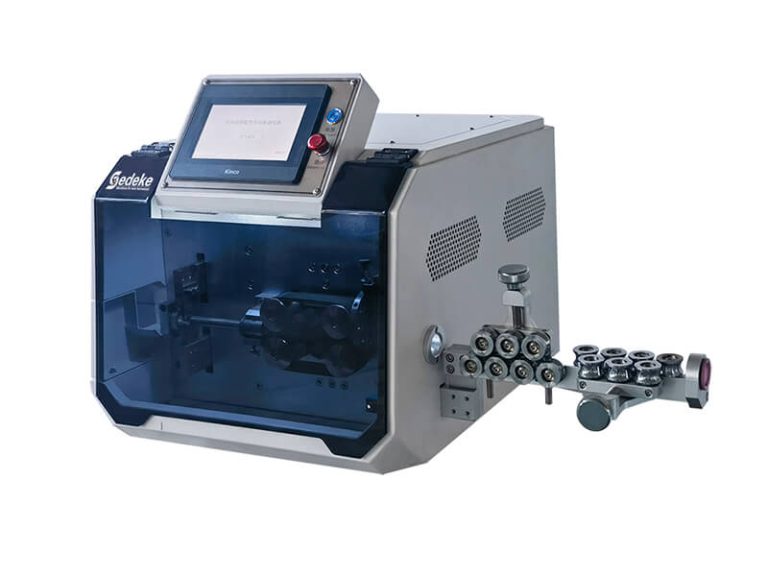

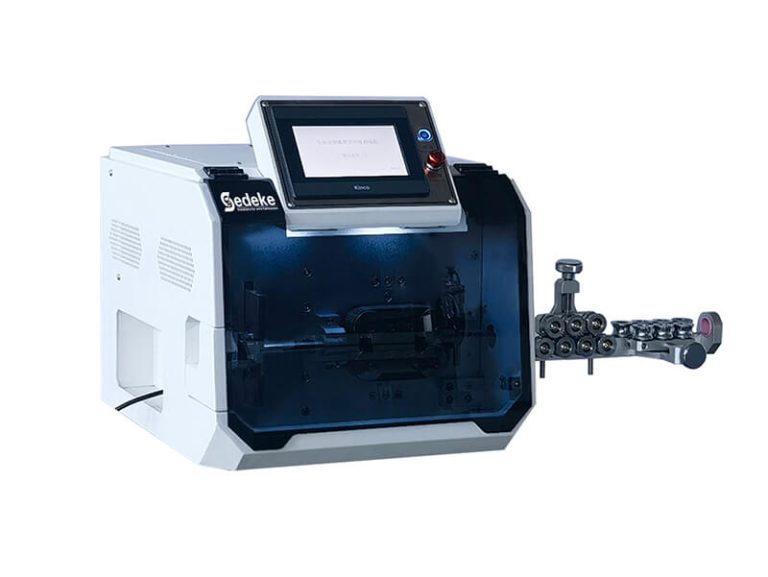

EC-805 Automatic Cable Cutting Machine

  • EC-805 cutting machine, an automated solution designed to cut a variety of materials including wires, cables, tubing, flat ribbon, and Glass Fiber Optic (GOF) cables.
  • Capable of handling wires up to 30mm² and materials up to 18mm outer diameter with precision and flexibility.
  • Equipped with advanced technology and a user-friendly interface, the EC-805 cutting machine is the ideal solution for businesses looking to streamline their cutting processes.
  • Its robust construction ensures durability and longevity, making it a dependable solution for all your cutting needs.
  • Easy to set up and operate, and its intuitive interface allows users with little to no experience in cutting to operate it with ease. Its compact design ensures it can be easily integrated into any workspace, making it an excellent addition to your production line.
Share

FEATURE

1. EC-805 cutting machine, an automated solution designed to cut a variety of materials including wires, cables, tubing, flat ribbon, and Glass Fiber Optic (GOF) cables.
2. Capable of handling wires up to 30mm² and materials up to 18mm outer diameter with precision and flexibility.
3. Equipped with advanced technology and a user-friendly interface, the EC-805 cutting machine is the ideal solution for businesses looking to streamline their cutting processes.
4. Its robust construction ensures durability and longevity, making it a dependable solution for all your cutting needs.
5. Easy to set up and operate, and its intuitive interface allows users with little to no experience in cutting to operate it with ease. Its compact design ensures it can be easily integrated into any workspace, making it an excellent addition to your production line.

PARAMETER

Model 100 mm
Display7 inch touch screen
Processing range0.25-30mm2
Cutting length1-999999.99mm
Cutting tolerance<0.002*L (L=Cutting length)
Stripping lengthFront side: 1-200mm; Rear side: No stripping
Max. diameter of the conduitΦ18 mm
Blade materialHigh quality imported high speed steel
Production efficiency5500pcs/h(depending on length and size of the wire
Power supply220V/50HZ 1.6KW
Feeding methodBelt feeding cable,no embossing,no scratches
Dimensions480*605*520mm
Weight70KG
