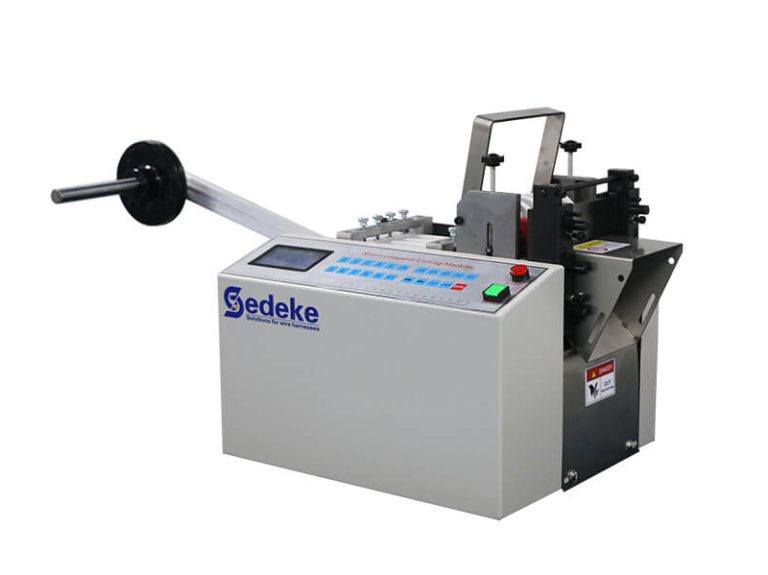

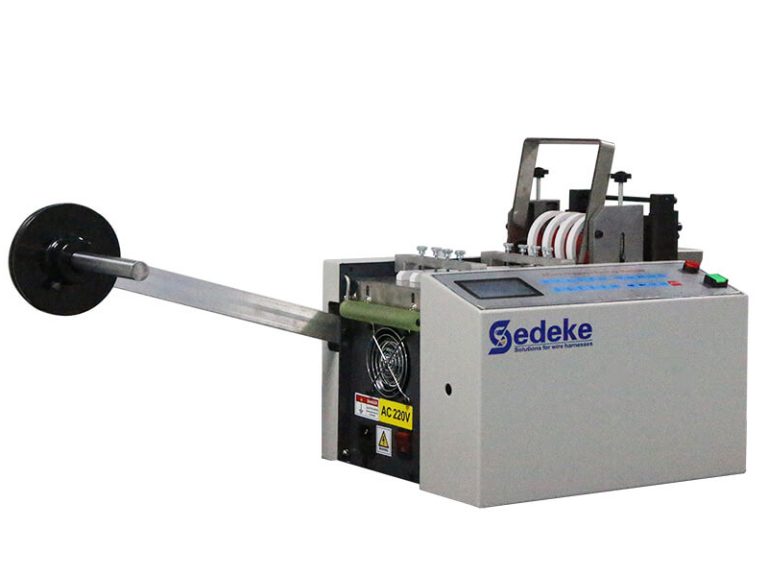

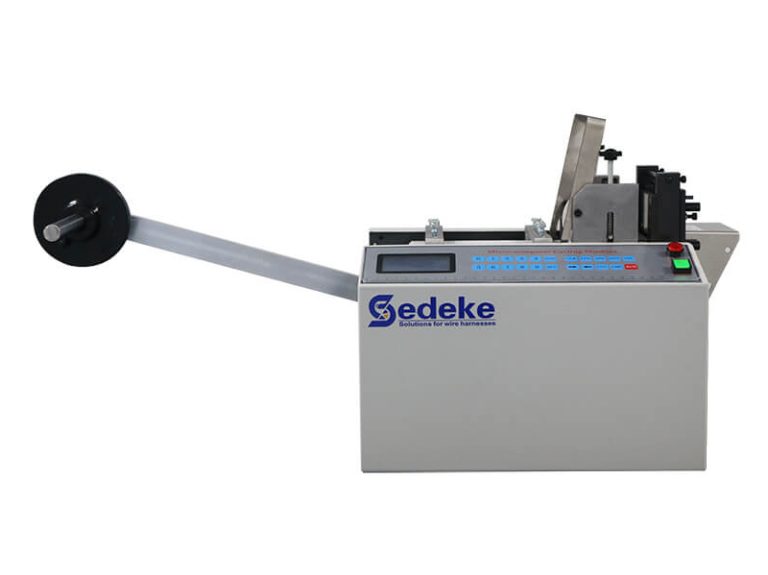

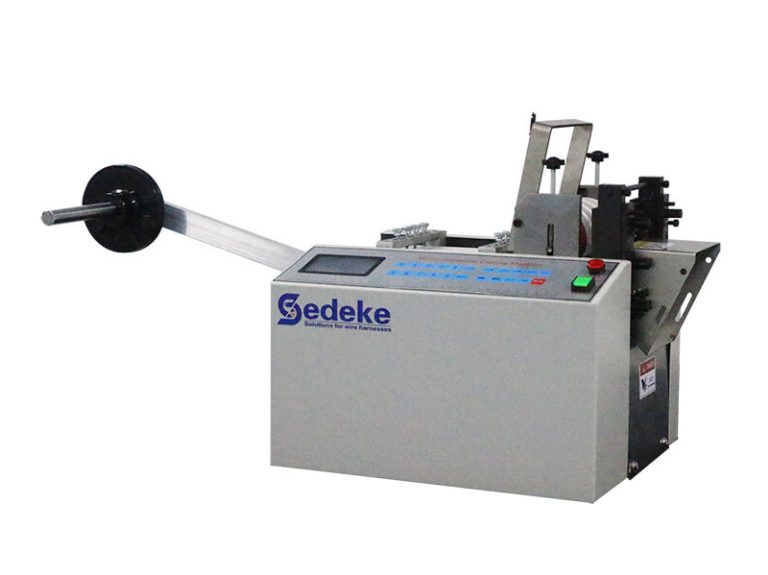

EC-3100 Automatic Cable and Tube Cutting Machine

Cutting Material: Shrink tube, Hose, Rubber, Tin/Copper plate, wire, Braided wire, Paper, Silicon tube, Film, Vinyl, etc.

Cutting Length: 1mm-99999mm

Cutting Width: 1-100mm

Share

FEATURE

Adopt high precision stepper motor and drive chip, stable performance, precise cutting;
High definition LED large screen display, batch pause, length compensation, one key reset, etc., clear at a glance, simple and convenient operation;
Reset function: one key can be restored to the factory Settings, no need to worry about the chaotic operation of the machine;
Compensation function: when there is an error between the cut size and the actual size, the compensation function can be used to increase or reduce the size to the standard size;
It is equipped with various manual operation, such as total amount setting, divided handle setting, and adjustable pause time of divided handle, which is convenient for debugging.

PARAMETER

Cutting MaterialShrink tube, Hose, Rubber, Tin/Copper plate, wire, Braided wire, Paper, Silicon tube, Film, Vinyl, etc.
Max. Cutting Length1mm-99999mm
Cutting Width1-100mm
SpeedL=50mm, 120-150pcs/Min
Power Supply220 VAC , 50/60 Hz
Power Consumption (Watt)1000W
Dimension(W x D x H)L500*W300*H350mm
Weight38kg
