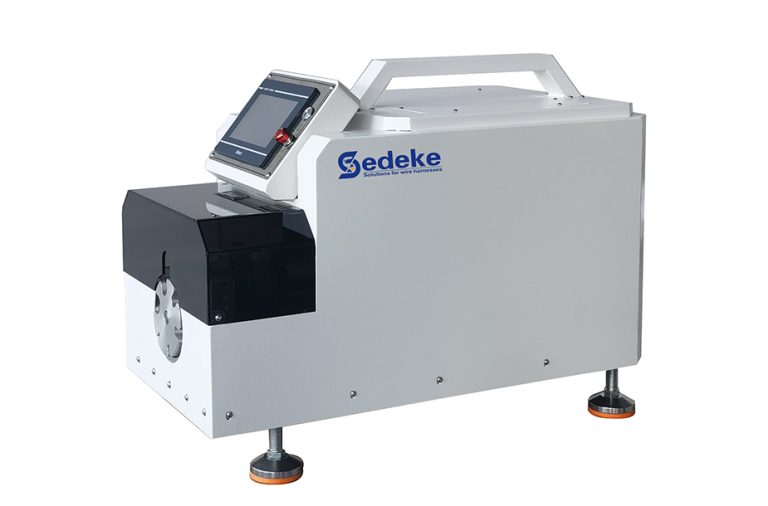

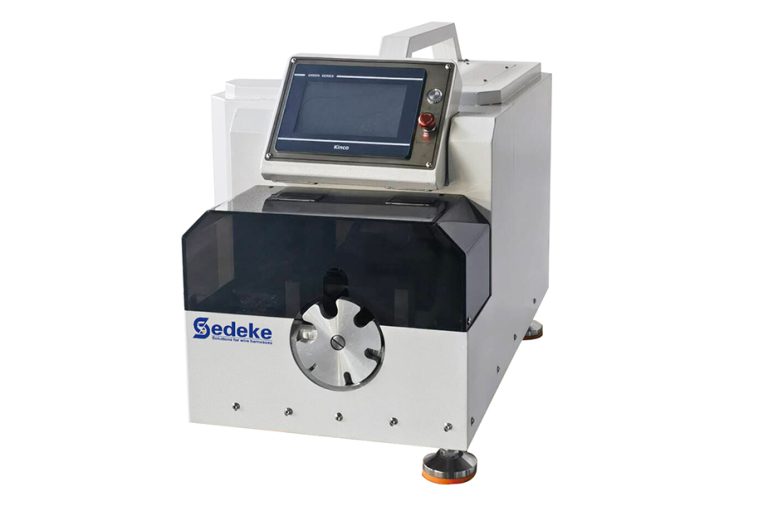

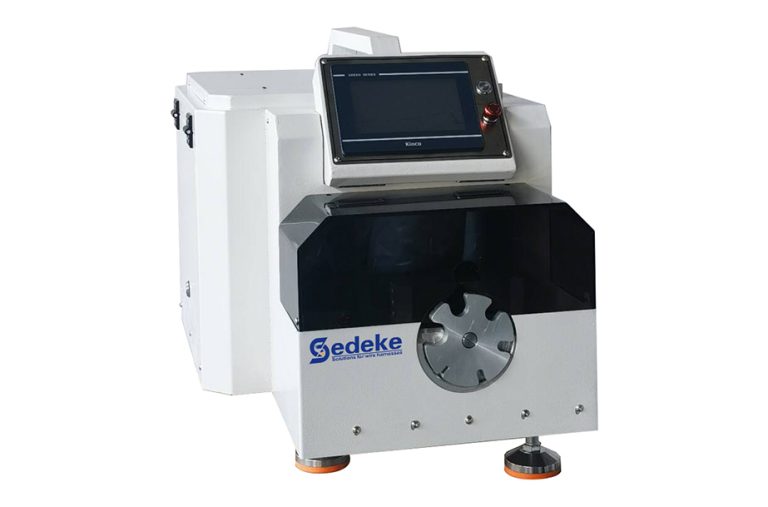

CS Series Rotary Cable Stripping Machine

  • Large diameter cables are available
  • Strong stripping ability
  • Using special axial positioning and double rotating blades cutter, high precision rotation
  • Good performance and high cost performance
Share

FEATURE

1. Large diameter cables are available
2. Strong stripping ability
3. Using special axial positioning and double rotating blades cutter, high precision rotation
4. Good performance and high cost performance

PARAMETER

ModelCS-100CS-300
Stripping Length0-100mm0-300mm
Stripping Diameterø5-ø25mmø12-ø50mm
Weight80Kg160Kg
Cutting Stroke0-28mm0-34mm
Stripping Tolerance±0.2
Speed10-30 pcs /min
Power500W
Stripping Stroke ControlDigitally adjusted
Control SystemPLC Touch Screen
Stripping ModeRotary cutting, motor plus wire rod stripping
Power Supply220V 50-60HZ
Air Supply  0.5-0.7Mp
Feed ModeDigital adjustable
Dimension900x400x420
