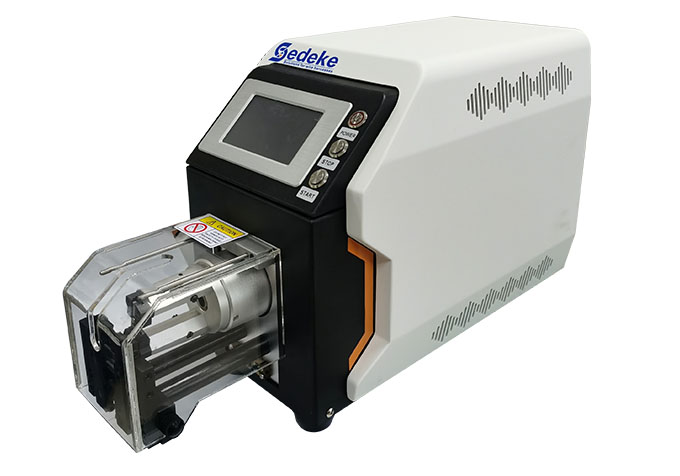

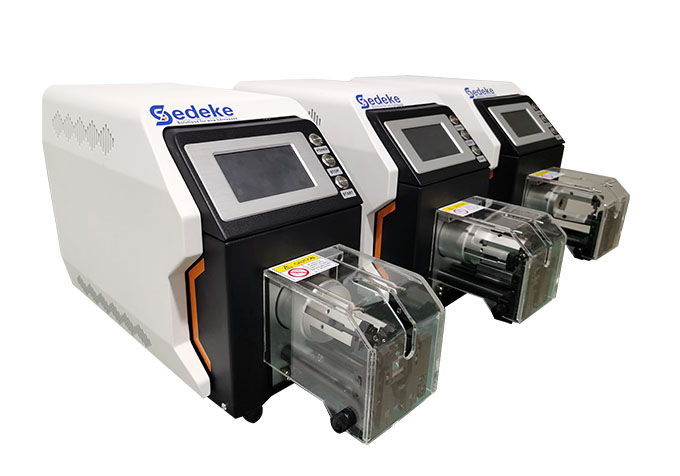

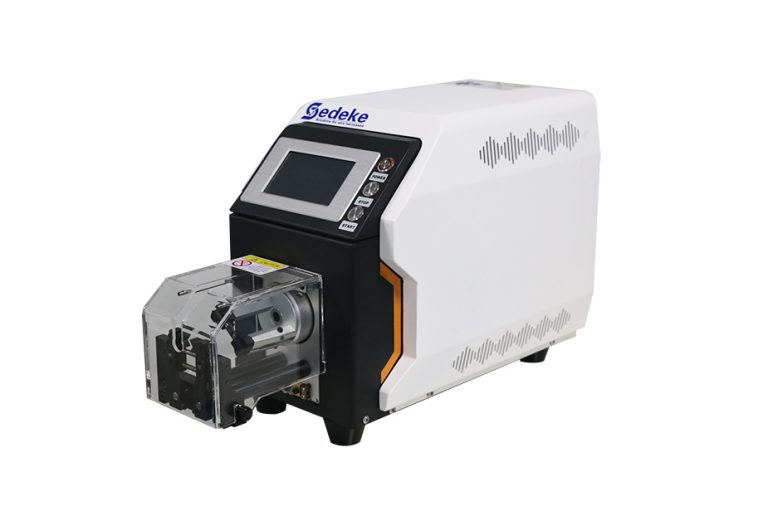

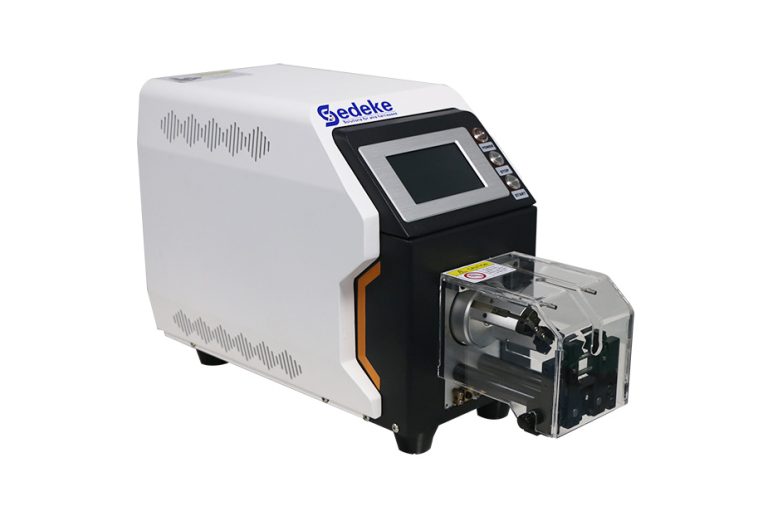

CS-5507 Automatic coaxial cable stripping machine

  • Max Processing diameter: 7 mm
  • Max. stripping length: 55mm
  • Min. stripping length: 0.1mm
  • Max. stripping layers: 10 layers
Share

DESCRIPTION

Automatic coaxial cable stripping machine is a machine that is designed to efficiently strip the outer layer and insulation of coaxial cables. This type of machine is typically used in industrial settings where large quantities of coaxial cables need to be processed quickly and accurately.

PARAMETER

Dimensions580*188*285mm
Weight  24KG
Max Processing diameter  7 mm
Max. stripping length55mm
Min. stripping length  0.1mm
Max. stripping layers10 layers
Cutting length unit  0.01mm
Drive way  Ball screw drive
Blade Materialimported tungsten steel
Program StorageMax. 99 programs can be saved
Startup modeManual / Pedaling(Optional)
Power220V 50/60HZ
