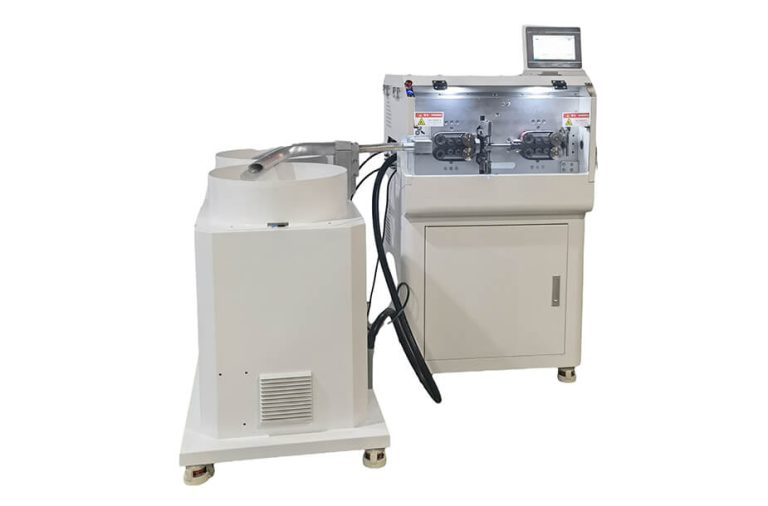

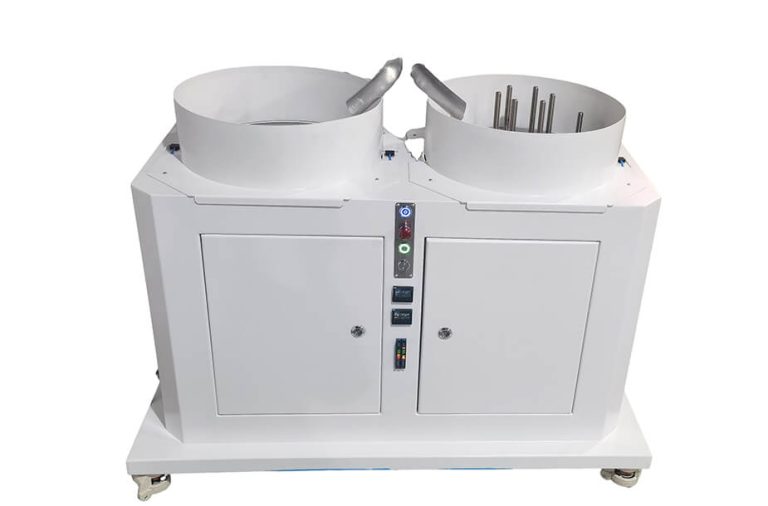

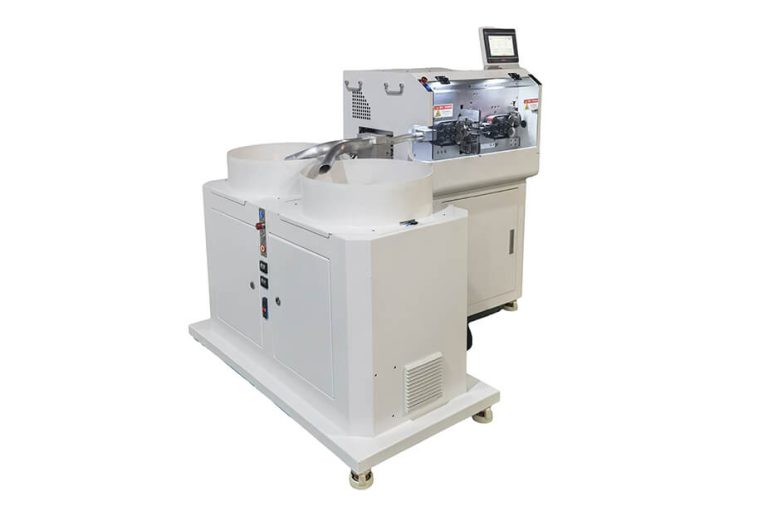

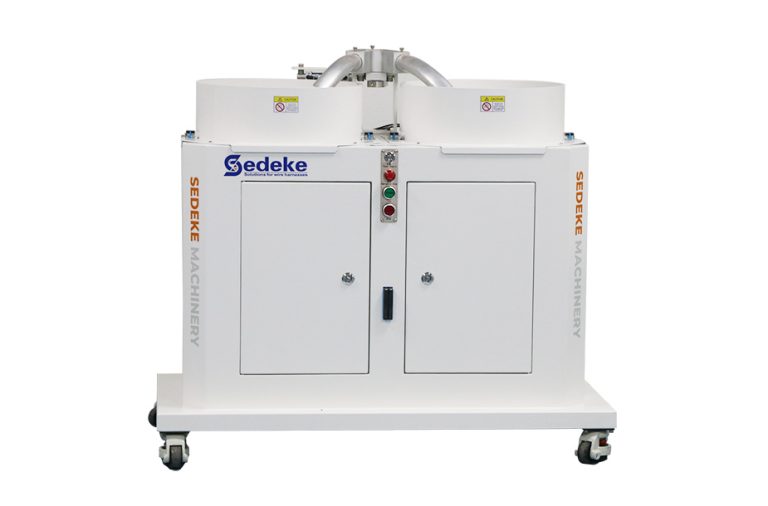

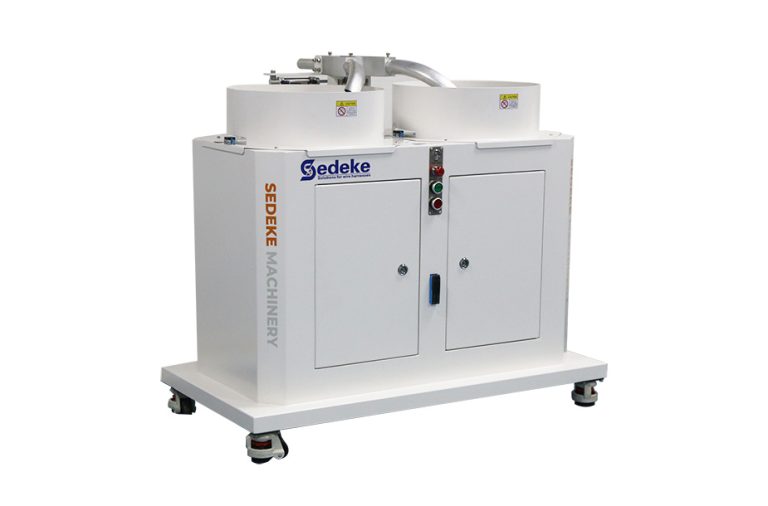

CC-380D double cable coiling machine is often used in conjunction with a cable cutting and stripping machine in order to efficiently manage cables. The CC-380D has two winding reels, which can improve work efficiency. After the cable has been cut and stripped, it needs to be coiled or spooled so that it can be easily transported or stored.
CC-380D double cable coiling machine is often used in conjunction with a cable cutting and stripping machine in order to efficiently manage cables. The CC-380D has two winding reels, which can improve work efficiency. After the cable has been cut and stripped, it needs to be coiled or spooled so that it can be easily transported or stored.
The wire coiling machine is designed to quickly and accurately coil the stripped cable. Using a cable coiling machine with a automatic cable stripping machine can increase productivity and reduce the amount of time and effort required to manage cables.
| Model | CC-380D |
| Display mode | Nixie tube |
| Function | Winding and coiling cables |
| Reel diameter | 2*380mm |
| Cable coiling diameter | 200-360mm |
| Cable coiling speed | 2M/s |
| Drive mode | Servo motor |
| Working mode | Single cycle / Fully automatic |
| Coiling completion detection | optical fiber |
| Dimensions | 570*1050*935mm |
