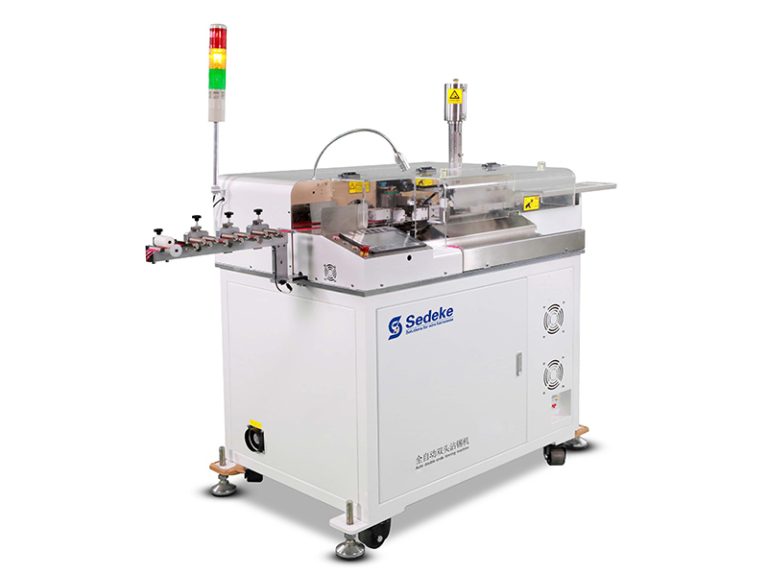

A automatic double-end tinning machine can realize the functions of wire cutting, single-end stripping, double-end stripping, double-end half-stripping, double-end twisting, single-end tinning, double-end tinning and other functions.
1.The machine `s drivers by Mitsubishi servo motors and reduction box. SMC pneumatic cylinders, so the Cutting / Stripping /tin Soldering positions can be precisely controlled.
2.The soldering smoke eater can take out the tin smoke in time to ensure the working environment is good for health.
3.The tin furnace of the automatic tinning machine is made of pure titanium and has a flat bottom. The tin furnace is environmentally friendly and easy to clean for a long time.
4.The machine is equipped with a vacuum waste absorption device to effectively ensure the clean and safe operation of the machine.
Suitable wire range: | AWG16-AWG30 |
Cutting length: | 10-600mm ; Customization: Max.1500mm |
Stripping length: | 0-15mm |
Cutting Accuracy: | ±(0.2%+1)mm |
Twisting length: | 3-15mm |
Tinning length: | 1-15mm |
Capacity: | AWG22-AWG30, can process 1-8 wires at the same time(the same AWG#), the production capacity is about 9000-11000 pieces/hour; AWG20-AWG18, 1-5 wires, about 4000-5500 pieces/hour ; AWG18-AWG16, 1-3 wires, about 2700-3000 wires/hour. |
Power supply | 220VAC single phase; 50 – 60 Hz |
Dimensions : | 1210x 770 x 1370 mm (L x W x H) |
Net weight | 400kg |
Air supply: | 0.5-0.7Mpa (5-7KG/m³) |
