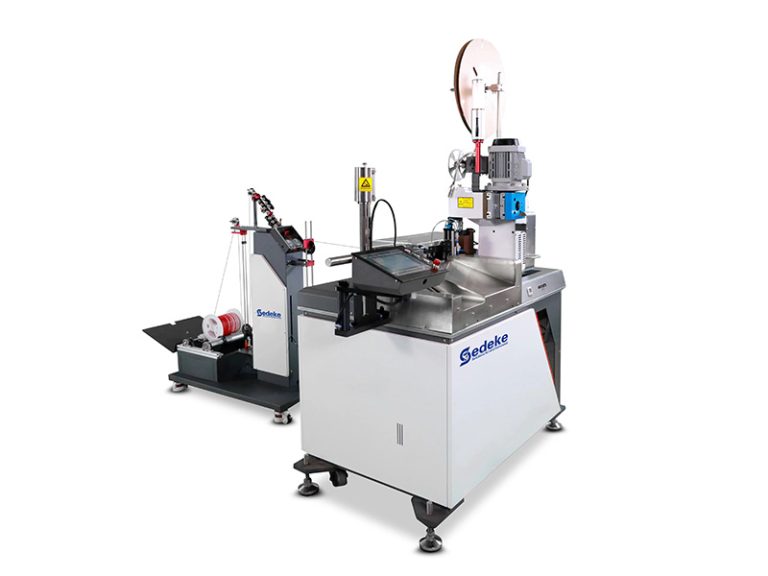

ACC-105 fully automatic single-head end-dipping tin machine can be used for multiple purposes, and can realize the functions of wire cutting, single-end punching, double-end stripping, single-end half-stripping, single-end twisting, and single-end tinning.
It is also called a tin-dipping machine or a single-head tin-dipping machine, which can also be called a "5-wire machine".
Power supply | 50/60HZ 220V single phase |
Processing length | 13mm(Full Length)-99999mm |
Wire processing wire range | Precision AWG#20-AWG32#(2 rounds of wire feeding) |
Large wire type AWG#18-AWG14# (4 rounds of wire feeding) | |
Wire processing wire range | 0.8/1.0/1.25/1.5/2.0/2.54 for horizontal and straight molds |
Capacity | 3000-3600 pieces/hour (100-600mm, tin dipped, no twisted wires) |
2200-2300 pieces/hour (100-600mm, tinned, twisted) | |
Stripping length | A end 0-10mm, B end 0-15mm |
Cutting accuracy | ±(0.2%*L+1)mm |
air pressure | 0.5-0.7Mpa (5-7KG/m³) |
Overall size | 1210*770*1370mm Matching pay-off frame size 920*560*1300mm |
Weight | About 400KG±15KG The weight of the matching pay-off frame is about 80KG |
