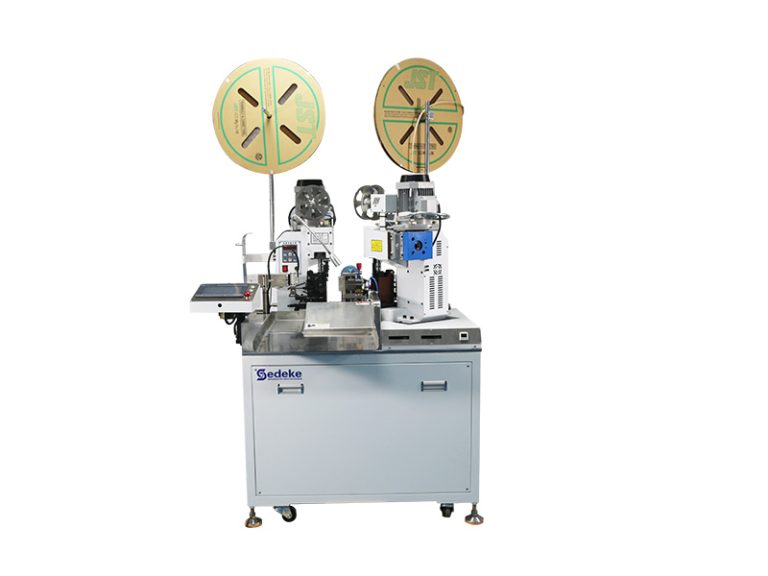

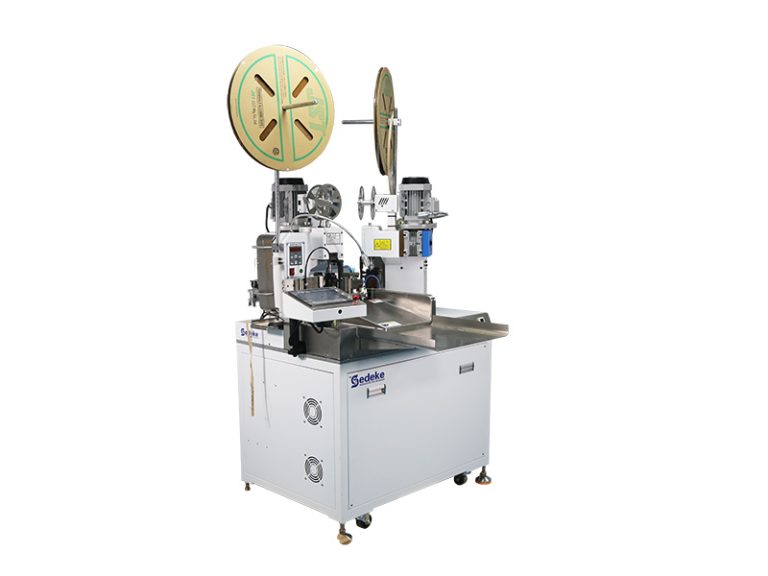

1. Double-ended terminal machine is controlled by stepper servo motor, fixed-size feeding wire is cut, both ends are stripped and both ends are crimped in one action, which can improve production efficiency.
2. Complete detection functions, automatic alarms for machine abnormality such as wire, end punching, and air pressure.
3. Adopts digital control interface , and the parameters can be adjusted, transformed and set by touch, which is faster.
4. Can be customized for partial closed continuous insertion terminals and single-grain terminals.
| Power supply | 50/60HZ 220V single phase |
| Processing length | 30mm (full length)～9999mm |
| Wire processing wire range | Standard machine: AWG#30-AWG#18 Customized: AWG#14-AWG#18 |
| Terminal Machinable Range | 1.25-3.96mm horizontal and straight molds are universal, suitable for flag molds, etc |
| Capacity | 3200pcs～3600pcs/hour (30mm～200mm full length) |
| Stripping length | A end 0-6mm B end 0-8mm |
| Cutting accuracy | ±（0.2%*L+1）mm |
| Air pressure | 0.5-0.7Mpa (5-7KG/m³) |
| Dimensions | 1000*1700*1550mm |
| weight | About 450KG±15KG |
